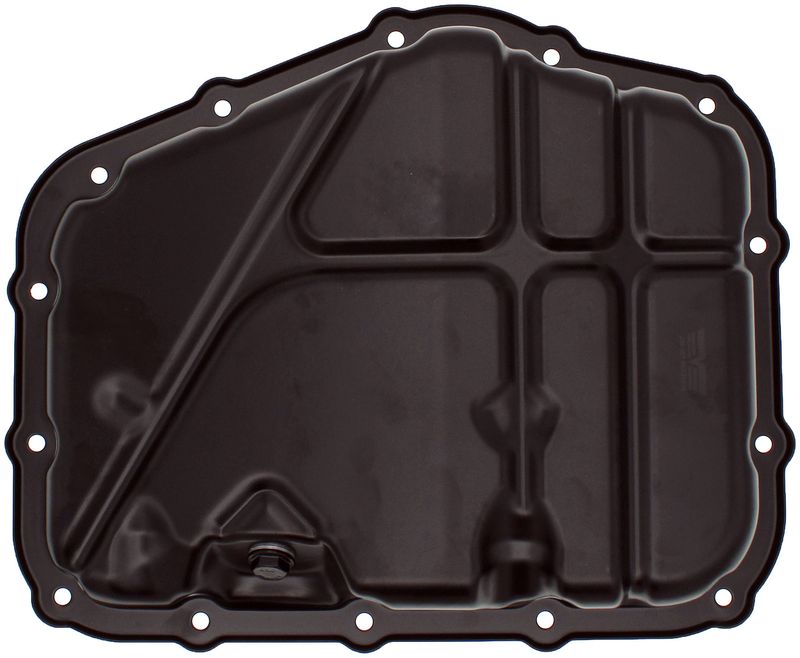

Dorman 266-001 Engine Oil Pan - Lower

Engine Oil Pan for Nissan Altima, Rogue, and X-Trail

This Dorman engine oil pan is a direct-fit replacement for select Nissan models with a lower engine position. Built from steel with a painted black finish, it matches original equipment dimensions and includes a drain plug for serviceability. Part number 266-001 is made for drivers replacing a leaking or damaged oil pan on the Nissan Altima, Rogue, or X-Trail.

Key Features

• Steel construction for OE-style strength and fit
• Painted black finish for corrosion resistance and a factory-style appearance
• Center sump, wet-sump design
• Drain plug included for routine oil changes
• Precision-engineered replacement for specific Nissan applications
• Compatible with 2019-2025 Nissan Altima, lower
• Compatible with 2021-2023 Nissan Rogue, lower
• Compatible with 2023-2025 Nissan X-Trail, lower

Detailed Description

Dorman 266-001 is an engine oil pan designed to replace the original pan on select Nissan vehicles. It is built from steel, measures 15.3 inches long and 8.2 inches wide, and uses a center sump layout with a wet-sump configuration. The pan has 14 mounting holes, a drain thread size of M12x1.25, and a maximum depth of 2 inches, helping it align with the factory mounting and service points on the listed applications. This part cross-references Nissan OE numbers 111106CA0B and 111106RA0B for the same application.

Common Problems It Can Help Solve

• Engine oil leaking from a cracked or rusted pan
• Damaged drain threads that prevent proper sealing
• Oil loss caused by impact damage to the lower engine area
• Corrosion or wear on the original stamped steel pan
• Service issues related to a warped or distorted oil pan flange

Installation Notes and Tips

Verify the vehicle’s engine configuration and lower oil pan application before installation. Clean the mating surface thoroughly, inspect the drain plug sealing area, and replace the gasket or seal if required by the vehicle service procedure, since gasket or seal is not included. Confirm drain thread size M12x1.25 and use the correct torque specification during installation. This part is listed for 2019-2025 Nissan Altima, 2021-2023 Nissan Rogue, and 2023-2025 Nissan X-Trail.

Quality Assurance

Dorman manufactures this oil pan as a standard replacement part engineered to match original equipment fit and function on the specified Nissan applications. Part number 266-001 is built for direct replacement use on the listed vehicles.
