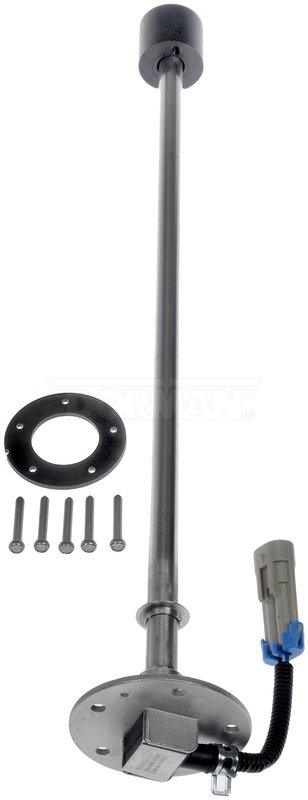

Dorman 285-5107 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Accurate Fuel Level Readings

The Dorman 285-5107 Fuel Tank Sending Unit is designed to provide precise fuel level measurements for your vehicle. Featuring a blade terminal type with two terminals and a female plug connector, this unit ensures seamless electrical connections and reliable performance.

• Blade terminal type with 2 terminals for secure connections
• Includes wiring harness and gasket for proper installation
• Fuel pump not included, designed specifically as a sending unit
• Ohm resistance values: 241 ohms empty, 33 ohms full for accurate fuel level sensing
• Package contains 1 level sensor, 1 gasket, and mounting bolts

Technical Details and Compatibility

The Dorman 285-5107 Fuel Tank Sending Unit is engineered to meet OEM specifications, providing consistent and accurate fuel level readings. The included wiring harness simplifies installation, while the gasket ensures a proper seal to prevent leaks. With a female plug connector and blade terminals, this sending unit is compatible with a range of vehicles requiring a two-terminal fuel level sensor. The resistance values of 241 ohms when empty and 33 ohms when full allow the vehicle’s fuel gauge to display precise fuel levels.

Common Applications and Problem Resolution

• Resolves inaccurate or fluctuating fuel gauge readings
• Replaces faulty or damaged fuel tank sending units
• Prevents fuel gauge from showing empty when tank is not empty
• Eliminates erratic fuel level sensor behavior due to wiring issues
• Ensures proper communication between fuel tank and dashboard gauge

Installation Notes and Tips

Before installation, verify compatibility with your vehicle’s make and model to ensure proper fitment. Handle the sending unit carefully to avoid damaging the float arm or electrical terminals. Use the included gasket to create a secure seal and prevent fuel leaks. Ensure all electrical connections are clean and secure to maintain accurate fuel level readings.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed industry standards for quality and durability. The 285-5107 Fuel Tank Sending Unit undergoes rigorous testing to ensure reliable operation. Please refer to Dorman’s warranty policy for specific coverage details.
