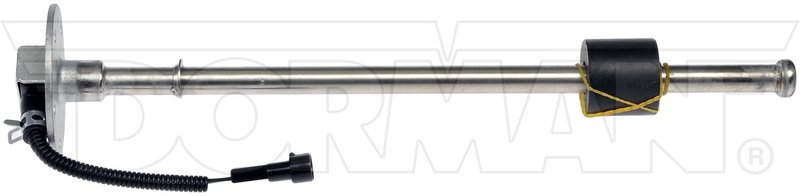

Dorman 285-5217 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Accurate Fuel Level Readings

The Dorman 285-5217 Fuel Tank Sending Unit is designed to provide precise fuel level measurement for your vehicle. Engineered with quality components, this fuel sender ensures consistent performance and compatibility with various automotive applications.

• Length: 13.681 inches for proper fitment
• Wire colors: Black and Red for easy identification
• Wiring harness length: 6 inches with 18-gauge wire
• Connector: Black oval-shaped female connector with blade terminals
• Includes gasket for secure tank seal with 2.625-inch outside diameter
• Resistance range: 246 ohms empty, 30 ohms full for accurate fuel level readings
• Package contents: 1 fuel sender, 1 gasket, 5 stainless steel screws
• Fuel pump not included

Detailed Description of Dorman 285-5217 Fuel Tank Sending Unit

This fuel tank sending unit from Dorman is built to deliver reliable fuel level data to your vehicle’s gauge. The unit measures 13.681 inches in length, making it suitable for specific fuel tanks requiring this dimension. It features a black and red wire configuration with an 18-gauge wire size, ensuring proper electrical conductivity and durability. The connector is a black oval-shaped female type with two blade terminals, designed for secure and stable connections. The included gasket with a 2.625-inch outside diameter helps maintain a tight seal to prevent fuel leaks. The resistance values of 246 ohms when empty and 30 ohms when full provide accurate fuel level readings to the vehicle’s dashboard. This sending unit does not include a fuel pump or wiring harness, focusing solely on fuel level measurement.

Common Applications and Issues Addressed

• Replaces faulty or inaccurate fuel tank sending units causing incorrect fuel gauge readings
• Solves issues with fuel gauge stuck on empty or full
• Addresses intermittent fuel level fluctuations due to wiring or connector problems
• Restores proper fuel level monitoring in vehicles with compatible fuel tank dimensions
• Prevents fuel leaks with included gasket ensuring a secure tank seal

Installation Notes and Tips

Before installation, verify the length and connector type match your vehicle’s fuel tank specifications. Ensure the wiring harness is compatible with the black oval female connector and blade terminals. Use the included gasket to create a proper seal and prevent leaks. Handle the sending unit carefully to avoid damaging the float or wiring. Consult your vehicle’s service manual for specific removal and installation procedures to maintain safety and accuracy.

Quality Assurance and Warranty Information

Dorman manufactures this fuel tank sending unit to meet or exceed OEM standards for fit, form, and function. The part number 285-5217 undergoes quality checks to ensure reliable operation and durability. While specific warranty details are not provided here, Dorman typically offers limited warranties on their replacement parts. Refer to Dorman’s official documentation for complete warranty terms.
