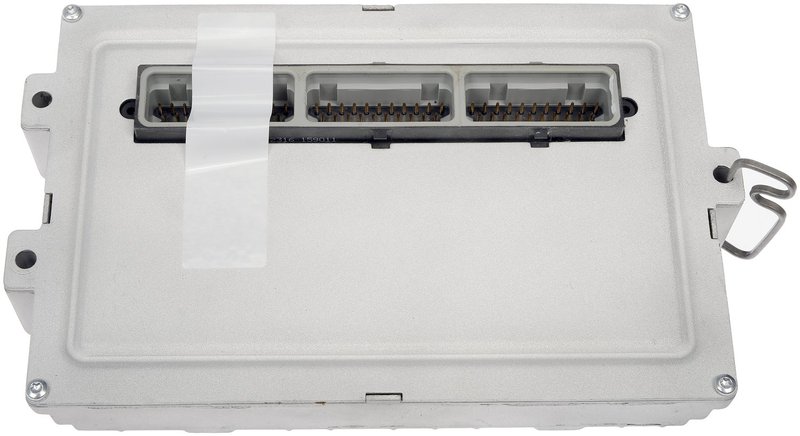

Dorman 318-113 Engine Control Module

Reliable Engine Control Module for Dodge Ram Trucks

The Dorman 318-113 Engine Control Module (ECM) is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This ECM offers precise engine management without the need for flash programming, ensuring a straightforward replacement process.

• Compatible with Dodge Ram 1500, 2500, and 3500
• Flash programming not required for installation
• Flashable for future updates
• Gray rectangular connectors with 3 connector ports
• 96 male terminals with pin-type connections
• Compact dimensions: 9" length, 6" width, 2" height
• Mounts securely with 3 bolt holes (bolt mounting type)
• Package includes 1 powertrain control module

Technical Details and Specifications

The Dorman 318-113 ECM features a durable design with a gray rectangular connector housing three female connectors, each equipped with 96 male pin terminals. Measuring 9 inches in length, 6 inches in width, and 2 inches in height, this module fits precisely within the engine compartment of Dodge Ram 1500, 2500, and 3500 trucks. The unit mounts using three bolt holes, providing a secure and stable installation. While the module is flashable for updates, it does not require flash programming upon installation, simplifying the replacement process. Note that mounting hardware and wire harnesses are not included.

Common Applications and Problem Resolution

This engine control module is used to manage engine functions and optimize performance in Dodge Ram trucks. It addresses several common issues, including:

• Engine stalling or misfiring due to faulty ECM
• Check engine light illumination related to control module errors
• Poor fuel efficiency caused by ECM malfunction
• Starting difficulties linked to engine control failures
• Irregular engine performance and power loss

Installation Notes and Tips

When installing the Dorman 318-113 ECM, ensure the vehicle battery is disconnected to prevent electrical damage. The module mounts with three bolts; verify that the mounting holes align correctly with the vehicle’s frame. Since mounting hardware and wire harnesses are not included, retain the original components or source compatible parts. The gray rectangular connectors should be securely attached to avoid connection issues. No flash programming is required, but the module is flashable if future updates are needed.

Quality Assurance and Warranty Information

Dorman manufactures this engine control module to meet or exceed OEM specifications for Dodge Ram 1500, 2500, and 3500 trucks. The 318-113 part undergoes rigorous testing to ensure reliable performance and durability under typical operating conditions. Warranty coverage details should be confirmed at the point of purchase, as they may vary.
