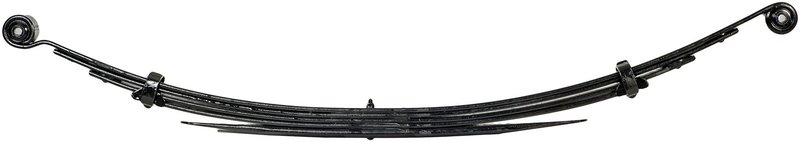

Dorman 34-1339 Leaf Spring Assembly - Rear
| Brand | Dorman 34-1339 |
|---|---|
| Position | Rear |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 2025 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Leaf Quantity | 5 |
| Leaf Width | 2.5 |
| Axle Orientation | Arrière |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 27.875 |
| Length Axis 2 | 27.875 |
| Pack Thickness | 2.198 |
| Leaf Spring Arch Length | 6.438 |
| Spring Research Institute Number | 34-1339 |
| Fits | Dodge · 9 vehicles |
Steel construction. Provides durable support for suspension loads and payload.
Standard replacement. A direct-fit leaf spring assembly for straightforward service.
Bushings included. Helps simplify installation and restore proper suspension function.
Cross-references Dorman - OE Solutions 34-1339, 34-1311 and 34-1313 for the same application. See all 11.
Dorman 34-1339 Rear Leaf Spring Assembly
Dorman 34-1339 is a rear leaf spring assembly for select Dodge Ram 2500 trucks. It is built from steel with a 5-leaf design, black bushings, and a standard suspension grade to restore rear suspension support and ride control.
For 1994-2002 Dodge Ram 2500 rear applications, this leaf spring assembly is specified for vehicles with a 2.50 in. spring width and 2,025 lb. average capacity under 8,500 lb. GVW. The part number 34-1339 is also listed as a Dorman OE Solutions replacement for the same application.
Key Features
- Steel leaf spring assembly for rear suspension service
- 5-leaf construction with a 2.50 in. spring width
- Black bushings included
- Standard replacement suspension grade
- End 1: Berlin eye; End 2: down turned eye
- Axle modification not required
- Helper spring: No
- Part number: 34-1339
Vehicle Fitment
- Fits 1994-2002 Dodge Ram 2500, rear. Notes: 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW.
What This Leaf Spring Helps Address
- Sagging rear ride height
- Reduced load support in the rear suspension
- Uneven rear-end stance under cargo weight
- Worn or fatigued leaf spring components
- Loss of ride stability on a Dodge Ram 2500
Installation Notes and Tips
Confirm spring width, pack thickness, arch length, and attachment style before installation. This assembly is for rear position use on the listed Dodge Ram 2500 applications, and the fitment notes should be matched to the truck’s GVW and spring configuration. Part number 34-1339 should be verified against the existing spring before replacement.
Quality Assurance
Dorman OE Solutions parts are cataloged as direct replacement components for specific vehicle applications. This leaf spring assembly is built to match the listed fitment and dimensional requirements for the 1994-2002 Dodge Ram 2500 rear suspension.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| 2001 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| 2000 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| 1999 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| 1998 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| 1997 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| 1996 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| 1995 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| 1994 | Dodge | Ram 2500 | 4WD | Rear | 4 Leaf / 1 Leaf = 5 Leaf Spring; 2.50 In. Spring Width; 2.1875 In. Pack Thickness; 2,025 Lb. Average Capacity; Under 8,500 Lb. GVW |
| No rows match your filter. | |||||
