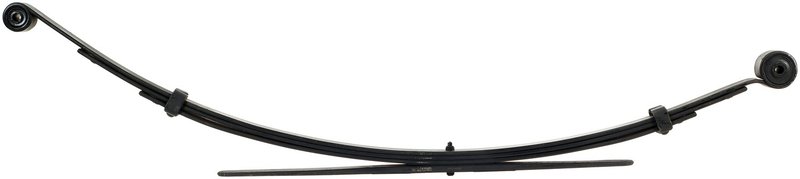

Dorman 34-1503 Leaf Spring Assembly - Rear
Durable Leaf Spring Assembly for Dodge Dakota and Mitsubishi Raider
The Dorman 34-1503 leaf spring assembly is engineered to provide reliable rear suspension support for Dodge Dakota and Mitsubishi Raider models. Constructed from high-quality steel with black bushings, this replacement leaf spring assembly offers a standard suspension grade designed to restore your vehicle's ride height and load capacity.
Key Features of the Dorman 34-1503 Leaf Spring Assembly
- Material: Heavy-duty steel construction for strength and durability
- Color: Black finish for corrosion resistance and a clean appearance
- Bushing Color: Black bushings included for smooth suspension articulation
- Load Rate: 1800 lbs, suitable for standard rear suspension needs
- Leaf Quantity: 4 leaves with a 2.5-inch width for balanced support
- Leaf Spring Arch Length: 7.25 inches to maintain proper suspension geometry
- Axle Orientation: Designed specifically for rear axle installation
- No axle modification required for installation
- Mounting hardware not included
Detailed Description of the Dorman 34-1503 Leaf Spring Assembly
This leaf spring assembly is crafted from robust steel to withstand the demands of daily driving and load carrying. Featuring four leaves each 2.5 inches wide, the assembly provides a load rate of 1800 pounds, making it suitable for standard replacement applications on the rear axle of Dodge Dakota and Mitsubishi Raider trucks. The black bushings included help reduce noise and vibration, ensuring a smoother ride. With a pack thickness of 1.747 inches and a leaf spring arch length of 7.25 inches, this assembly maintains the correct suspension height and alignment without requiring axle modifications.
Common Applications and Problem Solving
- Restores sagging or worn rear suspension on Dodge Dakota and Mitsubishi Raider
- Replaces broken or cracked leaf springs to improve vehicle stability
- Addresses uneven ride height and poor load handling
- Eliminates excessive rear-end bounce and improves control
- Supports standard load capacity for daily driving and light hauling
Installation Notes and Tips
Installation of the Dorman 34-1503 leaf spring assembly is straightforward and does not require any axle modifications. Ensure the vehicle is safely supported before removing the old leaf springs. Since mounting hardware is not included, reuse existing hardware if in good condition or purchase new hardware separately. Proper torque specifications should be followed to secure the assembly and maintain suspension integrity.
Quality Assurance and Warranty Information
Dorman manufactures this leaf spring assembly to meet or exceed OEM standards for fit and function. The steel construction and quality bushings contribute to long-lasting performance. While specific warranty details are not provided, Dorman products typically come with a limited warranty against defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
| Brand | Dorman |
| Part Number | 34-1503 |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 1800 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Leaf Quantity | 4 |
| Leaf Width | 2.5 |
| Axle Orientation | Arrière |
| Axle Orientation | Rear |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 24 |
| Length Axis 2 | 24 |
| Pack Thickness | 1.747 |
| Leaf Spring Arch Length | 7.25 |
| Spring Research Institute Number | 34-1503 |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Ram | Dakota | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2010 | Dodge | Dakota | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2009 | Dodge | Dakota | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2009 | Mitsubishi | Raider | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2008 | Dodge | Dakota | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2008 | Mitsubishi | Raider | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2007 | Dodge | Dakota | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2007 | Mitsubishi | Raider | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2006 | Dodge | Dakota | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2006 | Mitsubishi | Raider | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
| 2005 | Dodge | Dakota | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.75 In. Pack Thickness; 1,800 Lb. Average Capacity |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
