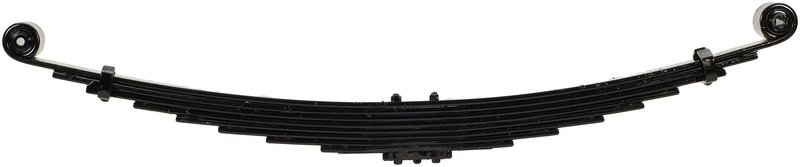

Dorman 34-1697 Leaf Spring Assembly - Rear

Leaf Spring Assembly for Heavy-Duty Rear Suspension

Dorman 34-1697 is a standard replacement leaf spring assembly built for rear suspension applications that carry weight and payload. It uses a steel construction with black bushings and an up-turned eye design to match the specified application.

Compatible with Ram 3500 and Dodge Ram 3500 rear suspension applications, this leaf spring assembly is selected by fitment details such as leaf count, width, arch length, and load rate. Part number 34-1697 is also referenced by OE-style interchange numbers for the same application.

Key Features

• Steel leaf spring assembly for rear suspension service
• Standard replacement grade for direct application matching
• Black bushings included for the specified setup
• Up-turned eye ends for the listed fitment
• 8-leaf design with a 4800 load rate

Detailed Description

Leaf springs are a core part of suspension support, helping carry vehicle weight and payload while maintaining ride control. Dorman 34-1697 is built as a standard replacement leaf spring assembly with the dimensions and attachment style needed for the listed rear applications. The steel construction, 3-inch leaf width, 28.5-inch length, 5.75-inch arch length, and 8-leaf layout provide the configuration details buyers use to confirm the correct part before installation. This part number, 34-1697, is listed for 2010 Dodge Ram 3500 rear applications with an 8 leaf / 1 pad setup and 2011-2013 Ram 3500 rear applications with the same note.

This part cross-references Monroe Shocks & Struts (e.g., 34-1697DAY, 52014035AB) for the same application.

What It Is Used For

• Restoring rear suspension support when the original spring has weakened
• Addressing sagging ride height from worn leaf spring components
• Replacing a damaged spring pack in heavy-duty payload service
• Correcting ride control issues tied to reduced spring tension
• Matching the specified rear leaf spring configuration for the application

Installation Notes and Tips

Verify the axle orientation, leaf count, width, arch length, and attachment style before installation. This assembly is listed for rear use and does not require axle modification. Bushings are included, and mounting hardware is not stated as included in the product data.

Quality Assurance

Dorman positions this part as an OE Solutions replacement, and the manufacturer notes that proper leaf spring selection is essential for suspension performance and passenger comfort. Confirm fitment against the application details and part number 34-1697 before ordering.
