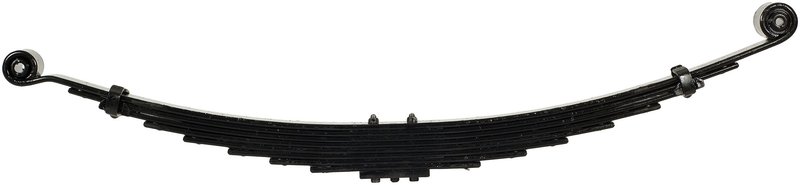

Dorman 34-1747 Leaf Spring Assembly - Rear
| Brand | Dorman 34-1747 |
|---|---|
| Position | Rear |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 3800 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Leaf Quantity | 8 |
| Leaf Width | 3 |
| Axle Orientation | Arrière |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 28.5 |
| Length Axis 2 | 28.5 |
| Pack Thickness | 4.801 |
| Leaf Spring Arch Length | 6 |
| Spring Research Institute Number | 34-1747 |
| Fits | Ram · 11 vehicles |
Standard replacement. Steel leaf spring assembly for rear suspension service.
Load support. 8-leaf construction with a 3800 load rate.
Bushings included. Black bushings are part of the assembly.
Cross-references 34-1747DAY, 34-1759 and 68165054AB for the same application. See all 3.
Overview
Dorman 34-1747 is a standard replacement leaf spring assembly built for rear suspension service. It is made of steel and uses an 8-leaf design with a 3-inch leaf width to restore load support and ride control where the original spring has weakened.
Compatible with Ram 3500 rear applications, this leaf spring assembly includes bushings and uses an up-turned eye on one end and a Berlin eye on the other. The part number 34-1747 is also referenced for the same application as 34-1747DAY, 34-1759, and 68165054AB.
Key Features
- Steel construction for rear suspension replacement
- 8-leaf design with a 3-inch leaf width
- Standard replacement grade for direct service use
- Black bushings included
- No axle modification needed
Detailed Description
This Dorman leaf spring assembly is engineered to carry vehicle weight and payload while helping maintain suspension performance and passenger comfort. The 3800 load rate, 6-inch arch length, and 28.5-inch dimensions support rear suspension service on Ram 3500 models, while the 30.5-inch B dimension helps identify the correct application. Part number 34-1747 should be matched to the listed fitment and spring configuration before installation.
Common Uses
- Restoring rear ride height after spring fatigue
- Replacing a sagging or weakened leaf spring
- Addressing uneven rear stance under load
- Improving suspension support for payload service
- Correcting noise or movement from worn spring bushings
Installation Notes
Verify the rear fitment, 8-leaf configuration, and spring dimensions before installation. This assembly includes bushings, and mounting hardware is not included. Confirm that no axle modification is required for the application and compare the original spring attachment style to the Berlin eye and up-turned eye ends.
Quality Assurance
Dorman supplies standard replacement suspension components for service applications. Use the vehicle fitment and spring specifications to confirm the correct replacement before installation.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2023 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2022 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2021 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2020 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2019 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2018 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2017 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2016 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2015 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
| 2014 | Ram | 3500 | Cab & Chassis | Rear | 8 Leaf / 2 Pads |
