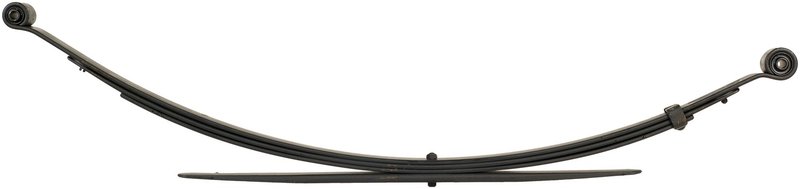

Dorman 43-709 Leaf Spring Assembly - Rear
| Brand | Dorman 43-709 |
|---|---|
| Position | Rear |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 1350 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Leaf Quantity | 4 |
| Leaf Width | 2.5 |
| Axle Orientation | Arrière |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 25 |
| Length Axis 2 | 25 |
| Pack Thickness | 1.555 |
| Leaf Spring Arch Length | 8 |
| Spring Research Institute Number | 43-709 |
| Fits | Ford · 15 vehicles |
Standard replacement. Steel leaf spring assembly for suspension service and load support.
Included bushings. Black bushings are supplied for a more complete service replacement.
Rear suspension fitment. Built for listed rear applications with a 4-leaf design and 1,350 lb load rate.
Cross-references 043-0709-00, 43-709DAY and 43-753 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Leaf Spring Assembly for Rear Suspension
Dorman 43-709 is a steel leaf spring assembly for rear suspension applications that require standard replacement construction and a 1,350 lb average capacity. It is built with black bushings and includes bushings for a direct replacement-style service part.
Key Features
- Steel construction for rear suspension use
- Standard replacement grade for service applications
- 4-leaf design with a 2.5 in. leaf width
- Black bushings included
- Part number 43-709 for identification and ordering
Detailed Description
This Dorman leaf spring assembly is engineered for rear suspension systems where the spring must carry vehicle weight and payload while maintaining ride support. The assembly uses a 4-leaf configuration and a standard replacement suspension grade, making it a practical option for restoring spring function on Ford F-150 and Ford F-100 applications listed below. The part number 43-709 is also cross-referenced to related numbers for the same application, including Monroe Shocks & Struts 172286 and 182286.
Compatible With rear suspension service on Ford F-150 and Ford F-100 models, this assembly is specified with a 1,350 lb load rate and black bushings. The steel construction and included bushings support a straightforward replacement when the original spring has lost arch, load support, or ride control. Use 43-709 when the application calls for the listed leaf spring dimensions and rear axle configuration.
What It Is Used For
- Restoring rear ride height after spring sag
- Replacing a worn or fatigued leaf spring assembly
- Addressing reduced payload support
- Correcting uneven rear suspension stance
- Improving suspension response on load-bearing applications
Installation Notes and Tips
Verify the vehicle’s year, make, model, and rear suspension specifications before installation. Match the listed leaf count, width, and load rate to the original application, and confirm that no axle modification is required for your setup. This part number 43-709 should be selected only when the fitment notes align with the vehicle’s rear suspension configuration.
Quality Assurance
Dorman positions this leaf spring assembly as a standard replacement part for suspension service. The product description and fitment data should be checked together to confirm the correct application before installation.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1996 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1995 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1994 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1993 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1992 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1991 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1990 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1989 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1988 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1987 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1986 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1981 | Ford | F-100 | — | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1981 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1980 | Ford | F-100 | — | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
| 1980 | Ford | F-150 | RWD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.5625 In. Pack Thickness; 1,350 Lb. Average Capacity |
