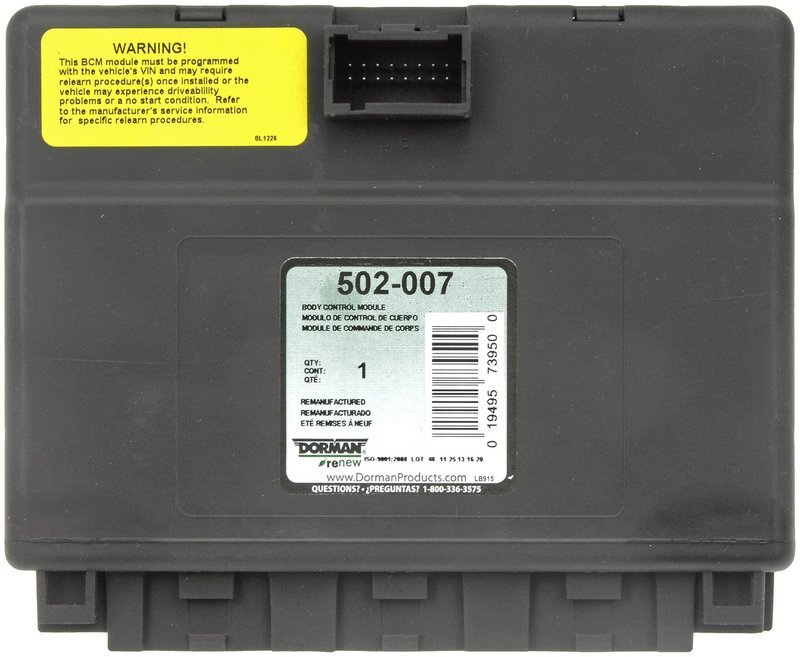

Dorman 502-007 Body Control Module

Overview of the Dorman 502-007 Body Control Module

The Dorman 502-007 Body Control Module is a remanufactured electrical component designed for select Chevrolet, GMC, and Hummer vehicles. Engineered with a durable plastic housing and a 3-plug connector configuration, this module ensures reliable control of various body functions in your vehicle.

• Remanufactured body control module with tested functionality
• Plastic housing measuring 6 inches wide, 5 inches long, and 1.25 inches high
• 3-plug connector/terminal configuration for secure electrical connections
• Compatible with multiple Chevrolet, GMC, and Hummer models
• Includes one remanufactured body control module per package

Detailed Product Description

The Dorman 502-007 Body Control Module features a robust plastic housing designed to protect internal circuitry from environmental factors. Its compact dimensions—6 inches in width, 5 inches in length, and 1.25 inches in height—allow for straightforward installation within the vehicle’s electrical system. The 3-plug connector configuration facilitates seamless integration with the vehicle’s wiring harness, ensuring consistent communication between the module and other electronic components.

This module is remanufactured to meet OEM specifications, providing a cost-effective solution for restoring body control functions. It is compatible with a range of Chevrolet, GMC, and Hummer vehicles, including models such as the Chevrolet Silverado 1500, GMC Sierra 2500 HD, and Hummer H2, among others.

Compatible Vehicles and Applications

• Chevrolet Avalanche 1500 and 2500
• Chevrolet Express 1500, 2500, and 3500
• Chevrolet Silverado 1500, 1500 Classic, 1500 HD, 1500 HD Classic, 2500, 2500 HD, 2500 HD Classic, 3500, and 3500 Classic
• Chevrolet Suburban 1500 and 2500
• Chevrolet Tahoe
• GMC Sierra 1500, 1500 Classic, 1500 HD, 1500 HD Classic, 2500, 2500 HD, 2500 HD Classic, 3500, and 3500 Classic
• GMC Savana 1500, 2500, and 3500
• GMC Yukon and Yukon XL 1500, 2500
• Hummer H2

Common Issues Addressed by This Module

• Intermittent or complete failure of power door locks and windows
• Malfunctioning interior lighting and exterior signal controls
• Non-responsive remote keyless entry systems
• Erratic operation of windshield wipers and other body electronics
• Dashboard warning lights related to body control system faults

Installation Notes and Tips

• Ensure the vehicle battery is disconnected before installation to prevent electrical shorts
• Verify the part number 502-007 matches the original module to confirm compatibility
• Handle the module carefully to avoid damage to the plastic housing and connectors
• Consult the vehicle’s service manual for specific removal and installation procedures
• After installation, perform a system reset or relearn procedure if required by the vehicle manufacturer

Quality Assurance and Warranty

This Dorman body control module is remanufactured to meet or exceed original equipment standards. Each unit undergoes rigorous testing to ensure proper functionality and durability. While specific warranty terms may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation for detailed warranty information.
