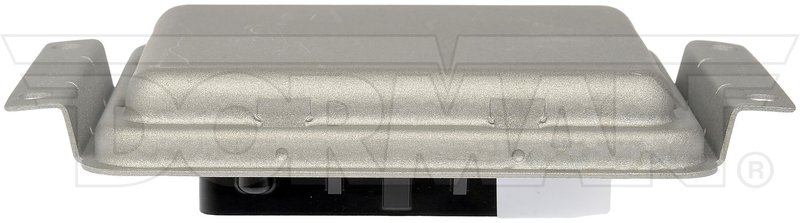

Dorman 502-055 Body Control Module

Overview of Dorman 502-055 Body Control Module

The Dorman 502-055 Body Control Module is designed specifically for Dodge Ram 1500 and Ram 2500 models. This remanufactured front control module offers reliable electrical control without the need for flash programming, ensuring a straightforward replacement process.

• Compatible with Dodge Ram 1500 and Ram 2500
• Remanufactured front control module
• Flash programming not required
• Blade terminal type with 49 terminals
• Durable metal and plastic housing in silver color
• Rectangular black male connector with one connector and 4 mounting holes
• Bolt-on mounting type for secure installation

Detailed Product Description

The Dorman 502-055 Body Control Module is engineered to manage various electrical functions within the vehicle’s body system. Featuring a robust housing constructed from both metal and plastic materials, it measures 7 inches in length, 4.9 inches in width, and 1.25 inches in height. The module includes a single rectangular black male connector with 49 blade terminals configured as pins, providing reliable electrical connections. Its bolt-on mounting type with four mounting holes ensures a secure fit within the vehicle’s electrical system. This module is flashable but does not require flash programming upon installation, simplifying the replacement process for Dodge Ram 1500 and Ram 2500 owners.

Common Applications and Issues Resolved

• Restores proper operation of interior lighting and electrical accessories
• Resolves malfunctioning power door locks and window controls
• Fixes issues with vehicle security and alarm systems
• Corrects intermittent electrical faults related to body control functions
• Addresses dashboard warning lights related to body control errors

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical damage
• Verify connector orientation; the module features a male rectangular black connector
• Use appropriate tools for bolt-on mounting with four mounting holes
• Although flash programming is not required, verify compatibility with vehicle’s existing software
• Handle the module carefully to avoid damage to blade terminals

Quality Assurance and Warranty

This Dorman body control module is remanufactured to meet or exceed OEM standards, ensuring dependable performance for Dodge Ram 1500 and Ram 2500 vehicles. The product undergoes rigorous testing to verify functionality and durability. Warranty coverage details are provided by Dorman and typically include protection against defects in materials and workmanship for a specified period.
