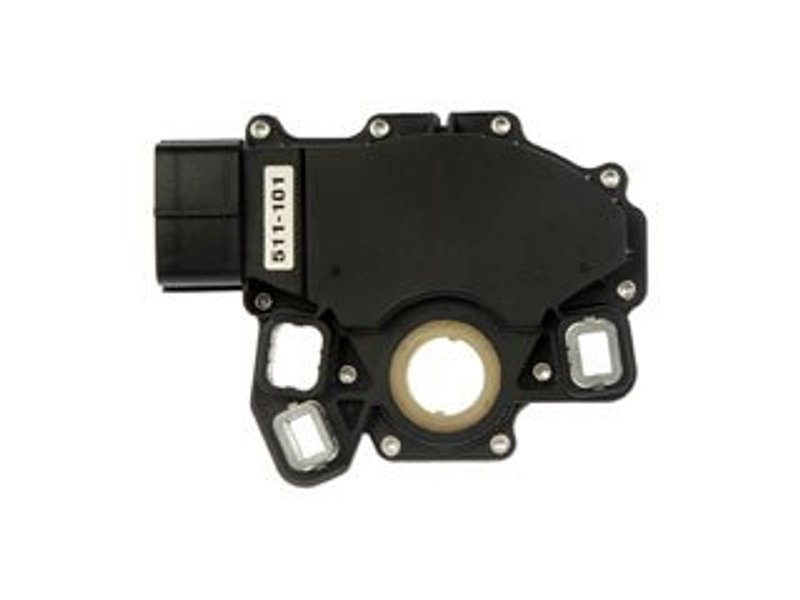

Dorman 511-101 Transmission Range Sensor
| Brand | Dorman 511-101 |
|---|---|
| Color/Finish | Black |
| Package Contents | One Sensor |
| Terminal Type | Blade |
| Fits | Ford and Lincoln · 68 vehicles |
OE fit and function. Matches the original sensor's design for straightforward replacement.
Durable construction. Engineered for reliable performance over time.
Blade terminals. Uses a blade-style connection for secure electrical contact.
Cross-references 1S5329, F7TZ7A247AA and F434 for the same application. See all 5.
Transmission Range Sensor for Ford and Lincoln
This Dorman transmission range sensor is built to match the fit and function of the original sensor on specified vehicles. It is engineered for durable, reliable performance and is a direct replacement for common Ford and Lincoln applications, including Ford F-150, Ford Expedition, and Lincoln Navigator models.
Key Features
- Direct replacement transmission range sensor for specified Ford and Lincoln vehicles
- Matches original fit and function for accurate transmission position input
- Blade terminal type for vehicle-specific electrical connection
- Black finish
- Designed for dependable operation in transmission control systems
- Cross-reference part number: F7TZ7A247AA
Detailed Description
Dorman Part Number 511-101 is a transmission range sensor for vehicles equipped with compatible transmission control systems. This sensor helps communicate the selected gear position to the vehicle’s control modules, supporting proper starting, shifting, and indicator operation. It is a practical replacement for worn or failed original equipment on Ford F-150, Ford Expedition, Ford Excursion, Ford Super Duty trucks, and Lincoln Navigator applications. The part number 511-101 is also referenced by F7TZ7A247AA for the same application.
What It Helps Solve
- Incorrect gear position signal to the transmission control system
- No-start condition related to park/neutral recognition
- Intermittent shifting or gear indicator issues
- Transmission range sensor fault codes
- Loss of accurate transmission selector input
Installation Notes and Tips
- Verify vehicle year, make, and model before installation.
- Confirm the blade terminal connection matches the original sensor.
- Inspect the harness connector and related wiring for corrosion or damage during replacement.
- After installation, clear diagnostic trouble codes and verify proper gear selection display and starting operation.
Quality Assurance
Dorman engineers this transmission range sensor to match original fit and function on specified applications. It is built for durability and reliable performance in everyday service.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Ford | Excursion | — | N/A | — |
| 2004 | Ford | E-250 | — | N/A | — |
| 2004 | Ford | Excursion | — | N/A | — |
| 2004 | Ford | F-150 Heritage | — | N/A | — |
| 2004 | Ford | F-250 Super Duty | — | N/A | — |
| 2004 | Ford | F-350 Super Duty | — | N/A | — |
| 2004 | Lincoln | Navigator | — | N/A | — |
| 2003 | Ford | E-250 | — | N/A | — |
| 2003 | Ford | E-350 Club Wagon | — | N/A | — |
| 2003 | Ford | Excursion | — | N/A | — |
| 2003 | Ford | F-150 | — | N/A | — |
| 2003 | Ford | F-250 Super Duty | — | N/A | — |
| 2003 | Ford | F-350 Super Duty | — | N/A | — |
| 2003 | Lincoln | Navigator | — | N/A | — |
| 2002 | Ford | E-250 Econoline | — | N/A | — |
| 2002 | Ford | E-350 Econoline Club Wagon | — | N/A | — |
| 2002 | Ford | Excursion | — | N/A | — |
| 2002 | Ford | Expedition | — | N/A | — |
| 2002 | Ford | F-150 | — | N/A | — |
| 2002 | Ford | F-250 Super Duty | — | N/A | — |
| 2002 | Ford | F-350 Super Duty | — | N/A | — |
| 2002 | Lincoln | Blackwood | — | N/A | — |
| 2002 | Lincoln | Navigator | — | N/A | — |
| 2001 | Ford | E-250 Econoline | — | N/A | — |
| 2001 | Ford | E-350 Econoline Club Wagon | — | N/A | — |
| 2001 | Ford | Excursion | — | N/A | — |
| 2001 | Ford | Expedition | — | N/A | — |
| 2001 | Ford | F-150 | — | N/A | — |
| 2001 | Ford | F-250 Super Duty | — | N/A | — |
| 2001 | Ford | F-350 Super Duty | — | N/A | — |
| 2001 | Lincoln | Navigator | — | N/A | — |
| 2000 | Ford | E-250 Econoline | — | N/A | — |
| 2000 | Ford | E-350 Econoline Club Wagon | — | N/A | — |
| 2000 | Ford | E-350 Super Duty | — | N/A | — |
| 2000 | Ford | Excursion | — | N/A | — |
| 2000 | Ford | Expedition | — | N/A | — |
| 2000 | Ford | F-150 | Automatic | N/A | — |
| 2000 | Ford | F-250 Super Duty | Automatic | N/A | — |
| 2000 | Ford | F-350 Super Duty | Automatic | N/A | — |
| 2000 | Lincoln | Navigator | — | N/A | — |
| 1999 | Ford | E-250 Econoline | — | N/A | — |
| 1999 | Ford | E-350 Econoline Club Wagon | — | N/A | — |
| 1999 | Ford | E-350 Super Duty | — | N/A | — |
| 1999 | Ford | Expedition | — | N/A | — |
| 1999 | Ford | F-150 | Automatic | N/A | — |
| 1999 | Ford | F-250 | Automatic | N/A | — |
| 1999 | Ford | F-250 Super Duty | Automatic | N/A | — |
| 1999 | Ford | F-350 Super Duty | Automatic | N/A | — |
| 1999 | Lincoln | Navigator | — | N/A | — |
| 1998 | Ford | E-150 Econoline | — | N/A | — |
| 1998 | Ford | E-150 Econoline Club Wagon | — | N/A | — |
| 1998 | Ford | E-250 Econoline | — | N/A | — |
| 1998 | Ford | E-350 Econoline | — | N/A | — |
| 1998 | Ford | E-350 Econoline Club Wagon | — | N/A | — |
| 1998 | Ford | Expedition | — | N/A | — |
| 1998 | Ford | F-150 | Automatic | N/A | — |
| 1998 | Ford | F-250 | Automatic | N/A | — |
| 1998 | Lincoln | Navigator | — | N/A | — |
| 1997 | Ford | E-150 Econoline | — | N/A | — |
| 1997 | Ford | E-150 Econoline Club Wagon | — | N/A | — |
| 1997 | Ford | E-250 Econoline | — | N/A | — |
| 1997 | Ford | E-350 Econoline | — | N/A | — |
| 1997 | Ford | E-350 Econoline Club Wagon | — | N/A | — |
| 1997 | Ford | Expedition | — | N/A | — |
| 1997 | Ford | F-150 | Automatic | N/A | — |
| 1997 | Ford | F-250 | Automatic | N/A | — |
| 1997 | Ford | F-250 HD | Automatic | N/A | — |
| 1997 | Ford | F-350 | Automatic | N/A | — |
