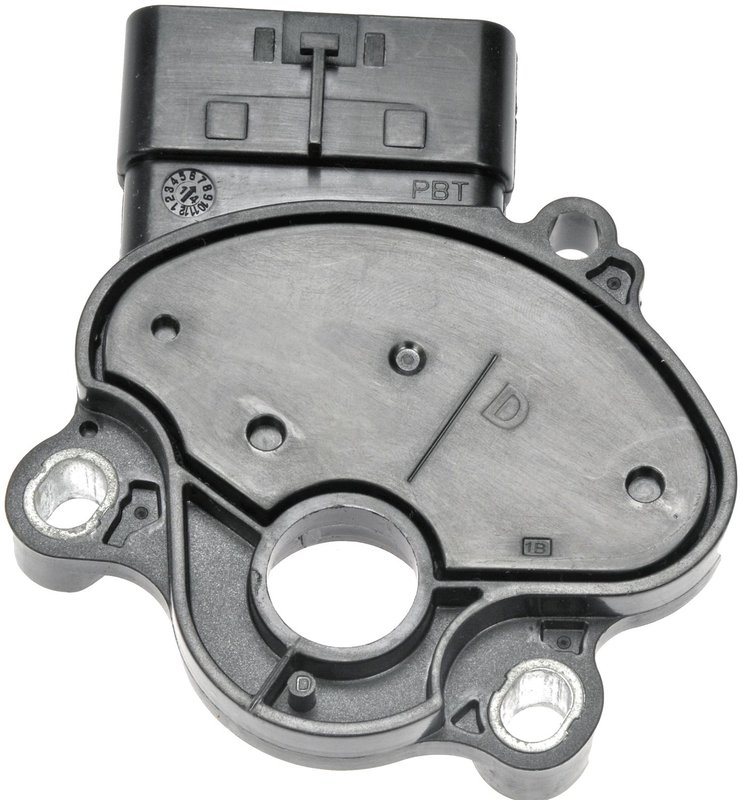

Dorman 511-105 Transmission Range Sensor
| Brand | Dorman 511-105 |
|---|---|
| Color/Finish | Black |
| Package Contents | 1 Sensor |
| Terminal Type | Blade |
| Fits | Mazda · 35 vehicles |
OE-style replacement. Matches the fit and function of the original sensor.
Durable construction. Engineered for reliable performance over time.
Blade terminals and a black finish.
Cross-references Standard Ignition NS-326, 1S5859 and FN0221444 for the same application. See all 5.
Dorman 511-105 Transmission Range Sensor
This Dorman transmission range sensor is built to match the fit and function of the original sensor on specified vehicles. It is engineered for durable, reliable performance and is a direct-fit replacement for Mazda applications that need accurate transmission range signal input.
Key Features
- Blade terminal type for the specified electrical connection
- Black finish
- Designed to match original sensor fit and function
- Built for dependable transmission range signal performance
- Fits select Mazda 2, Mazda 3, Mazda 5, Mazda 6, and Mazda CX-7 applications
- Part number 511-105 for easy identification
Detailed Description
The Dorman 511-105 transmission range sensor is a replacement component for vehicles that rely on accurate gear-position input to the transmission control system. It is engineered to replicate the original sensor’s fit and operating characteristics, helping maintain proper communication between the shifter position and the vehicle’s transmission electronics. This part number 511-105 is a practical choice for Mazda 3, Mazda 6, Mazda 5, Mazda 2, and Mazda CX-7 models listed in the fitment data.
This part cross-references Standard Ignition NS-326 for the same application.
What This Part Is Used For
- Restoring correct transmission range signal output
- Addressing gear-indicator or shift-position recognition concerns
- Replacing a worn or damaged original sensor
- Supporting proper transmission control system operation
- Resolving intermittent starting or range-selection issues tied to sensor input
Installation Notes and Tips
Verify connector style, terminal type, and vehicle application before installation. This sensor uses blade terminals and a black finish, so compare the original part to confirm match-up. For Mazda 3, Mazda 6, Mazda 5, Mazda 2, and Mazda CX-7 fitments, confirm the transmission range sensor location and inspect the harness connector for corrosion or damage before installing Dorman 511-105.
Quality Assurance
Dorman designs this transmission range sensor to match original equipment fit and function on specified vehicles. The part is engineered for durability and reliable performance in the applications listed.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Mazda | 2 | Automatic | — | — | N/A | — |
| 2014 | Mazda | 5 | Automatic | — | — | N/A | — |
| 2014 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2013 | Mazda | 2 | Automatic | — | — | N/A | — |
| 2013 | Mazda | 3 | Automatic | — | — | N/A | — |
| 2013 | Mazda | 5 | Automatic | — | — | N/A | — |
| 2013 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2012 | Mazda | 2 | Automatic | — | — | N/A | — |
| 2012 | Mazda | 3 | Automatic | — | — | N/A | — |
| 2012 | Mazda | 5 | Automatic | — | — | N/A | — |
| 2012 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2012 | Mazda | CX-7 | — | 2.5L | L4 | N/A | — |
| 2011 | Mazda | 2 | Automatic | — | — | N/A | — |
| 2011 | Mazda | 3 | Automatic | — | — | N/A | — |
| 2011 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2011 | Mazda | CX-7 | — | 2.5L | L4 | N/A | — |
| 2010 | Mazda | 3 | Automatic | — | — | N/A | — |
| 2010 | Mazda | 5 | Automatic | — | — | N/A | — |
| 2010 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2010 | Mazda | CX-7 | — | 2.5L | L4 | N/A | — |
| 2009 | Mazda | 3 | Automatic | — | — | N/A | — |
| 2009 | Mazda | 5 | Automatic | — | — | N/A | — |
| 2009 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2008 | Mazda | 3 | Automatic | — | — | N/A | — |
| 2008 | Mazda | 5 | Automatic | — | — | N/A | — |
| 2008 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2007 | Mazda | 3 | Automatic | — | — | N/A | — |
| 2007 | Mazda | 5 | Automatic | — | — | N/A | — |
| 2007 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2006 | Mazda | 3 | Automatic | — | — | N/A | — |
| 2006 | Mazda | 5 | Automatic | — | — | N/A | — |
| 2006 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2005 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2004 | Mazda | 6 | Automatic | — | — | N/A | — |
| 2003 | Mazda | 6 | Automatic | — | — | N/A | — |
