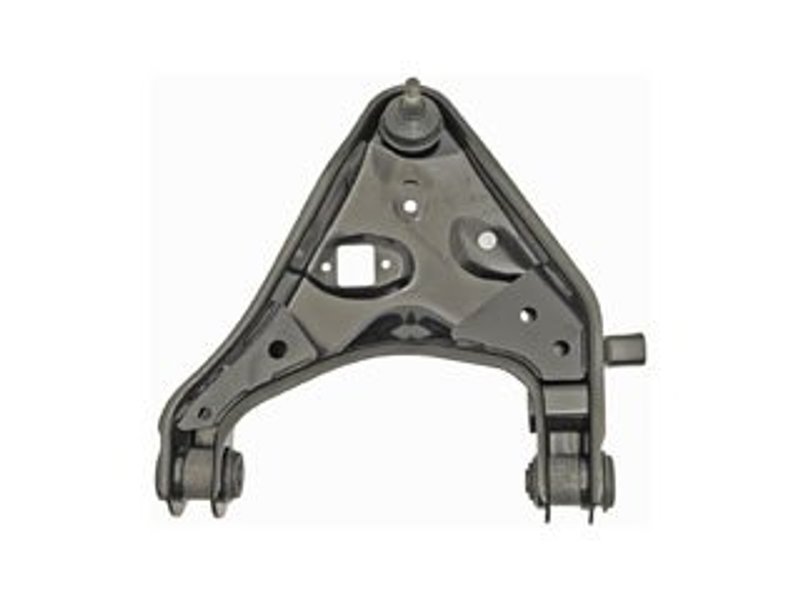

Dorman 520-224 Suspension Control Arm and Ball Joint Assembly - Front Right Lower

Durable Suspension Control Arm and Ball Joint Assembly

The Dorman 520-224 suspension control arm and ball joint assembly is engineered for reliable performance in Ford, Mazda, and Mercury vehicles. Designed specifically for models like the Ford Explorer, Ranger, and Mazda B3000, this assembly ensures precise suspension control and improved handling.

• Pre-greased for immediate installation and reduced maintenance
• Includes rubber bushings and mounting hardware for a complete replacement
• Steel construction with casting/forged control arm for strength and durability
• Press-in ball joint with threaded stud for secure fitment
• Compatible with Ford Explorer, Explorer Sport, Explorer Sport Trac, Ranger, Mazda B3000, B4000, and Mercury Mountaineer

Product Features and Specifications

This suspension control arm and ball joint assembly (part number 520-224) features a light suspension grade type suitable for regular driving conditions. The control arm is constructed from durable steel with a black finish, measuring up to 288.5 mm in width and 237 mm in length. It includes one mounting hole with a diameter of 12.3 mm, and the ball joint is pre-installed with a 14 mm threaded stud for easy mounting. Rubber bushings are included to absorb vibrations and reduce noise, enhancing ride comfort. The assembly comes with all necessary mounting hardware, though it does not include a grease fitting.

Compatible Vehicles and Applications

This Dorman suspension control arm and ball joint assembly is compatible with a range of Ford, Mazda, and Mercury models, including:

• Ford Explorer, Explorer Sport, Explorer Sport Trac
• Ford Ranger
• Mazda B3000, B4000
• Mercury Mountaineer

It is designed to restore proper suspension geometry and improve vehicle handling for these specific models.

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing steering instability
• Loose or failing ball joints leading to uneven tire wear
• Excessive suspension noise or vibration
• Misalignment affecting vehicle handling and safety
• Corroded or weakened control arm compromising suspension integrity

Installation Notes and Tips

The Dorman 520-224 assembly comes pre-greased and includes mounting hardware for straightforward installation. Since the ball joint is press-in type with a threaded stud, professional tools may be required for removal and installation. It is recommended to inspect related suspension components during replacement and perform a wheel alignment afterward to ensure optimal performance.

Quality Assurance and Warranty

Dorman suspension components are manufactured to meet or exceed OEM standards, providing reliable fit and function. This control arm and ball joint assembly undergoes rigorous quality checks to ensure durability and performance. Please refer to Dorman's warranty policy for specific coverage details.
