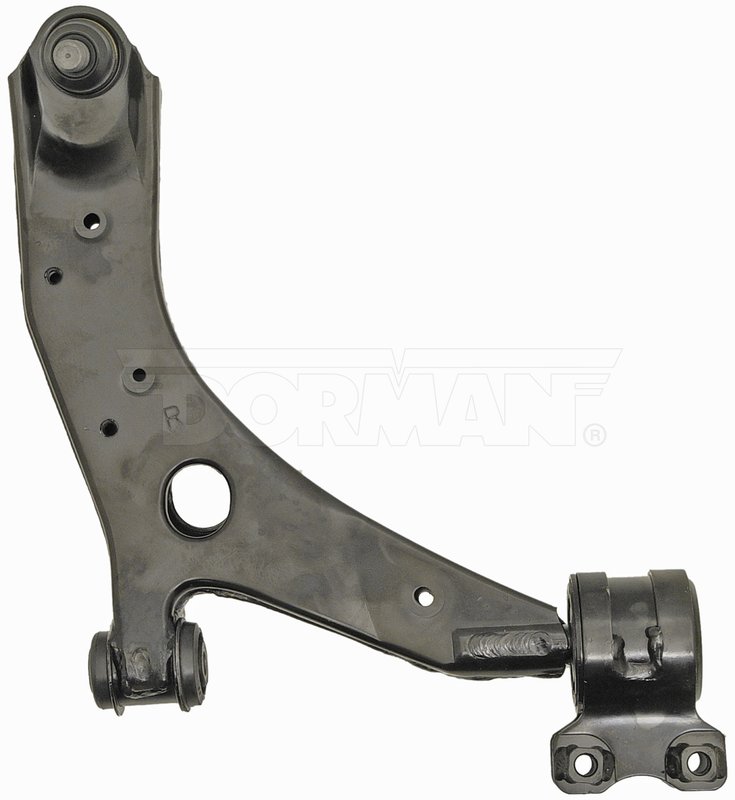

Dorman 520-866 Suspension Control Arm and Ball Joint Assembly - Front Right Lower

Overview of Dorman Suspension Control Arm and Ball Joint Assembly

The Dorman 520-866 suspension control arm and ball joint assembly is designed specifically for Mazda 3, Mazda 3 Sport, and Mazda 5 models. This pre-greased, steel control arm assembly offers a reliable replacement option for light suspension grade applications, ensuring proper vehicle handling and alignment.

• Pre-greased for immediate installation
• Includes rubber bushings and mounting hardware
• Press-in ball joint with pinch stud type installed
• Durable steel construction with black finish
• Compatible with Mazda 3, 3 Sport, and 5 models

Detailed Product Description

The Dorman 520-866 control arm and ball joint assembly is engineered with a casting/forged steel control arm that provides strength and durability for regular driving conditions. The assembly comes pre-greased, eliminating the need for additional lubrication during installation. Rubber bushings are included to help absorb road vibrations and reduce noise, contributing to a smoother ride. The ball joint is press-in mounted and features a pinch stud type with a 14 mm thread diameter, ensuring secure attachment and proper steering response. This assembly includes one mounting hole with a diameter of 12.3 mm and comes with all necessary mounting hardware for a straightforward replacement process.

Compatible Vehicles and Applications

This suspension control arm and ball joint assembly is compatible with the following Mazda vehicles:

• Mazda 3 (various model years)
• Mazda 3 Sport
• Mazda 5

It is designed for light suspension grade use, making it suitable for daily driving and standard road conditions.

Common Issues Addressed by This Assembly

• Worn or damaged control arm bushings causing poor handling
• Loose or failing ball joints leading to steering instability
• Excessive suspension noise or vibration
• Misalignment resulting in uneven tire wear
• Corroded or weakened control arm structure

Installation Notes and Tips

• Pre-greased ball joint allows for immediate installation without additional lubrication
• Ensure proper torque specifications are followed for mounting hardware
• Inspect surrounding suspension components during replacement
• Alignment check is recommended after installation
• Use appropriate tools for press-in ball joint installation

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 520-866 suspension control arm and ball joint assembly undergoes rigorous quality control to ensure durability and performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Refer to Dorman’s official warranty policy for complete information.
