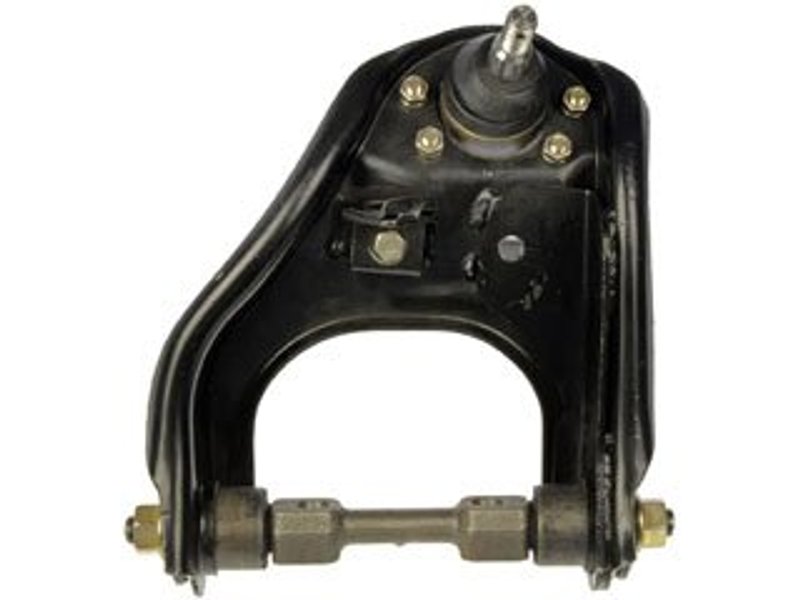

Dorman 521-276 Suspension Control Arm and Ball Joint Assembly - Front Right Upper
| Brand | Dorman 521-276 |
|---|---|
| Position | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Light |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt in |
| Ball Joint Stud Type | Threaded |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Control Arm Maximum Width | 288.5 |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14 |
| Control Arm Maximum Length | 237 |
| Bushing Material | Rubber |
| Ball Joint Included | Yes |
| Ball Joint Installed | Yes |
| Control Arm Type | Casting/forged |
| Grade Type | Regular |
| Mounting Hole Diameter | 12.3 mm |
| Package Contents | Control arm and ball joint assembly |
| Fits | Honda and Isuzu · 20 vehicles |
Direct replacement. OE-style suspension control arm and ball joint assembly for service replacement.
Pre-greased design. Arrives ready for installation with the ball joint already installed.
Steel construction. Casting/forged arm with rubber bushings for suspension isolation.
Cross-references 8943235620, NI and RK621389 for the same application. See all 3.
Direct Replacement Control Arm Assembly
This Dorman suspension control arm and ball joint assembly is a direct replacement for specific applications. It is built for the front right upper suspension position and engineered to support smooth ride quality, directional stability, and predictable handling.
Key Features
- Direct replacement design for the original suspension arm assembly
- Steel casting/forged construction with a black finish
- Pre-greased with the ball joint installed
- Rubber bushings included for suspension isolation
- Bolt-in ball joint mounting with a threaded stud
- Mounting hardware included
Detailed Description
Part number 521-276 is a suspension control arm and ball joint assembly from Dorman for the front right upper position. It is built from steel with a casting/forged control arm design and includes the ball joint already installed, along with rubber bushings and mounting hardware. The pre-greased construction and bolt-in ball joint mounting help simplify service while maintaining the intended suspension geometry. This part number 521-276 is a direct-fit replacement for select Honda Passport, Isuzu Pickup, Isuzu Rodeo, and Isuzu Amigo applications.
Dorman designs this assembly as an OE-style replacement for vehicles that need a complete upper control arm solution rather than a separate arm and joint service. The threaded ball joint stud, 14 mm ball joint thread diameter, and 12.3 mm mounting hole diameter support proper installation on the listed applications. This part cross-references Monroe Shocks & Struts (e.g., RK621389) for the same application.
Common Repair Issues
- Excessive front-end looseness or wandering
- Uneven tire wear caused by worn suspension geometry
- Clunking or knocking from worn bushings or ball joint wear
- Reduced steering stability during braking or cornering
- Service needs where the control arm and ball joint are replaced together
Installation Notes
Verify the front right upper fitment before installation on the listed Honda Passport, Isuzu Pickup, Isuzu Rodeo, or Isuzu Amigo applications. Confirm mounting hole diameter, ball joint thread diameter, and suspension position against the original part. Because the ball joint is already installed, this assembly is suited to a complete replacement approach during suspension service.
Quality Assurance
Dorman subjects this assembly to an industry-leading evaluation process to help deliver consistent ride quality, directional stability, and predictable dynamics.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1995 | Honda | Passport | DX | — | — | — | Front Right Upper | — |
| 1995 | Isuzu | Pickup | — | 4WD | — | — | Front Right Upper | — |
| 1995 | Isuzu | Rodeo | — | — | 2.6L | L4 | Front Right Upper | — |
| 1994 | Honda | Passport | DX | — | — | — | Front Right Upper | — |
| 1994 | Isuzu | Pickup | — | 4WD | — | — | Front Right Upper | — |
| 1994 | Isuzu | Rodeo | — | — | 2.6L | L4 | Front Right Upper | — |
| 1993 | Isuzu | Amigo | — | — | — | — | Front Right Upper | — |
| 1993 | Isuzu | Pickup | — | 4WD | — | — | Front Right Upper | — |
| 1993 | Isuzu | Rodeo | — | — | 2.6L | L4 | Front Right Upper | — |
| 1992 | Isuzu | Amigo | — | — | — | — | Front Right Upper | — |
| 1992 | Isuzu | Pickup | — | 4WD | — | — | Front Right Upper | — |
| 1992 | Isuzu | Rodeo | — | — | — | — | Front Right Upper | — |
| 1991 | Isuzu | Amigo | — | — | — | — | Front Right Upper | — |
| 1991 | Isuzu | Pickup | — | 4WD | — | — | Front Right Upper | — |
| 1991 | Isuzu | Rodeo | — | — | — | — | Front Right Upper | — |
| 1990 | Isuzu | Amigo | — | — | — | — | Front Right Upper | — |
| 1990 | Isuzu | Pickup | — | 4WD | — | — | Front Right Upper | — |
| 1989 | Isuzu | Amigo | — | — | — | — | Front Right Upper | — |
| 1989 | Isuzu | Pickup | — | 4WD | — | — | Front Right Upper | — |
| 1988 | Isuzu | Pickup | — | 4WD | — | — | Front Right Upper | — |
