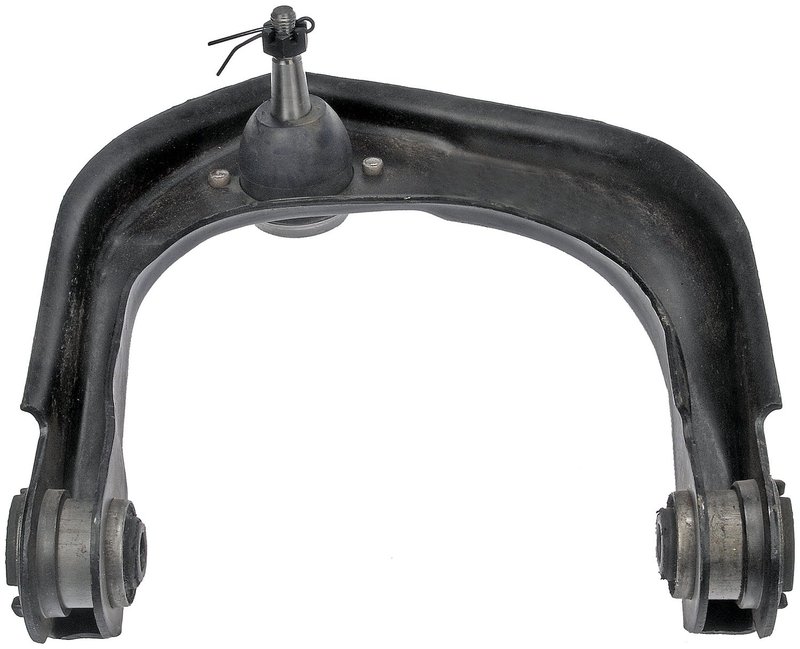

Dorman 522-774 Suspension Control Arm and Ball Joint Assembly - Front Right Upper

Overview of Dorman Suspension Control Arm and Ball Joint Assembly

The Dorman 522-774 suspension control arm and ball joint assembly is designed specifically for Chevrolet Camaro and Pontiac Firebird models. This pre-greased, stamped steel control arm offers a reliable replacement solution for light suspension applications, ensuring proper vehicle handling and alignment.

• Pre-greased for immediate use
• Includes rubber bushings and mounting hardware
• Stamped steel construction with black finish
• Bolt-in ball joint with threaded stud (14 mm thread diameter)
• Compatible with Chevrolet Camaro and Pontiac Firebird

Detailed Product Features and Specifications

This suspension control arm assembly from Dorman features a stamped steel control arm measuring up to 288.5 mm in width and 237 mm in length, finished in black for corrosion resistance. The assembly includes rubber bushings to absorb road vibrations and reduce noise, enhancing ride comfort. The ball joint is pre-installed and pre-greased, eliminating the need for additional lubrication during installation. The ball joint mounting type is bolt-in with a threaded stud, providing secure attachment and ease of replacement. Mounting hardware is included, and the control arm has one mounting hole with a diameter of 12.3 mm, designed for a straightforward bolt-in installation. This assembly is intended for light suspension grade applications, suitable for regular driving conditions.

Compatible Vehicles and Applications

This Dorman suspension control arm and ball joint assembly (part number 522-774) is compatible with the following vehicles:

• Chevrolet Camaro
• Pontiac Firebird

It is engineered to restore proper suspension geometry and improve steering response on these models.

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing excessive play
• Faulty ball joints leading to steering instability
• Uneven tire wear due to misaligned suspension components
• Clunking noises from suspension under load
• Reduced handling performance and vehicle control

Installation Notes and Tips

Installation of the Dorman 522-774 control arm assembly requires basic suspension knowledge and tools. Since the ball joint is pre-installed and pre-greased, no additional lubrication is necessary. Ensure the mounting hole aligns properly with the vehicle frame and torque all bolts to manufacturer specifications. It is recommended to perform a wheel alignment after installation to maintain proper suspension geometry and tire wear.

Quality Assurance and Warranty

Dorman suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The 522-774 control arm and ball joint assembly undergoes rigorous quality checks to ensure durability and performance. This product includes a limited warranty covering defects in materials and workmanship under normal use.
