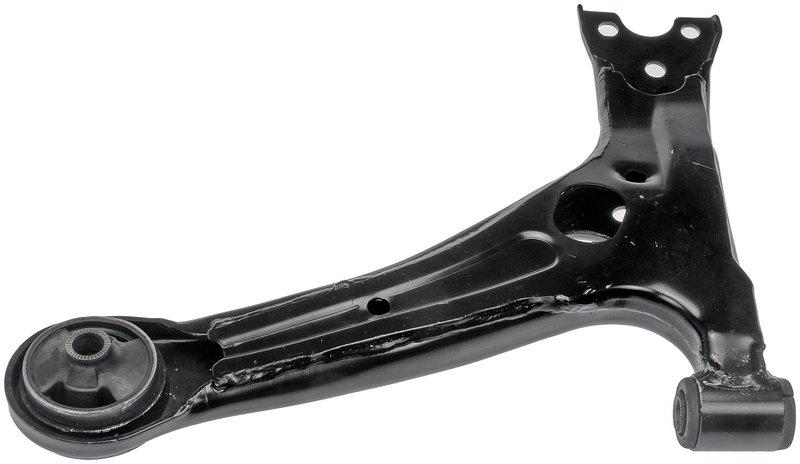

Dorman 522-986 Suspension Control Arm - Front Right Lower

Durable Suspension Control Arm for Toyota Corolla and Pontiac Vibe

The Dorman 522-986 suspension control arm is engineered to provide reliable performance for select Toyota and Pontiac models. Designed with a boxed steel construction and coated finish, this control arm offers strength and corrosion resistance for long-lasting use.

• Constructed from durable steel with a coated black finish
• Boxed construction enhances structural integrity
• Includes rubber bushing with black color for vibration dampening
• Overall length of 262.5 mm with a 14.3 mm inside diameter bushing
• Welded ball joint mounting type with threaded stud (ball joint not included)
• Compatible with Toyota Corolla, Matrix, and Pontiac Vibe models

Technical Details and Construction

This suspension control arm features a boxed steel design that improves rigidity and durability under normal driving conditions. The black coated finish helps resist rust and corrosion, extending the service life of the component. It includes a rubber bushing designed to absorb road vibrations and reduce noise, with precise dimensions including a 14.3 mm inside diameter and 39.6 mm outside diameter. The ball joint mounting is welded with a threaded stud type, though the ball joint itself is not included with this part. The control arm measures 262.5 mm in overall length and uses a press-in type for the second end connection.

Compatible Vehicles and Applications

This Dorman control arm, part number 522-986, is compatible with the following vehicles:

• Toyota Corolla
• Toyota Matrix
• Pontiac Vibe

It is designed to replace worn or damaged suspension control arms on these models, restoring proper suspension geometry and handling characteristics.

Common Issues Addressed by This Control Arm

• Excessive suspension noise or clunking
• Uneven tire wear due to misalignment
• Loose or unstable steering feel
• Vibration or harshness from worn bushings
• Damaged or bent control arm from road impacts

Installation Notes and Tips

Installation of the Dorman 522-986 control arm requires basic suspension knowledge and tools. Since the ball joint is not included, ensure the existing ball joint is inspected and replaced if necessary. The control arm comes with bushings installed but does not include mounting hardware, so retain or replace bolts as needed. Proper torque specifications should be followed to maintain suspension safety and performance. Alignment is recommended after installation to ensure correct handling.

Quality Assurance and Warranty

Dorman suspension components are manufactured to meet or exceed OEM standards for fit and function. The 522-986 control arm is constructed from quality materials with a coated finish to resist corrosion. While specific warranty details are not provided here, Dorman typically offers limited warranties on their suspension parts. Verify warranty terms with the product documentation or supplier.
