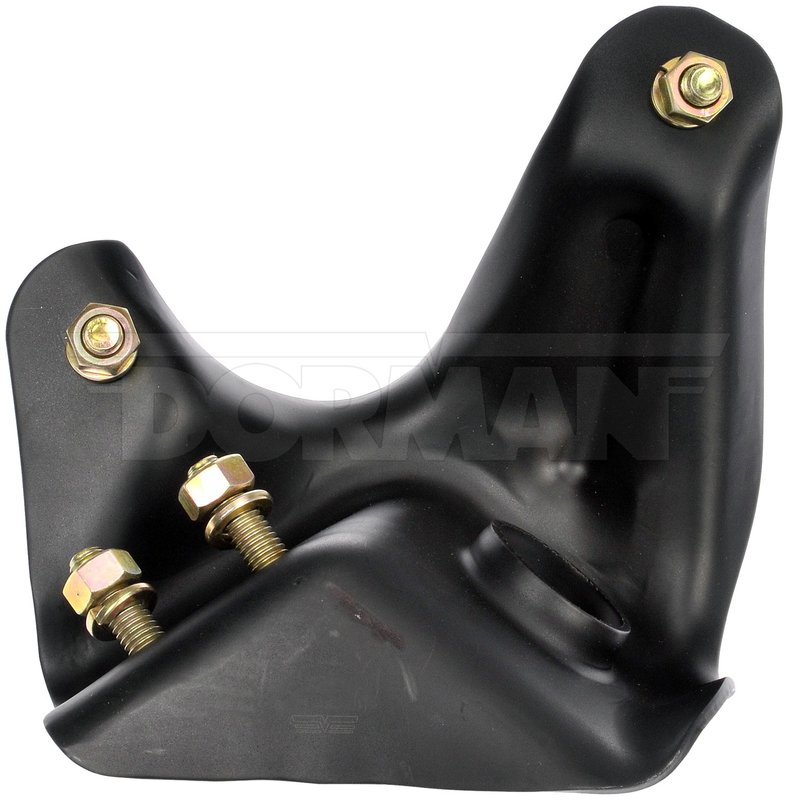

Dorman 523-020 Radius Arm Bracket - Right

Reliable Radius Arm Bracket for Ford Bronco and F-Series Trucks

The Dorman 523-020 Radius Arm Bracket is engineered to provide durable suspension support for Ford Bronco, F-100, F-150, F-250, and F-350 models. Constructed from sturdy steel with a black finish, this bracket ensures a secure fit and long-lasting performance in demanding driving conditions.

• Made from high-strength steel for durability
• Measures 11 inches in length, 9 inches in width, and 4.2 mm in thickness
• Black finish for corrosion resistance
• Round shape with a single mounting hole (11.6 mm diameter)
• Includes mounting hardware for straightforward installation
• Non-adjustable design for consistent fitment

Durable Steel Construction and Precise Dimensions

This radius arm bracket is crafted from robust steel, providing the necessary strength to support suspension components on Ford Bronco and F-Series trucks. The bracket’s dimensions—11 inches long, 9 inches wide, and 4.2 mm thick—are designed to match factory specifications, ensuring proper alignment and stability. Its round shape and single mounting hole with an 11.6 mm diameter facilitate a secure attachment point. The black coating offers additional protection against rust and wear, extending the bracket’s service life.

Compatible Ford Models and Part Number Details

The Dorman 523-020 Radius Arm Bracket is compatible with multiple Ford models, including Bronco, F-100, F-150, F-250, and F-350. This part number is specifically designed to meet the suspension requirements of these vehicles, making it a reliable replacement option for maintaining proper suspension geometry and vehicle handling.

Common Suspension Issues Addressed

• Worn or damaged radius arm brackets causing suspension misalignment
• Corrosion or rust compromising bracket integrity
• Loose or broken mounting points affecting ride stability
• Replacement needed after collision or off-road damage
• Improper fitment from aftermarket parts causing handling issues

Installation Notes and Tips

Installation of the Dorman 523-020 Radius Arm Bracket includes all necessary mounting hardware for a complete replacement. Ensure the vehicle is securely lifted and supported before beginning work. Align the bracket carefully with the suspension components and torque mounting bolts to manufacturer specifications. Since this bracket is non-adjustable, verify fitment prior to final tightening to avoid misalignment.

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 523-020 Radius Arm Bracket undergoes quality inspections to ensure proper fit and function. This part is backed by Dorman’s limited warranty, covering defects in material and workmanship under normal use.
