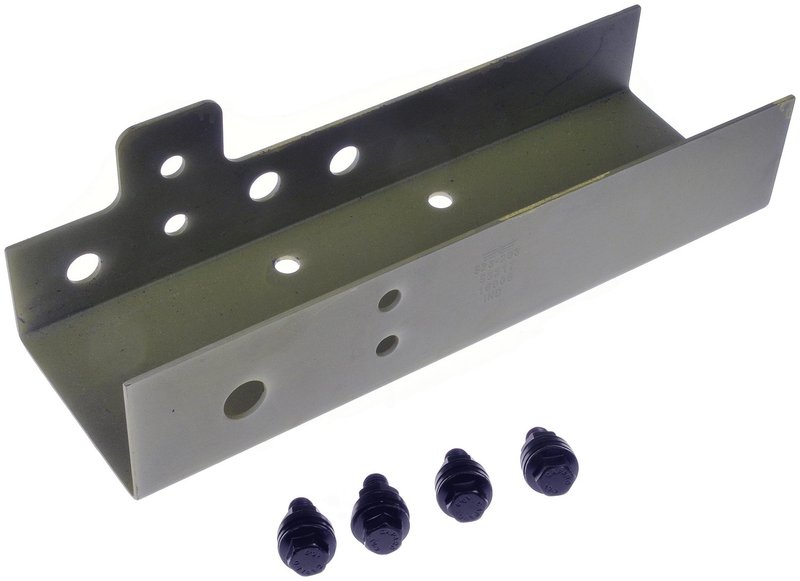

Dorman 523-203 Frame Repair Kit - Rear Right

Durable Frame Repair Kit for Ford Ranger

The Dorman 523-203 Frame Repair Kit is designed specifically for Ford Ranger models, providing a reliable solution for frame damage repair. Constructed from high-quality steel, this one-piece frame repair kit offers a straightforward installation without the need for drilling or cutting.

Key Features of the Dorman 523-203 Frame Repair Kit

• Material: Heavy-duty steel for strength and durability
• Color: Natural steel finish
• Configuration: One-piece design for ease of use
• No drilling or cutting required during installation
• Includes bracket with dimensions 15.5" length, 5.25" width, and 4.5" depth
• Bracket shape: Straight for precise fitment
• Bolt grade 10.9 for secure fastening
• Package includes 1 frame and 4 screws
• Specific fitment for Ford Ranger models

Detailed Description of the Frame Repair Kit

The Dorman 523-203 Frame Repair Kit is engineered to restore the structural integrity of the Ford Ranger’s frame. Made from 0.12-inch thick steel, the kit’s bracket is designed with exact dimensions to match the vehicle’s frame contours. Its straight bracket shape and included high-grade bolts ensure a secure and stable repair. The natural steel finish allows for easy painting or coating after installation. This kit eliminates the need for drilling or cutting, simplifying the repair process and reducing installation time.

Common Applications and Repair Uses

• Repairing frame damage caused by minor collisions or impacts
• Reinforcing weakened or rusted frame sections on Ford Ranger trucks
• Restoring frame alignment and structural support
• Replacing corroded or bent frame brackets
• Addressing frame issues without extensive modification

Installation Notes and Tips

• Compatible specifically with Ford Ranger models; verify vehicle year and frame condition before installation
• No drilling or cutting required, which helps maintain frame integrity
• Use the included grade 10.9 bolts for proper torque and secure fit
• Ensure the frame surface is clean and free of rust before mounting the bracket
• Painting or coating the natural steel bracket after installation is recommended to prevent corrosion

Quality Assurance and Warranty Information

Dorman manufactures the 523-203 Frame Repair Kit to meet industry standards for durability and fitment. The steel construction and included hardware are designed to provide a long-lasting repair solution for Ford Ranger frames. While specific warranty details are not provided, Dorman products typically come with a limited warranty against defects in material and workmanship. For exact warranty terms, consult Dorman’s official documentation.
