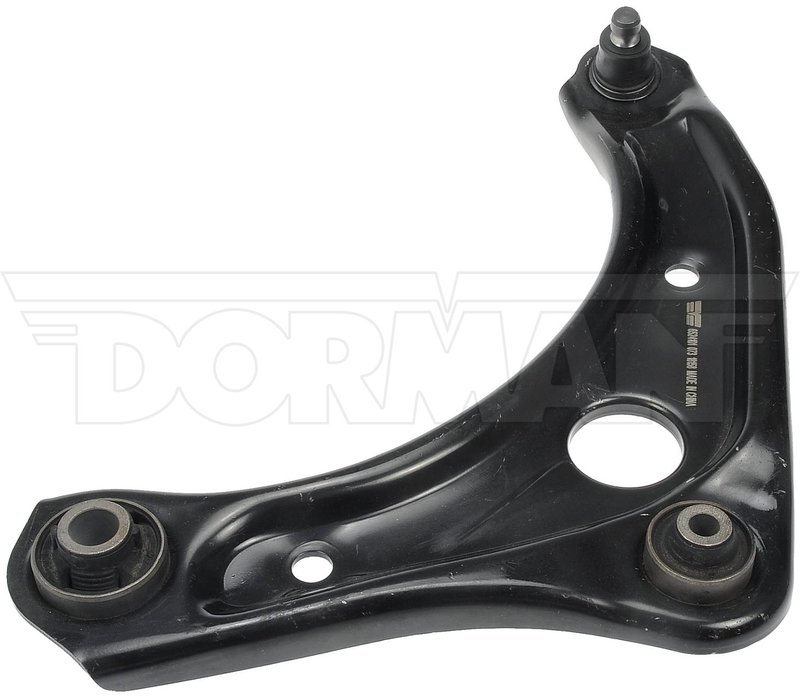

Dorman 524-101 Suspension Control Arm and Ball Joint Assembly - Front Left Lower
| Brand | Dorman 524-101 |
|---|---|
| Position | Front Left Lower |
| Adjustable | No |
| Ball Joint Included | Yes |
| Ball Joint Installed | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Pinch |
| Ball Joint Thread Diameter | 14 |
| Bushing Material | Rubber |
| Bushings Included | Yes |
| Control Arm Color | Black |
| Control Arm Material | Steel |
| Control Arm Maximum Length | 237 |
| Control Arm Maximum Width | 288.5 |
| Control Arm Type | Stamped |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Mounting Hardware Included | Yes |
| Mounting Hole Diameter | 12.3 mm |
| Mounting Hole Quantity | 1 |
| Package Contents | Control Arm and Ball Joint Assembly |
| Pre-Greased | Yes |
| Suspension Grade Type | Light |
| Fits | Nissan · 20 vehicles |
Direct replacement. Matches the original equipment design for straightforward installation.
Stamped steel construction. Delivers a durable control arm with a black finish.
Preassembled assembly. Includes bushings, ball joint, and mounting hardware.
Cross-references Beck/Arnley 102-7697, Centric Parts 622.42115 and Delphi TC2682 for the same application. See all 10.
Dorman 524-101 Control Arm Assembly
Dorman 524-101 is a direct replacement suspension control arm and ball joint assembly for specific Nissan applications. It is built for the front left lower position and supports smooth ride quality, directional stability, and predictable steering response.
Compatible with 2012-2019 Nissan Versa, 2014-2019 Nissan Versa Note, and 2014-2019 Nissan Note, this OE-style assembly is a practical solution when the original control arm shows wear at the bushings or ball joint.
Key Features
- Direct replacement for the original equipment control arm and ball joint assembly
- Fits the front left lower suspension position
- Steel stamped control arm with black finish
- Pre-greased ball joint with press-in mounting design
- Rubber bushings included for suspension isolation
- Ball joint is installed and mounting hardware is included
- Regular grade, light suspension application
Detailed Description
This Dorman suspension control arm assembly is engineered for Nissan Versa, Versa Note, and Note models that use a front left lower control arm. The stamped steel construction, rubber bushings, and installed ball joint help restore suspension geometry and steering feel after wear, impact damage, or bushing deterioration. Part number 524-101 is a direct-fit replacement for the original assembly on the listed vehicles, making it a straightforward option for front suspension service.
This part cross-references MOOG Chassis Products RK621577 for the same application.
What It Helps Address
- Clunking or knocking from a worn lower control arm
- Loose or inconsistent steering response
- Uneven tire wear related to suspension wear
- Excessive play from deteriorated bushings or ball joint wear
- Front-end instability after suspension component fatigue
Installation Notes and Tips
Install on the front left lower position only. Because the ball joint is press-in and already installed, verify the mounting points, pinch-style stud interface, and hole diameter before installation. A professional alignment is recommended after replacement to confirm proper suspension geometry. Part number 524-101 should be matched to the vehicle application by year, make, model, and position before service.
Quality Assurance
Dorman uses an industry-leading evaluation process for this control arm and ball joint assembly to help deliver consistent ride quality, directional stability, and predictable dynamics. The assembly is pre-greased and supplied as a direct replacement for the original equipment design on the listed Nissan applications.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Nissan | Note | — | Front Left Lower | — |
| 2019 | Nissan | Versa | — | Front Left Lower | — |
| 2019 | Nissan | Versa Note | — | Front Left Lower | — |
| 2018 | Nissan | Note | — | Front Left Lower | — |
| 2018 | Nissan | Versa | — | Front Left Lower | — |
| 2018 | Nissan | Versa Note | — | Front Left Lower | — |
| 2017 | Nissan | Note | — | Front Left Lower | — |
| 2017 | Nissan | Versa | — | Front Left Lower | — |
| 2017 | Nissan | Versa Note | — | Front Left Lower | — |
| 2016 | Nissan | Note | — | Front Left Lower | — |
| 2016 | Nissan | Versa | — | Front Left Lower | — |
| 2016 | Nissan | Versa Note | — | Front Left Lower | — |
| 2015 | Nissan | Note | — | Front Left Lower | — |
| 2015 | Nissan | Versa | — | Front Left Lower | — |
| 2015 | Nissan | Versa Note | — | Front Left Lower | — |
| 2014 | Nissan | Note | — | Front Left Lower | — |
| 2014 | Nissan | Versa | — | Front Left Lower | — |
| 2014 | Nissan | Versa Note | — | Front Left Lower | — |
| 2013 | Nissan | Versa | — | Front Left Lower | — |
| 2012 | Nissan | Versa | Sedan | Front Left Lower | — |
