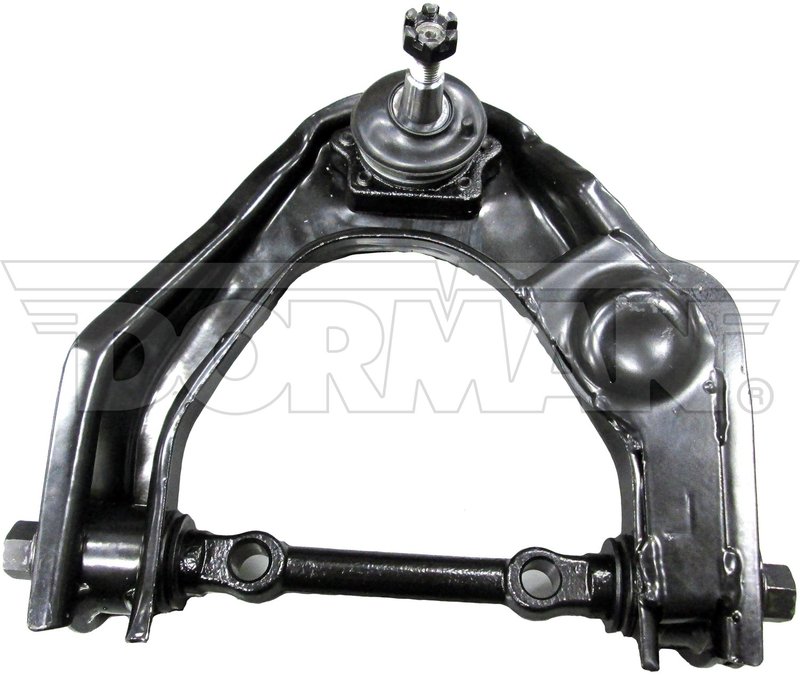

Dorman 524-470 Suspension Control Arm and Ball Joint Assembly - Front Right Upper

Durable Suspension Control Arm and Ball Joint Assembly

The Dorman 524-470 suspension control arm and ball joint assembly is engineered for Nissan D21, Pathfinder, and Pickup models. Designed with pre-greased components and included grease fittings, this assembly ensures smooth suspension performance and easier maintenance.

• Pre-greased for immediate use and reduced maintenance
• Includes grease fitting for convenient lubrication
• Constructed from stamped steel for strength and durability
• Rubber bushings included to absorb road vibrations
• Bolt-in ball joint with threaded stud for secure mounting
• Mounting hardware included for straightforward installation
• Compatible with Nissan D21, Pathfinder, and Pickup vehicles

Product Features and Specifications

This suspension control arm and ball joint assembly (part number 524-470) features a stamped steel control arm finished in black for corrosion resistance. The assembly includes rubber bushings that help reduce noise and vibration, enhancing ride comfort. The ball joint is pre-installed and features a threaded stud with a 14 mm thread diameter, secured by a bolt-in mounting type. The control arm measures up to 288.5 mm in width and 237 mm in length, with a single mounting hole of 12.3 mm diameter. This light suspension grade component is designed for regular use and includes all necessary mounting hardware for a complete replacement.

Compatible Nissan Models and Applications

This Dorman suspension control arm and ball joint assembly is compatible with Nissan D21, Pathfinder, and Pickup models. It is designed to restore proper suspension geometry and improve handling characteristics for these vehicles. The part number 524-470 ensures you receive the correct fitment for your Nissan model, maintaining factory specifications.

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing steering instability
• Loose or failing ball joints leading to uneven tire wear
• Excessive suspension noise or vibration
• Misalignment affecting vehicle handling and safety
• Corroded or weakened control arm compromising suspension integrity

Installation Notes and Tips

Installation of the Dorman 524-470 assembly requires basic suspension knowledge and tools. The included mounting hardware simplifies the replacement process. Since the ball joint is pre-installed and the control arm is pre-greased with a grease fitting, lubrication during installation is straightforward. Ensure proper torque specifications are followed for mounting bolts and ball joint fasteners. It is recommended to have a professional alignment performed after installation to maintain optimal handling.

Quality Assurance and Warranty

Dorman suspension components are manufactured to meet or exceed OEM standards. The 524-470 control arm and ball joint assembly undergoes rigorous quality checks to ensure durability and performance. This part comes with a limited warranty covering defects in materials and workmanship, providing confidence in your suspension repair.
