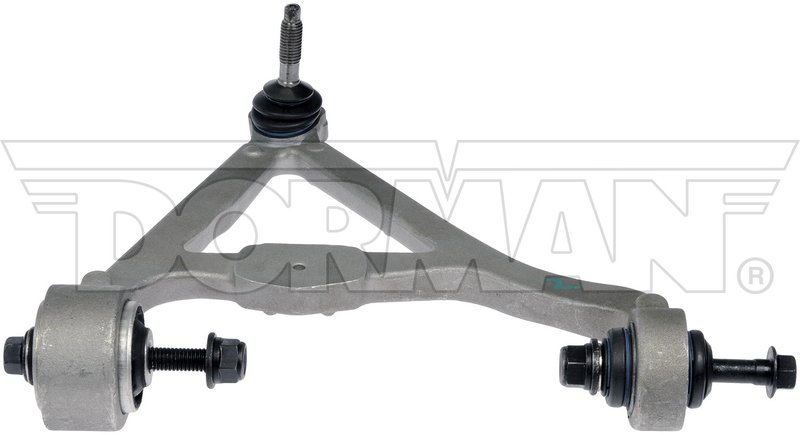

Dorman 524-751 Suspension Control Arm and Ball Joint Assembly - Rear Left Upper

Overview of Dorman Suspension Control Arm and Ball Joint Assembly

The Dorman 524-751 suspension control arm and ball joint assembly is engineered for Jaguar XF, XFR, XFR-S, and XJ models. This pre-greased, aluminum control arm assembly is designed to provide reliable suspension performance with included bushings and mounting hardware for a straightforward installation.

• Pre-greased for immediate use without additional lubrication
• Includes rubber bushings for vibration dampening
• Machined ball joint with threaded stud for secure mounting
• Constructed from durable aluminum with casting/forged control arm type
• Includes mounting hardware and two mounting holes (12.1 mm diameter)
• Standard light suspension grade suitable for Jaguar luxury sedans
• Ball joint installed and ready for installation
• Silver finish control arm with maximum length of 310 mm and width of 300 mm

Detailed Product Description

The Dorman 524-751 suspension control arm and ball joint assembly is specifically designed for Jaguar XF, XFR, XFR-S, and XJ vehicles, ensuring compatibility and proper fitment. The control arm is made from aluminum, combining strength and lightweight properties to maintain suspension integrity and vehicle handling. The assembly comes pre-greased, eliminating the need for additional lubrication during installation. Rubber bushings are included to reduce noise and absorb road vibrations, enhancing ride comfort. The machined ball joint with a threaded stud provides a secure and precise connection to the suspension system. This assembly includes all necessary mounting hardware and features two mounting holes with a diameter of 12.1 mm, facilitating a direct replacement process.

Common Applications and Issues Addressed

• Replacement for worn or damaged suspension control arms on Jaguar XF, XFR, XFR-S, and XJ
• Resolves issues related to suspension noise caused by deteriorated bushings
• Addresses steering instability due to ball joint wear
• Corrects uneven tire wear resulting from faulty control arm components
• Improves overall suspension alignment and vehicle handling

Installation Notes and Tips

• Verify vehicle compatibility with Jaguar XF, XFR, XFR-S, or XJ before installation
• Ensure the control arm and ball joint assembly is pre-greased; no additional lubrication needed
• Use included mounting hardware and torque bolts to manufacturer specifications
• Inspect suspension components for additional wear during installation
• Professional alignment is recommended after installation to maintain proper suspension geometry

Quality Assurance and Warranty

Dorman suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The 524-751 control arm and ball joint assembly undergoes rigorous quality control to ensure durability and performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or Dorman directly for exact warranty terms.
