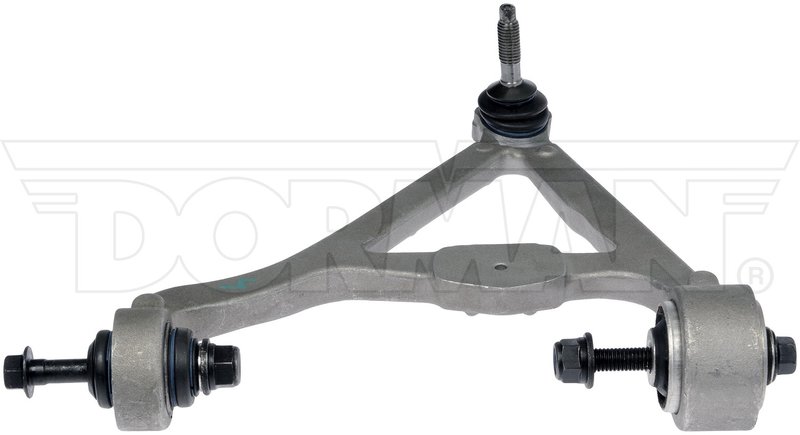

Dorman 524-752 Suspension Control Arm and Ball Joint Assembly - Rear Right Upper

Reliable Suspension Control Arm and Ball Joint Assembly

The Dorman 524-752 suspension control arm and ball joint assembly is engineered for Jaguar XF, XFR, XFR-S, and XJ models. Designed with durable aluminum construction and pre-greased components, this assembly ensures consistent suspension performance and handling precision.

• Pre-greased for immediate use without additional lubrication
• Includes rubber bushings for vibration dampening
• Machined ball joint mounting with threaded stud for secure fit
• Constructed from lightweight aluminum with casting/forged design
• Compatible with Jaguar XF, XFR, XFR-S, and XJ vehicles
• Includes mounting hardware for straightforward installation
• Control arm dimensions: maximum length 310 mm, maximum width 300 mm
• Silver finish for corrosion resistance and durability

Durable Design and Material Specifications

This suspension control arm and ball joint assembly (part number 524-752) features a casting and forged aluminum control arm that balances strength and weight reduction. The assembly comes pre-greased, eliminating the need for initial lubrication, and includes rubber bushings that help absorb road vibrations and reduce noise. The ball joint is installed and features a machined mounting type with a 12 mm threaded stud, ensuring a precise and secure connection to the suspension system. With two mounting holes sized at 12.1 mm diameter, this assembly fits securely on compatible Jaguar models.

Compatible Jaguar Models and Applications

This Dorman suspension control arm and ball joint assembly is specifically designed for Jaguar XF, XFR, XFR-S, and XJ vehicles. It is ideal for replacing worn or damaged suspension components to restore proper steering control and vehicle stability. The part number 524-752 ensures compatibility and quality fitment for these models.

• Corrects suspension noise and vibration issues
• Addresses uneven tire wear caused by faulty control arms
• Restores proper wheel alignment and handling response
• Eliminates looseness or play in the front suspension
• Replaces damaged or worn ball joints for improved safety

Installation Notes and Tips

Installation of the Dorman 524-752 control arm and ball joint assembly requires basic suspension knowledge and tools. Since the ball joint is pre-installed and the control arm is pre-greased, the assembly is ready for immediate installation. Ensure the mounting holes align correctly with the vehicle’s suspension points and torque all fasteners to manufacturer specifications. This assembly is not adjustable, so proper alignment should be verified after installation.

Quality Assurance and Warranty

Dorman suspension components are manufactured to meet or exceed OEM standards. The 524-752 control arm and ball joint assembly undergoes rigorous quality checks to ensure durability and performance. While specific warranty details are not provided here, Dorman typically offers limited warranties on suspension parts to cover defects in materials and workmanship.
