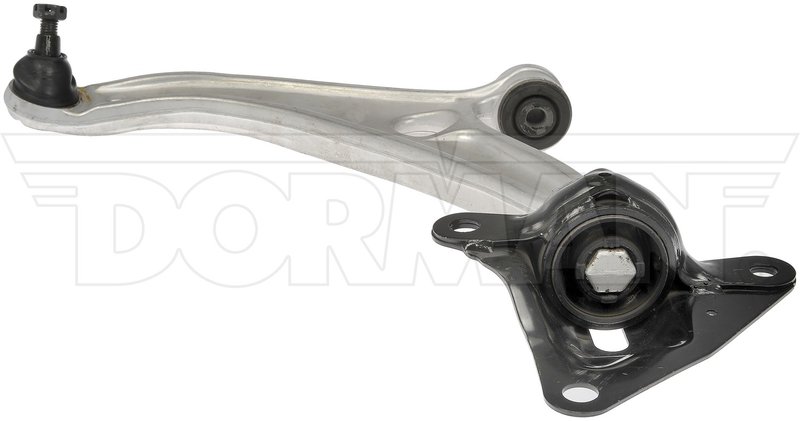

Dorman 524-823 Suspension Control Arm and Ball Joint Assembly - Front Left Lower
| Brand | Dorman 524-823 |
|---|---|
| Position | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Light |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press in |
| Ball Joint Stud Type | Threaded |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 302 |
| Control Arm Color | Silver |
| Ball Joint Thread Diameter | 17.4 |
| Ball Joint Stud Length | 21.5 |
| Control Arm Maximum Length | 355 |
| Bushing Material | Rubber |
| Bushing Material | Steel |
| Ball Joint Included | Yes |
| Ball Joint Installed | Yes |
| Control Arm Type | Casting/forged |
| Grade Type | Regular |
| Mounting Hole Diameter | 14.2 mm |
| Package Contents | 1 control arm; 1 ball joint; 1 castle nut; 1 cotter pin |
| Fits | Honda · 3 vehicles |
Direct replacement. Matches the original suspension assembly layout for straightforward service.
Pre-greased assembly. Arrives with the ball joint installed to simplify preparation.
Steel construction. Casting/forged design with rubber and steel bushings for suspension support.
Cross-references Beck/Arnley 102-8036, Delphi TC2573 and 51360TM8A01 for the same application. See all 5.
Overview
Dorman 524-823 is a direct replacement suspension control arm and ball joint assembly for specific applications. It is built for drivers who need restored suspension geometry, stable handling, and consistent ride quality on compatible Honda Insight models.
Key Features
- Direct replacement design for the original equipment assembly
- Steel control arm construction with a casting/forged design
- Pre-greased assembly with the ball joint installed
- Rubber and steel bushings included for suspension support
- Press-in ball joint with threaded stud design
- Mounting hardware included for installation
Detailed Description
This Dorman suspension control arm and ball joint assembly, part number 524-823, is engineered as an OE-style replacement for the front left lower suspension position on 2012-2014 Honda Insight models. The assembly uses a steel control arm with a silver finish, pre-greased components, and a press-in ball joint to match the original suspension layout. Dorman’s evaluation process is used to verify fit and function so the assembly supports smooth ride behavior, directional stability, and predictable suspension response. This part cross-references Beck/Arnley 102-8036 and Delphi TC2573 for the same application.
What It Helps Address
- Excessive suspension play from a worn control arm assembly
- Noisy or loose front suspension operation
- Uneven steering response caused by worn ball joint components
- Reduced directional stability during normal driving
- Ride quality issues related to deteriorated bushings
Installation Notes
Fits 2012-2014 Honda Insight, front left lower. Verify mounting hole diameter, arm dimensions, and ball joint style before installation. The assembly includes mounting hardware, and the ball joint is already installed. Professional installation and a post-installation alignment are recommended after suspension replacement.
Quality Assurance
Dorman positions this assembly as a direct replacement part for specific vehicle applications and subjects it to an industry-leading evaluation process to confirm fit and performance characteristics.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Honda | Insight | Front Left Lower | — |
| 2013 | Honda | Insight | Front Left Lower | — |
| 2012 | Honda | Insight | Front Left Lower | — |
