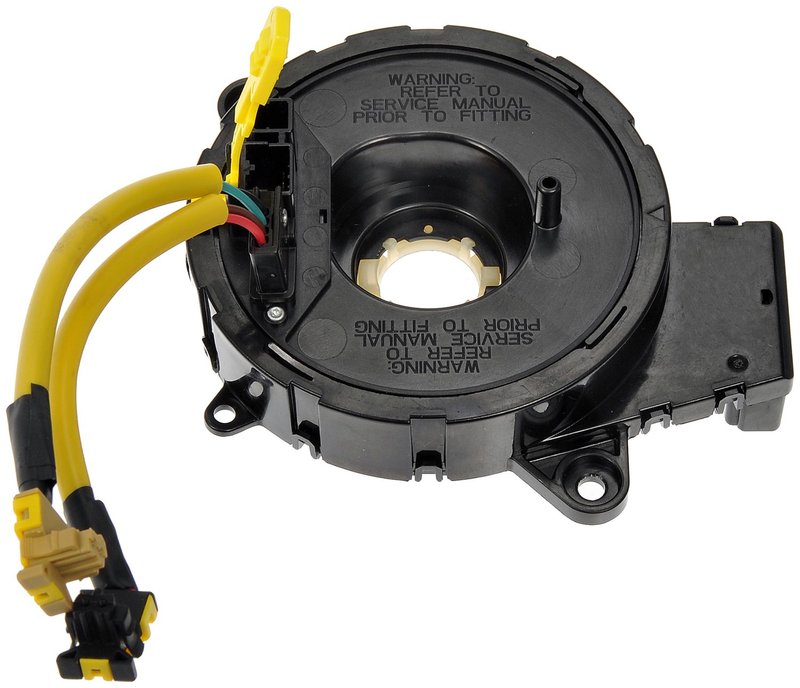

Dorman 525-101 Air Bag Clockspring
| Brand | Dorman 525-101 |
|---|---|
| Material | Plastic |
| Package Contents | Clock spring assembly |
| Fits | Chrysler and Dodge · 22 vehicles |
OE direct replacement. Installs into existing wiring to restore airbag system performance faster.
Plastic construction. A durable clockspring assembly for the air bag system.
Clock spring assembly. Directly replaces the original part for a straightforward repair.
Cross-references 8G1014, 4685712AC and CLS226 for the same application. See all 4.
Air Bag Clockspring for Chrysler and Dodge
Dorman 525-101 is an air bag clockspring replacement for specific Chrysler and Dodge vehicles. It installs into the existing wiring path to restore steering wheel electrical function and airbag system performance after a failed original unit.
Key Features
- Direct replacement air bag clockspring for select applications
- Plastic construction
- Includes clock spring assembly
- Restores continuity for steering wheel and airbag-related circuits
- Fits 2001-2005 Chrysler Town & Country, 2001-2005 Chrysler Voyager, 2001-2005 Dodge Caravan, 2001-2005 Dodge Grand Caravan, and 2001-2002 Chrysler Grand Voyager
Detailed Description
This Dorman 525-101 clockspring is built for vehicles that use a steering wheel-mounted electrical connection to support airbag system operation and related controls. By replacing the original clockspring with a direct-fit assembly, it helps return proper signal transfer through the steering column without requiring changes to the existing wiring layout. This part cross-references 8G1014 and 4685712AC for the same application.
Compatible With 2001-2005 Chrysler Town & Country, 2001-2005 Chrysler Voyager, 2001-2005 Dodge Caravan, 2001-2005 Dodge Grand Caravan, and 2001-2002 Chrysler Grand Voyager. The Dorman 525-101 is a practical OE-style replacement when the original clockspring has worn out or lost electrical continuity.
What It Helps Fix
- Airbag warning light caused by a failed clockspring
- Loss of steering wheel electrical signal transfer
- Intermittent horn or steering wheel control operation tied to the column circuit
- Open or damaged internal ribbon connection in the steering column
- Restoration needs after clockspring wear on Chrysler Town & Country and Dodge Caravan models
Installation Notes and Tips
Install the clockspring into the existing wiring path and follow the vehicle service procedure for steering column and airbag system service. Before removal or installation, disconnect the battery and observe all airbag safety steps. Verify the steering wheel is centered and the clockspring is properly aligned before final assembly.
Quality Assurance
Dorman supplies direct replacement parts engineered to match the original application requirements for specific vehicles. Part number 525-101 is built as a replacement clockspring assembly for the listed Chrysler and Dodge fitments.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Chrysler | Town & Country | N/A | — |
| 2005 | Chrysler | Voyager | N/A | — |
| 2005 | Dodge | Caravan | N/A | — |
| 2005 | Dodge | Grand Caravan | N/A | — |
| 2004 | Chrysler | Town & Country | N/A | — |
| 2004 | Chrysler | Voyager | N/A | — |
| 2004 | Dodge | Caravan | N/A | — |
| 2004 | Dodge | Grand Caravan | N/A | — |
| 2003 | Chrysler | Town & Country | N/A | — |
| 2003 | Chrysler | Voyager | N/A | — |
| 2003 | Dodge | Caravan | N/A | — |
| 2003 | Dodge | Grand Caravan | N/A | — |
| 2002 | Chrysler | Grand Voyager | N/A | — |
| 2002 | Chrysler | Town & Country | N/A | — |
| 2002 | Chrysler | Voyager | N/A | — |
| 2002 | Dodge | Caravan | N/A | — |
| 2002 | Dodge | Grand Caravan | N/A | — |
| 2001 | Chrysler | Grand Voyager | N/A | — |
| 2001 | Chrysler | Town & Country | N/A | — |
| 2001 | Chrysler | Voyager | N/A | — |
| 2001 | Dodge | Caravan | N/A | — |
| 2001 | Dodge | Grand Caravan | N/A | — |
