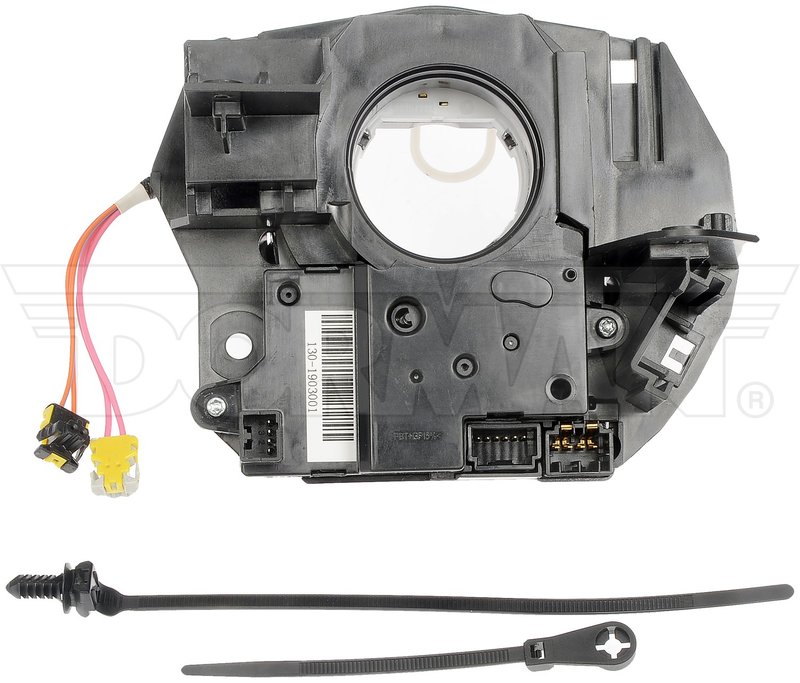

Dorman 525-130 Air Bag Clockspring

Reliable Air Bag Clockspring for Chrysler, Dodge, Ram, and Volkswagen

The Dorman 525-130 air bag clockspring is designed to maintain electrical connections for critical safety systems in select Chrysler, Dodge, Ram, and Volkswagen vehicles. This clockspring assembly supports cruise control functionality and ensures consistent communication between the steering wheel and vehicle electronics.

• Wiring harness length: 6.5 inches for optimal fitment
• Wire gauge measurement: 18 gauge for reliable signal transmission
• Includes 4 wires and 5 connectors with male and female terminal genders
• Blade terminal type with 4 to 6 terminal quantities for secure connections
• Constructed from durable plastic material for long-lasting performance
• Compatible with cruise control systems in applicable vehicles
• Connector colors include black and grey for easy identification

Detailed Product Description

The Dorman 525-130 air bag clockspring assembly is engineered to provide a stable electrical interface between the steering wheel and the vehicle’s airbag system, horn, and cruise control. With a wiring harness length of 6.5 inches and 18 gauge wire, this clockspring ensures consistent electrical flow and signal integrity. The assembly features multiple connectors—five in total—with both male and female terminal genders, and blade-type terminals that offer secure and reliable connections. The plastic construction balances durability with flexibility, making it suitable for the demanding environment inside the steering column.

This clockspring is specifically compatible with Chrysler C/V, Dodge Grand Caravan, Ram Town & Country, and Volkswagen Routan models, ensuring proper fit and function. The part number 525-130 corresponds to this exact configuration, making it a precise replacement for the original equipment.

Common Applications and Issues Addressed

• Restores airbag system electrical continuity after steering column repairs
• Resolves intermittent or non-functioning cruise control signals
• Fixes horn button electrical failures related to wiring harness damage
• Eliminates warning lights caused by faulty clockspring connections
• Supports safe deployment of airbags by maintaining circuit integrity

Installation Notes and Tips

• Ensure the steering wheel is centered before removing the old clockspring
• Handle the clockspring carefully to avoid damaging the internal wiring
• Verify connector colors and terminal types match the vehicle’s wiring harness
• Follow vehicle-specific service manual instructions for airbag system safety precautions
• Use the included instruction sheet for guidance during installation

Quality Assurance and Warranty

Dorman manufactures the 525-130 air bag clockspring to meet or exceed OEM specifications for fit, form, and function. The product undergoes rigorous quality control to ensure reliable performance in critical safety systems. While specific warranty details are not provided here, Dorman typically offers limited warranties on their replacement parts to cover defects in materials and workmanship.
