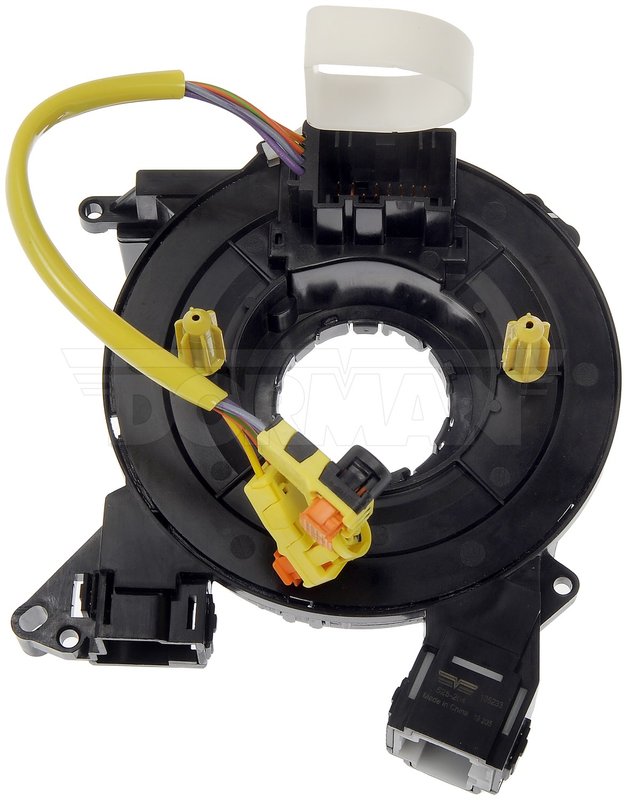

Dorman 525-204 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford and Lincoln Vehicles

The Dorman 525-204 air bag clockspring is designed to maintain electrical connections for critical safety systems in select Ford and Lincoln models. This clockspring supports cruise control functionality and ensures consistent communication between the steering wheel and vehicle electronics.

• Wiring harness length of 5.75 inches for precise fitment
• 16-gauge wire measurement for durable electrical performance
• Includes 4 wires and 10 terminals with pin-type connectors
• Compatible with cruise control systems
• Three female connectors and multiple male terminals for secure connections
• Constructed from durable plastic material for long-lasting use

Detailed Product Description

The Dorman 525-204 air bag clockspring is engineered to provide reliable electrical continuity for the air bag system and cruise control in various Ford and Lincoln vehicles, including the Continental, Edge, Fusion, MKC, MKZ, Mustang, and SSV Plug-In Hybrid models. Featuring a wiring harness length of 5.75 inches and 16-gauge wires, this clockspring assembly supports four wires and ten terminals, all utilizing pin-type connectors to ensure secure and stable connections. The product includes three female connectors with black connector colors, designed to integrate seamlessly with the vehicle's existing wiring harness. Its plastic construction offers durability while maintaining flexibility necessary for steering wheel rotation.

Common Applications and Issues Addressed

• Restores electrical connection for air bag deployment systems
• Resolves cruise control malfunctions related to wiring faults
• Fixes intermittent horn or steering wheel button failures
• Eliminates warning lights caused by faulty clockspring signals
• Prevents loss of communication between steering wheel controls and vehicle electronics

Installation Notes and Tips

When installing the Dorman 525-204 clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead to avoid damaging the internal wiring. Carefully disconnect the battery before beginning installation to prevent accidental air bag deployment. Verify connector colors and terminal types match the vehicle’s wiring harness for proper fitment. Handle the clockspring assembly gently to maintain the integrity of the internal wiring and connectors.

Quality Assurance and Warranty

Dorman manufactures the 525-204 air bag clockspring to meet or exceed OEM specifications for fit, form, and function. The plastic housing and high-quality wiring components are designed for durability and reliable performance. While specific warranty details are not provided, Dorman products typically come with a limited warranty covering defects in materials and workmanship.
