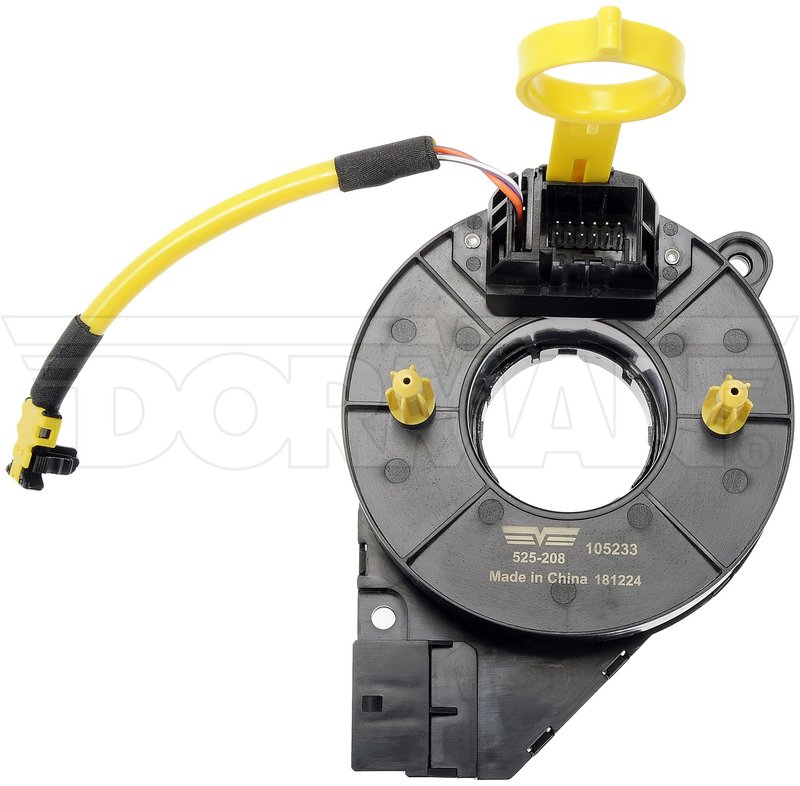

Dorman 525-208 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford F-Series Super Duty

The Dorman 525-208 air bag clockspring is designed to maintain electrical connections for the air bag system and cruise control in Ford F-250 and F-350 Super Duty trucks. This clockspring ensures consistent communication between the steering wheel and vehicle systems while allowing smooth steering wheel rotation.

• Compatible with Ford F-250, F-250 Super Duty, F-350, and F-350 Super Duty models
• Wiring harness length of 5.12 inches for precise fitment
• 12 and 16 terminal quantities with male pin-type connectors
• Supports cruise control functionality
• Durable metal and plastic construction for long-lasting performance

Product Features and Specifications

The Dorman 525-208 clockspring features a wiring harness length of 5.12 inches, providing an optimal connection span within the steering column assembly. It includes 12 and 16 male pin terminals distributed across a single male connector, ensuring secure and reliable electrical contact. The wire gauge measurement is 12, which supports the necessary current flow for air bag deployment and cruise control systems. Constructed from metal and plastic materials, this clockspring assembly balances durability with flexibility to withstand steering wheel movements.

Purpose and Common Applications

• Restores electrical connection for air bag deployment circuits
• Maintains cruise control signal transmission through the steering wheel
• Eliminates intermittent air bag warning lights caused by faulty clocksprings
• Prevents loss of horn and steering wheel control functions
• Resolves steering wheel electrical issues in Ford F-250 and F-350 Super Duty trucks

Installation Notes and Tips

When installing the Dorman 525-208 air bag clockspring, ensure the steering wheel is centered and the clockspring is aligned properly to avoid damage during rotation. Disconnect the vehicle battery before beginning installation to prevent accidental air bag deployment. Verify connector orientation and terminal engagement to maintain system integrity. Follow vehicle-specific service manual instructions for torque specifications and safety precautions.

Quality Assurance and Warranty

Dorman manufactures this clockspring assembly to meet or exceed OEM standards for fit, form, and function. The combination of metal and plastic materials provides durability under normal operating conditions. While specific warranty details are not provided, Dorman products typically come with a limited warranty covering defects in material and workmanship. Refer to Dorman’s official documentation for complete warranty information.
