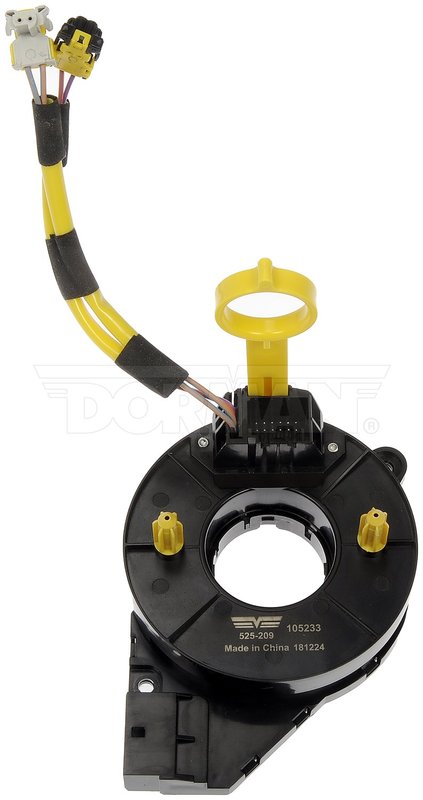

Dorman 525-209 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford and Lincoln Vehicles

The Dorman 525-209 air bag clockspring is designed to maintain electrical connections for critical safety systems in select Ford and Lincoln models. This clockspring assembly supports cruise control functions and ensures consistent communication between the steering wheel and vehicle electronics.

• Wiring harness length of 5.1 inches for precise fitment
• 16-gauge wire measurement for durable electrical performance
• Includes 4 wires and 4 connectors with male and female terminal genders
• Terminal types are pin style, with a total of 30 terminals across connectors
• Constructed from metal and plastic materials for strength and reliability

Detailed Product Description

The Dorman 525-209 air bag clockspring assembly is engineered to provide a secure and continuous electrical connection between the steering wheel and the vehicle’s airbag system, horn, and cruise control. Featuring a wiring harness length of 5.1 inches and 16-gauge wire, this clockspring supports reliable signal transmission. The assembly includes four wires and four connectors, with a combination of male and female terminal genders and pin-type terminals, totaling up to 30 terminals to accommodate various electrical pathways. The use of metal and plastic materials ensures durability and resistance to wear over time.

Compatible Vehicles and Applications

This clockspring is compatible with the following vehicles:

• Ford Aviator
• Ford Expedition
• Lincoln Navigator

It is specifically designed to maintain proper electrical connections for airbag deployment and cruise control functionality in these models.

Common Issues Addressed by This Clockspring

• Intermittent or non-functioning airbag warning lights
• Loss of cruise control operation
• Steering wheel horn failure
• Electrical connection faults within the steering column
• Steering wheel button malfunctions

Installation Notes and Tips

When installing the Dorman 525-209 clockspring, ensure the steering wheel is centered and the clockspring is aligned properly to avoid damage. Disconnect the vehicle battery before beginning installation to prevent accidental airbag deployment. Verify connector orientations by matching male and female terminals and colors (black and grey connectors) to ensure correct wiring harness connections.

Quality Assurance and Warranty

Dorman manufactures this clockspring assembly to meet or exceed OEM specifications, using quality metal and plastic components for durability. While specific warranty details are not provided here, Dorman products typically come with a limited warranty covering defects in materials and workmanship.
