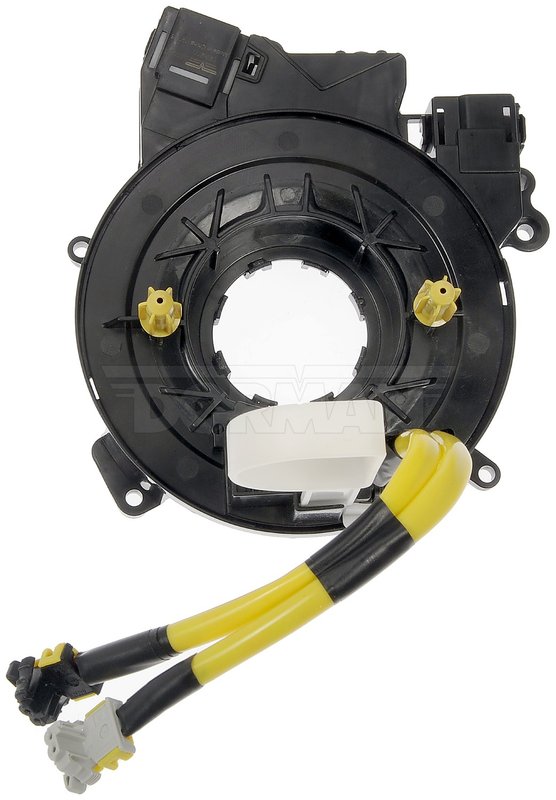

Dorman 525-211 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford F-150 and Lincoln Mark LT

The Dorman 525-211 air bag clockspring is designed to maintain electrical connections for your vehicle's airbag system while allowing the steering wheel to turn freely. Engineered for Ford F-150 and Lincoln Mark LT models, this clockspring supports essential functions including cruise control.

Key Features of the Dorman 525-211 Air Bag Clockspring

• Wiring harness length of 5.12 inches for precise fitment
• 16-gauge wire measurement ensuring durability and reliable signal transmission
• Supports cruise control functionality for compatible vehicles
• Includes multiple pin-type terminals: 14 at End 2, 8 at End 3, and 10 total terminals
• Two female connectors with black connector colors for secure connections
• Constructed from metal and plastic materials for strength and longevity
• Contains 4 wires and 2 connectors to maintain system integrity

Detailed Description of the Dorman 525-211 Clockspring

This clockspring assembly is specifically designed to maintain continuous electrical connections between the steering wheel and the vehicle’s airbag system, even while the wheel is turning. The Dorman 525-211 features a wiring harness length of 5.12 inches and uses 16-gauge wires, which provide a balance of flexibility and durability. The pin-type terminals and female connectors ensure secure and stable connections, critical for airbag deployment and cruise control operation. Compatible with Ford F-150 and Lincoln Mark LT models, this clockspring is built with metal and plastic components to withstand regular use and environmental factors.

Common Issues Addressed by This Air Bag Clockspring

• Intermittent or non-functioning airbag warning lights
• Loss of cruise control functionality during steering wheel movement
• Faulty horn or steering wheel controls due to broken wiring
• Steering wheel electrical connection failures causing safety system errors
• Wear and tear from repeated steering wheel rotation affecting airbag signals

Installation Notes and Tips

When installing the Dorman 525-211 clockspring, ensure the steering wheel is centered and the wheels are straight to avoid damaging the clockspring ribbon cable. Carefully disconnect the battery before beginning to prevent accidental airbag deployment. Verify connector orientations and terminal types match the vehicle’s specifications. Proper alignment during installation is critical to maintain full rotation capability and electrical continuity.

Quality Assurance and Warranty Information

Dorman manufactures this clockspring assembly to meet or exceed OEM standards for fit, form, and function. The combination of metal and plastic materials provides durability and reliable performance. While specific warranty details are not provided here, Dorman products typically come with a limited warranty covering defects in materials and workmanship.
