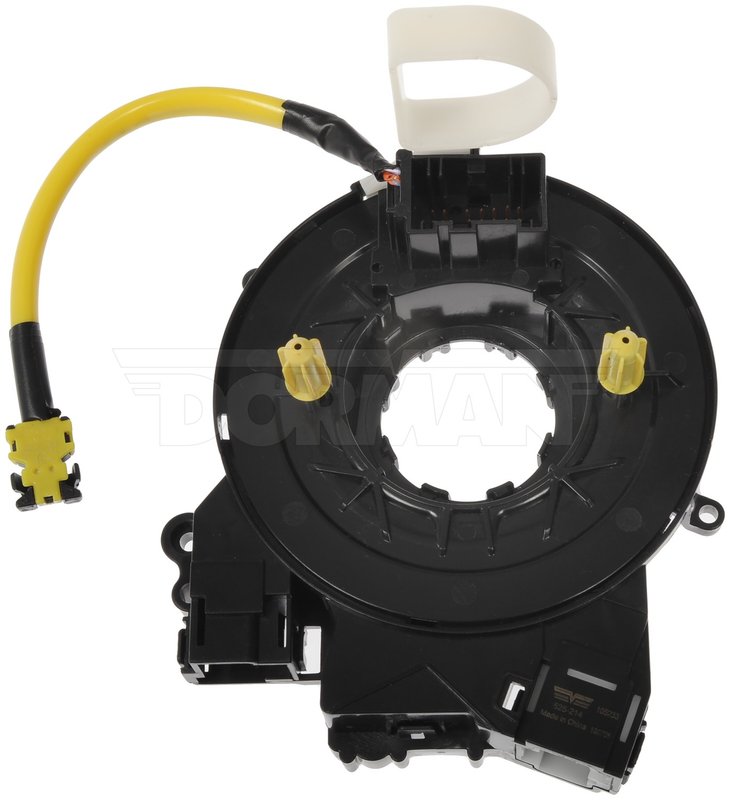

Dorman 525-214 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford F-250 and F-350 Super Duty

The Dorman 525-214 air bag clockspring is designed to maintain electrical connections for the air bag system and cruise control in Ford F-250 Super Duty, F-350, and F-350 Super Duty models. This clockspring assembly ensures consistent signal transmission while allowing the steering wheel to turn freely.

Key Features of the Dorman 525-214 Air Bag Clockspring

• Wiring harness length of 5.12 inches for optimal fitment
• 12-gauge wire measurement for reliable electrical conductivity
• Supports cruise control functionality
• Includes multiple terminal quantities (8, 10, and 14) for comprehensive connectivity
• Pin-type terminals with male and female connector genders
• Durable metal and plastic construction for long-lasting performance
• One clock spring assembly included per package

Detailed Description of the Air Bag Clockspring

The Dorman 525-214 clockspring is engineered to provide a secure and continuous electrical connection between the vehicle’s steering wheel and the air bag system, as well as cruise control components. Featuring a wiring harness length of 5.12 inches and 12-gauge wire, this clockspring supports the necessary current flow and signal integrity required for safe air bag deployment and cruise control operation. The assembly includes multiple terminal quantities (8, 10, and 14) with pin-type terminals, ensuring compatibility with the Ford F-250 Super Duty, F-350, and F-350 Super Duty models. The connectors come in both male and female genders with black and yellow end colors, facilitating proper installation and connection. Constructed from metal and plastic materials, this clockspring balances durability with flexibility to withstand steering wheel rotation and vehicle vibrations.

Common Issues Addressed by This Clockspring

• Intermittent or non-functioning air bag warning lights
• Loss of cruise control functionality during steering wheel movement
• Faulty horn or steering wheel button operation
• Electrical connection failures within the steering column
• Steering wheel controls not responding properly

Installation Notes and Tips

When installing the Dorman 525-214 air bag clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead to avoid damaging the clockspring ribbon cable. Disconnect the vehicle battery before beginning installation to prevent accidental air bag deployment. Carefully align the connectors by matching the male and female terminals and verify the wiring harness length fits without tension. Follow all manufacturer safety guidelines and torque specifications for steering column components.

Quality Assurance and Warranty Information

Dorman manufactures this clockspring assembly to meet or exceed OEM specifications for fit, form, and function. The combination of metal and plastic materials provides durability and reliable performance under normal operating conditions. While specific warranty details are not provided, Dorman products typically come with a limited warranty covering defects in material and workmanship. Consult the product packaging or Dorman’s official resources for exact warranty terms.
