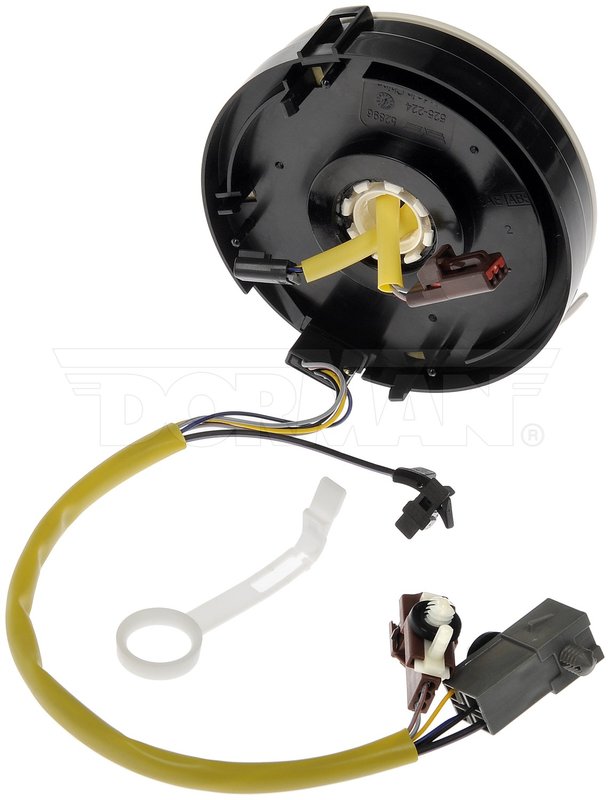

Dorman 525-224 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Mustang

The Dorman 525-224 air bag clockspring is designed to maintain electrical connections for your Ford Mustang's air bag system and cruise control. This essential component ensures consistent communication between the steering wheel and vehicle systems while allowing smooth rotation.

• Compatible with Ford Mustang models
• Wiring harness length of 15 inches for optimal fit
• Includes 12 wires with 12 and 18 gauge measurements
• Supports cruise control functionality
• Features 4 connectors and multiple pin terminals with male and female genders
• Durable plastic construction for long-lasting performance

Technical Details and Specifications

The Dorman 525-224 clockspring assembly features a 15-inch wiring harness that accommodates 12 wires, combining 12 and 18 gauge measurements to support various electrical signals. It includes four connectors with both male and female genders, ensuring proper integration with the vehicle's wiring system. The terminal types are pin-style, with multiple terminal quantities (2, 3, and 4) to match the Ford Mustang's factory specifications. The connectors come in black and brown colors for easy identification during installation. Constructed from durable plastic, this clockspring is engineered to withstand the rigors of daily driving while maintaining reliable electrical continuity.

Purpose and Common Applications

• Restores electrical connection for the air bag system in Ford Mustang vehicles
• Maintains cruise control signal transmission through the steering wheel
• Resolves issues related to air bag warning lights caused by faulty clocksprings
• Eliminates intermittent steering wheel controls malfunctions
• Prevents loss of horn functionality due to wiring faults

Installation Notes and Tips

When replacing the Dorman 525-224 air bag clockspring on a Ford Mustang, ensure the steering wheel is centered and the wheels are aligned straight ahead before removal. Handle the clockspring carefully to avoid damaging the wiring harness or connectors. Verify connector colors and terminal types match the vehicle’s factory wiring to ensure proper installation. It is recommended to disconnect the vehicle battery and wait several minutes before beginning work to prevent accidental air bag deployment.

Quality Assurance and Warranty

Dorman manufactures the 525-224 clockspring assembly to meet or exceed OEM standards for fit and function. The product undergoes rigorous quality control to ensure reliable performance in Ford Mustang air bag systems. While specific warranty details are not provided, Dorman products typically include a limited warranty against defects in materials and workmanship.
