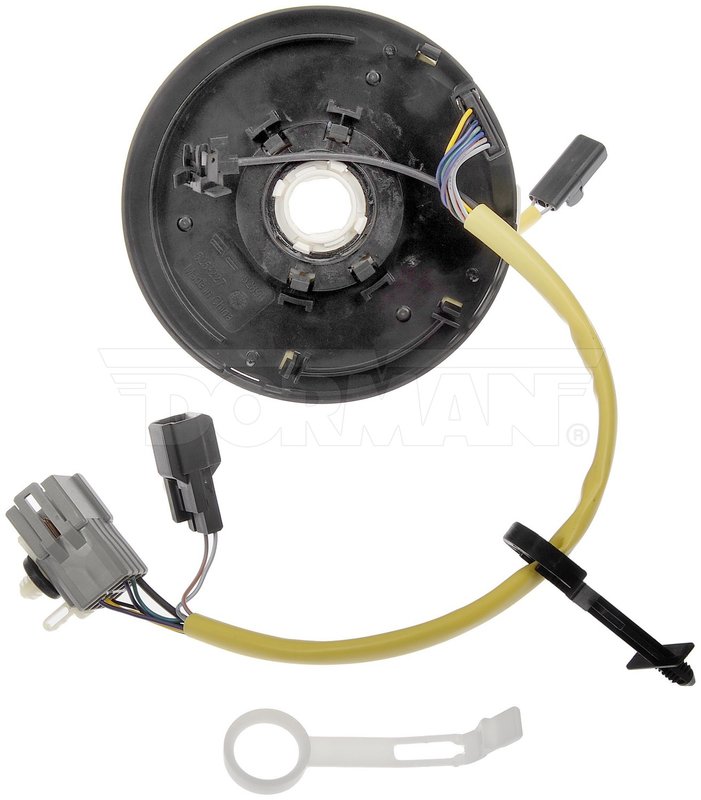

Dorman 525-227 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Excursion and Super Duty Trucks

The Dorman 525-227 air bag clockspring is designed to maintain electrical connections for your vehicle's air bag system while allowing the steering wheel to turn freely. Engineered for Ford Excursion, F-250, F-250 Super Duty, F-350, and F-350 Super Duty models, this clockspring ensures consistent performance and safety.

• Wiring harness length of 13 inches for optimal fitment
• 18-gauge wire measurement for reliable electrical conductivity
• Supports cruise control functionality
• Includes 10 wires and multiple connectors for comprehensive connectivity
• Features both male and female terminals with pin-type connections
• Constructed from durable plastic material
• Comes as a complete clock spring assembly

Technical Details and Compatibility

The Dorman 525-227 clockspring assembly is specifically designed for select Ford trucks, including the Excursion and various F-250 and F-350 Super Duty models. It features a 13-inch wiring harness and 18-gauge wires to ensure proper electrical flow. The assembly includes 10 wires, 3 connectors, and multiple terminals (both male and female) with pin-type terminals to maintain secure and stable connections. The connectors come in black and gray colors to match factory specifications. This clockspring supports cruise control systems, maintaining full functionality after replacement.

Common Applications and Problem Resolution

• Restores air bag system electrical continuity after steering wheel repairs
• Resolves issues with non-functioning cruise control due to faulty clockspring
• Eliminates intermittent air bag warning lights caused by damaged wiring
• Fixes steering wheel horn and control button malfunctions
• Addresses connector or terminal failures within the clockspring assembly

Installation Notes and Tips

When installing the Dorman 525-227 clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead to avoid damaging the assembly. Carefully disconnect the battery before beginning to prevent accidental air bag deployment. Verify connector colors and terminal types match the vehicle’s factory wiring harness for proper installation. Follow vehicle-specific service manual instructions for torque specifications and safety precautions.

Quality Assurance and Warranty

Dorman manufactures the 525-227 clockspring assembly to meet or exceed OEM standards for fit, form, and function. The plastic housing and wiring components are designed for durability and long service life. While specific warranty details are not provided here, Dorman products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
