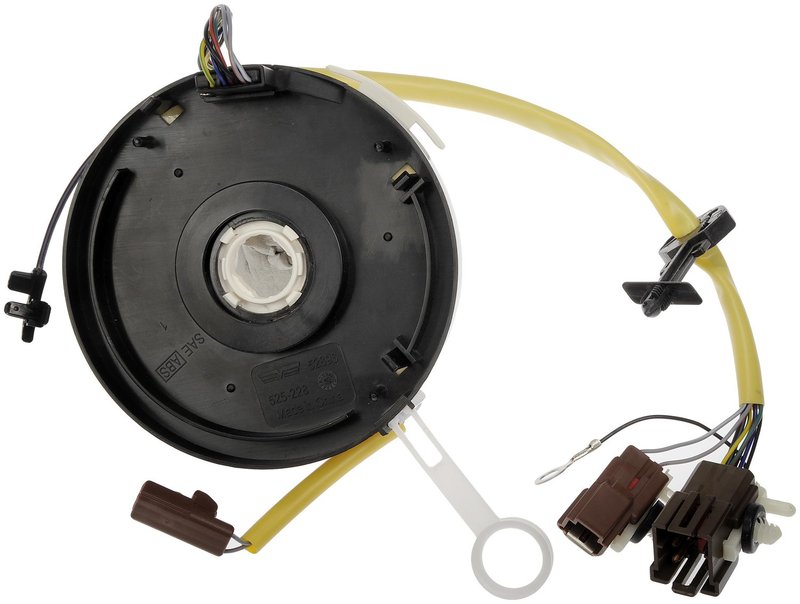

Dorman 525-228 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford and Mercury Vehicles

The Dorman 525-228 air bag clockspring is designed to maintain electrical connections for critical safety systems in select Ford and Mercury models. This clockspring assembly supports air bag deployment and cruise control functions, ensuring consistent performance and safety.

• Compatible with Ford Explorer, Explorer Sport, Explorer Sport Trac, Mountaineer, and Ranger models
• Wiring harness length of 15 inches for optimal fitment
• Includes 11 wires with 12 and 18 gauge measurements for reliable signal transmission
• Supports cruise control functionality
• Equipped with 3 connectors (male and female) and multiple pin terminals for secure connections
• Durable plastic construction for long-lasting use

Technical Details and Features

The Dorman 525-228 clockspring assembly features a wiring harness length of 15 inches, accommodating the specific routing requirements of Ford and Mercury vehicles. It includes 11 wires with two different wire gauge measurements—12 and 18 gauge—ensuring proper current capacity and signal integrity. The part supports cruise control systems, making it suitable for vehicles equipped with this feature. The assembly contains 3 connectors with both male and female genders, and multiple pin terminals (2, 3, and 6 terminal quantities) to maintain secure and reliable electrical connections. The plastic material housing provides durability while maintaining flexibility for installation.

Applications and Common Issues Addressed

• Restores proper air bag system electrical continuity to ensure air bag deployment
• Resolves cruise control malfunctions related to wiring faults in the clockspring
• Fixes intermittent horn or steering wheel control failures caused by damaged wiring
• Eliminates warning lights related to air bag system faults in compatible Ford and Mercury models
• Addresses electrical connection issues in steering column components

Installation Notes and Tips

When installing the Dorman 525-228 air bag clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead to prevent damage to the clockspring ribbon cable. Disconnect the vehicle battery and wait several minutes before beginning installation to avoid accidental air bag deployment. Carefully align connectors and terminals according to the vehicle’s wiring schematic. Verify cruise control and air bag system functionality after installation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 525-228 air bag clockspring undergoes rigorous quality control to ensure reliable performance in Ford and Mercury vehicles. Please refer to Dorman’s warranty policy for specific coverage details.
