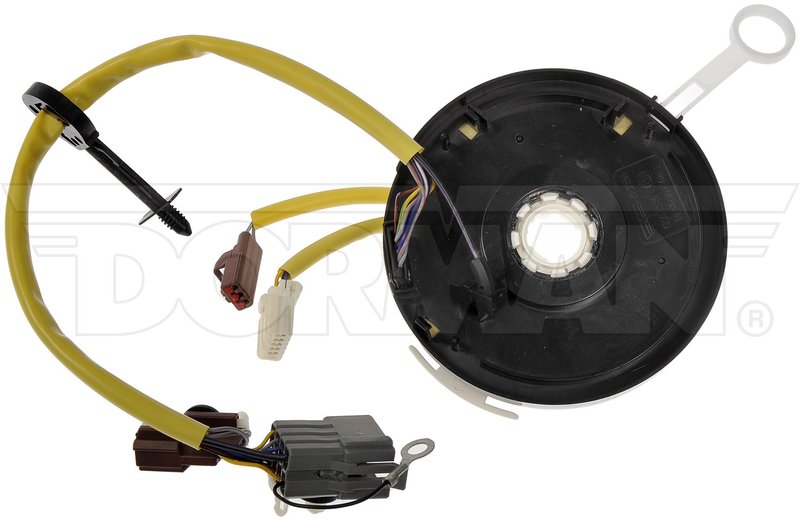

Dorman 525-235 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Explorer and Mercury Mountaineer

The Dorman 525-235 air bag clockspring is designed to maintain electrical connections for critical safety systems in your Ford Explorer or Mercury Mountaineer. This clockspring assembly ensures consistent communication between the steering wheel and vehicle electronics, including airbag deployment and cruise control functions.

• Compatible with Ford Explorer and Mercury Mountaineer models
• Wiring harness length of 14.5 inches for optimal fit
• Includes 18 wires with 12 and 18 gauge measurements for durability
• Supports cruise control functionality
• Features multiple blade terminals and female connectors for secure connections
• Constructed from durable plastic material
• Contains 4 connectors and multiple terminal quantities (2, 6, and 8) for comprehensive wiring needs

Technical Details and Specifications

The Dorman 525-235 clockspring assembly features an 18-wire harness with a combination of 12 and 18 gauge wires, providing reliable electrical conductivity and resistance to wear. The wiring harness length of 14.5 inches allows for proper routing within the steering column. This clockspring supports cruise control systems, ensuring seamless integration with your vehicle's electronics. The assembly includes multiple blade-type terminals and female connectors in brown, gray, and white colors, facilitating straightforward installation and secure connections. The plastic construction offers durability while maintaining flexibility required for steering wheel rotation.

Applications and Common Issues Addressed

• Restores airbag electrical connection to prevent warning lights or system faults
• Resolves intermittent or non-functional cruise control due to wiring faults
• Eliminates steering wheel control malfunctions caused by damaged clockspring
• Prevents loss of horn or other steering wheel electrical functions
• Addresses wiring harness wear or breakage within the steering column

Installation Notes and Tips

When installing the Dorman 525-235 air bag clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead. Carefully disconnect the battery before beginning to avoid accidental airbag deployment. Match connector colors and terminal types to the vehicle’s wiring harness for proper fitment. Avoid over-rotating the clockspring during installation to prevent damage. Refer to the vehicle’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty

Dorman manufactures the 525-235 clockspring assembly to meet or exceed OEM standards for fit, form, and function. The product is constructed from quality materials designed for long-term durability in demanding automotive environments. While specific warranty details are not provided, Dorman products typically come with a limited warranty covering defects in material and workmanship.
