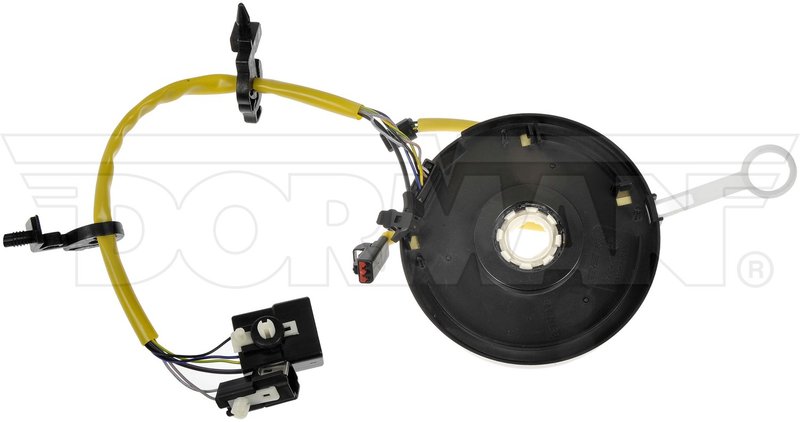

Dorman 525-237 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Aerostar and F-Series

The Dorman 525-237 air bag clockspring is designed to maintain electrical connections for the airbag system and cruise control in select Ford vehicles. This clockspring assembly ensures consistent communication between the steering wheel and vehicle systems, supporting safety and functionality.

• Compatible with Ford Aerostar, Bronco, F-150, F-250, F-250 HD, and F-350 models
• Includes 11 wires with 4 connectors and multiple terminal types for secure connections
• Supports cruise control functionality
• Wiring harness length of 15 inches for optimal fitment
• Durable plastic construction with 20 AWG and 12 AWG wire gauges
• Connector gender: female; terminal gender: male and female
• Pin-type terminals with black and gray connector colors

Detailed Product Description

The Dorman 525-237 air bag clockspring is engineered to provide reliable electrical continuity between the steering wheel and the vehicle’s airbag system, as well as cruise control components. Featuring a wiring harness length of 15 inches, this clockspring accommodates the specific routing requirements of Ford Aerostar, Bronco, and F-Series trucks including the F-150, F-250, F-250 HD, and F-350. The assembly includes 11 wires and 4 connectors, with a combination of male and female terminals to ensure proper integration with factory wiring harnesses. The use of 20 AWG and 12 AWG wire gauges supports both signal and power transmission needs. Constructed from durable plastic materials, this clockspring is designed to withstand the rigors of steering wheel movement while maintaining secure electrical connections.

Common Applications and Issues Addressed

• Restores airbag system electrical continuity after steering wheel repairs or replacements
• Resolves cruise control malfunctions related to wiring faults in the clockspring
• Eliminates intermittent airbag warning lights caused by damaged or worn clockspring components
• Prevents loss of horn and steering wheel control switch functions
• Addresses wiring harness damage due to steering column wear or accidents

Installation Notes and Tips

When installing the Dorman 525-237 clockspring, ensure the steering wheel is centered and the clockspring is aligned according to manufacturer specifications to avoid damage. Disconnect the vehicle battery before beginning installation to prevent accidental airbag deployment. Verify connector colors and terminal types match the vehicle’s wiring harness for proper fitment. Handle the clockspring carefully to avoid twisting or overextending the wiring harness during installation.

Quality Assurance and Warranty

Dorman air bag clocksprings are manufactured to meet or exceed OEM standards for fit, form, and function. The 525-237 part undergoes rigorous quality control to ensure reliable performance in Ford Aerostar and F-Series vehicles. While specific warranty details are not provided here, Dorman typically offers limited warranties covering defects in material and workmanship.
