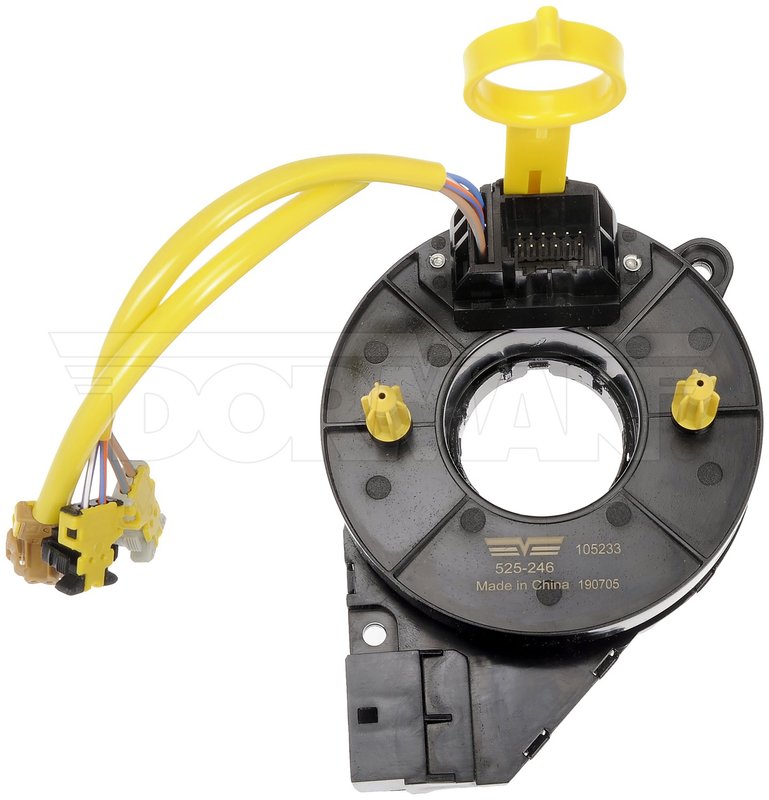

Dorman 525-246 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Explorer and Mercury Mountaineer

The Dorman 525-246 air bag clockspring is designed to maintain electrical connections for critical safety systems in your Ford Explorer, Explorer Sport Trac, and Mercury Mountaineer. This clockspring supports cruise control functionality and ensures consistent communication between the steering wheel and vehicle electronics.

• Wiring harness length of 5.12 inches for precise fitment
• 16-gauge wire measurement for durable electrical performance
• Supports cruise control systems for compatible vehicles
• Includes 6 wires, 5 connectors, and 16 terminals for comprehensive connectivity
• Mixed male and female connector genders with pin-type terminals
• Constructed from metal and plastic materials for strength and reliability

Detailed Product Description

The Dorman 525-246 air bag clockspring assembly is engineered to provide a secure and reliable electrical connection between the steering wheel and the vehicle’s air bag system, horn, and cruise control switches. With a wiring harness length of 5.12 inches and 16-gauge wire, this clockspring is built to handle the electrical demands of your Ford Explorer, Explorer Sport Trac, or Mercury Mountaineer. Featuring 6 wires, 5 connectors, and 16 terminals, it ensures proper signal transmission and maintains system integrity during steering wheel rotation. The combination of metal and plastic materials offers durability and resistance to wear over time. Connector colors include black, brown, and gray to assist with proper installation and identification.

Common Applications and Issues Resolved

• Restores air bag system electrical continuity after steering repairs or clock spring failure
• Resolves malfunctioning cruise control due to faulty clockspring wiring
• Fixes intermittent horn or steering wheel button failures
• Eliminates warning lights related to air bag system faults
• Addresses electrical connection issues caused by damaged or worn clockspring components

Installation Notes and Tips

When installing the Dorman 525-246 clockspring, ensure the steering wheel is centered and the wheels are pointed straight ahead to avoid damaging the clockspring ribbon cable. Carefully disconnect the battery before beginning to prevent accidental air bag deployment. Match connector colors and terminal types during installation to maintain proper wiring integrity. Verify cruise control and air bag system functionality after installation.

Quality Assurance and Warranty

Dorman manufactures this clockspring assembly to meet or exceed OEM specifications for fit, form, and function. The combination of metal and plastic components is selected for durability and long service life. While specific warranty details are not provided, Dorman products typically come with a limited warranty covering defects in materials and workmanship.
