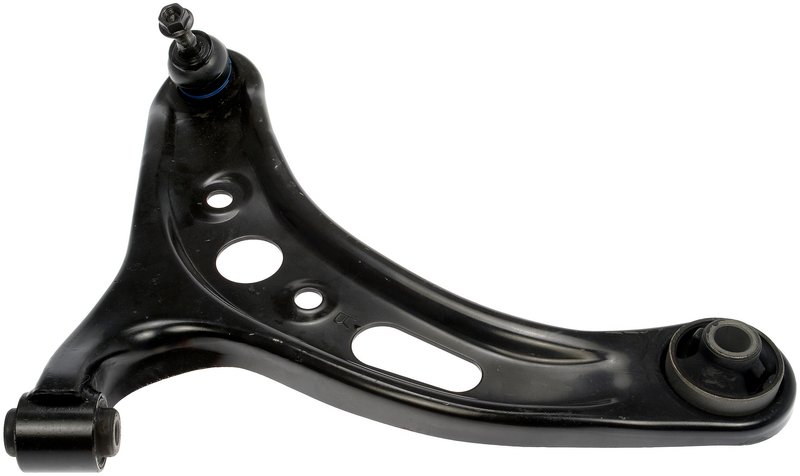

Dorman 526-504 Suspension Control Arm and Ball Joint Assembly - Front Right Lower

Overview of Dorman Suspension Control Arm and Ball Joint Assembly

The Dorman 526-504 Suspension Control Arm and Ball Joint Assembly is engineered for reliable performance in Scion 86, Subaru BRZ, and Toyota FR-S vehicles. This pre-greased, steel control arm assembly offers a durable replacement solution designed to maintain proper suspension geometry and vehicle handling.

• Pre-greased for immediate installation and reduced maintenance
• Includes bushings and ball joint for a complete suspension component
• Constructed from forged and cast steel for strength and durability
• Threaded ball joint stud with press-in mounting type
• Compatible with Scion 86, Subaru BRZ, and Toyota FR-S models
• Standard replacement grade with two mounting holes
• Black finish for corrosion resistance

Detailed Product Description

The Dorman 526-504 control arm assembly is manufactured using a combination of casting and forging processes to ensure structural integrity and long-lasting performance. Made from high-quality steel, this control arm is designed to withstand the stresses of daily driving and maintain suspension alignment. The assembly comes pre-greased, eliminating the need for additional lubrication during installation. It features a press-in ball joint mounting type with a threaded stud, providing a secure fit and reliable connection to the vehicle's suspension system. Included bushings help absorb road vibrations and reduce noise, contributing to a smoother ride. The control arm measures 288.5 mm in maximum width and is finished in black to resist corrosion and wear.

Compatible Vehicles and Applications

This suspension control arm and ball joint assembly is specifically compatible with the following vehicles:

• Scion 86
• Subaru BRZ
• Toyota FR-S

It is designed as a standard replacement part to restore proper suspension function and handling characteristics in these models.

Common Issues Addressed by This Control Arm Assembly

• Worn or damaged control arm bushings causing poor handling or noise
• Faulty ball joints leading to suspension instability or uneven tire wear
• Corroded or weakened control arm structure affecting vehicle alignment
• Excessive play in suspension components resulting in steering issues
• Need for a pre-greased, ready-to-install suspension component

Installation Notes and Tips

When installing the Dorman 526-504 control arm assembly, ensure the vehicle is securely lifted and supported. Since the part comes pre-greased and includes bushings and ball joint, no additional lubrication is necessary before installation. Use proper tools to press the ball joint into place if required, and torque all mounting bolts to manufacturer specifications. Verify suspension alignment after installation to maintain optimal handling and tire wear.

Quality Assurance and Warranty

Dorman suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The 526-504 control arm assembly undergoes rigorous quality checks to ensure durability and performance. While specific warranty details are not provided, Dorman typically offers limited warranties on their replacement parts to cover defects in materials and workmanship.
