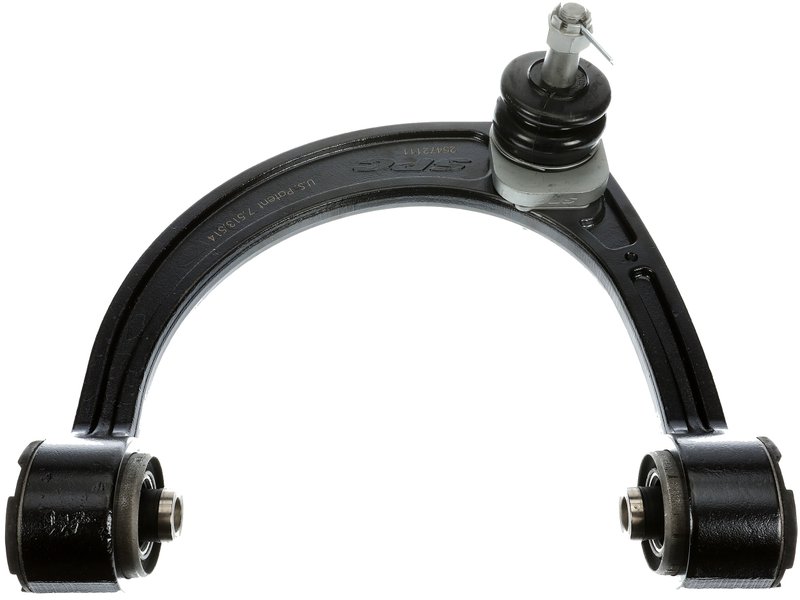

Dorman 528-109 Alignment Caster / Camber Control Arm - Left Upper

OE Quality 60-Day Returns

DormanPart #: 528-109

Dorman 528-109 Alignment Caster / Camber Control Arm - Left Upper

Name: Dorman 528-109 Alignment Caster / Camber Control Arm - Left Upper
Brand: Dorman
SKU: BKKY-528-109
Price: 224.59 USD
Availability: InStock

Left Upper

46 vehicles fit this part

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

$224.59Free Shipping

Free ShippingNo Cost to Continental U.S.

Free Returns*Wrong fit? No cost

60-Day ReturnsMoney back guarantee

*Free return shipping only qualifies if our fitment verification tool is used.

In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.

OE Direct Replacement — Bolt-on fit, no modifications needed

Fitment: Lexus and Toyota, 4Runner, FJ Cruiser, GX460, and GX470

Easy Returns — Return within 60 days for a full refund

Fast Shipping — Most orders ship same business day before 1pm CST

Not what you need? See all Alignment Caster / Camber Control Arm options

Dorman 528-109 Front Left Upper Control Arm

Dorman 528-109 is an adjustable caster camber control arm for front left upper suspension service. It is built for alignment correction after collision repairs and for vehicles with modified suspensions or aftermarket wheels, including applications such as the Toyota 4Runner, Lexus GX470, Lexus GX460, and Toyota FJ Cruiser.

Key Features

Adjustable design for caster and camber alignment correction
Fits front left upper suspension positions
Steel construction with cast/forged build
Includes bushings and ball joint
Grease fitting included for serviceability
Standard replacement suspension grade
Black finish with black bushings

Detailed Description

This Dorman alignment control arm, part number 528-109, is a direct replacement for the front left upper position on select Toyota and Lexus SUVs. It is engineered to restore alignment settings when factory geometry has been altered by body repair, suspension changes, or wheel fitment changes. The steel arm uses a bolt-in ball joint mounting type and a threaded ball joint stud, with rubber and steel bushing materials for suspension support. Cross-reference part numbers include MOOG Chassis Products RK620064 and Delphi TC3324 for the same application.

Compatible With 2003-2021 Toyota 4Runner, front left upper; 2003-2009 Lexus GX470, front left upper; 2010-2021 Lexus GX460, front left upper; and 2007-2014 Toyota FJ Cruiser, front left upper. The part number 528-109 is a practical choice when precise front-end alignment is needed on these vehicles.

What It Helps Solve

Front-end alignment issues after collision repairs
Improper caster or camber settings
Suspension geometry changes from lifted or modified setups
Alignment problems caused by aftermarket wheel changes
Worn upper control arm components affecting steering stability

Installation Notes and Tips

Install on the front left upper suspension position and perform a full wheel alignment after replacement. Verify all fasteners, ball joint seating, and bushing condition during installation. Because this arm is adjustable, final alignment should be set to factory specifications for the vehicle application.

Quality Assurance

Dorman replacement suspension components are built as standard replacement parts for repair and maintenance use. This control arm is constructed from steel with cast/forged components and includes service features such as a grease fitting to support routine maintenance.

Brand	Dorman
Part Number	528-109
Material	Acero
Material	Steel
Bushing Color	Black
Bushing Color	Negro
Bushing Color	Noir
Construction	Casting/forged
Construction	Fundición/forjado
Color	Black
Color	Negro
Color	Noir
Maximum Length	279.33
Grease Fitting Included	Oui
Grease Fitting Included	Sí
Grease Fitting Included	Yes
Suspension Grade Type	Reemplazo estándar
Suspension Grade Type	Standard
Bushings Included	Oui
Bushings Included	Sí
Bushings Included	Yes
Ball Joint Mounting Type	Bolt in
Ball Joint Mounting Type	Tornillo
Ball Joint Stud Type	Roscado
Ball Joint Stud Type	Threaded
Ball Joint Included	Oui
Ball Joint Included	Sí
Ball Joint Included	Yes
Minimum Length	279.33
Grade Type	Reemplazo estándar
Grade Type	Standard replacement
Adjustable	Oui

This part fits 46 vehicles. Search below:

Year	Make	Model	Position	Notes
2021	Lexus	GX460	Left Upper	Front
2021	Toyota	4Runner	Left Upper	Front
2020	Lexus	GX460	Left Upper	Front
2020	Toyota	4Runner	Left Upper	Front
2019	Lexus	GX460	Left Upper	Front
2019	Toyota	4Runner	Left Upper	Front
2018	Lexus	GX460	Left Upper	Front
2018	Toyota	4Runner	Left Upper	Front
2017	Lexus	GX460	Left Upper	Front
2017	Toyota	4Runner	Left Upper	Front
2016	Lexus	GX460	Left Upper	Front
2016	Toyota	4Runner	Left Upper	Front
2015	Lexus	GX460	Left Upper	Front
2015	Toyota	4Runner	Left Upper	Front
2014	Lexus	GX460	Left Upper	Front
2014	Toyota	4Runner	Left Upper	Front
2014	Toyota	FJ Cruiser	Left Upper	Front
2013	Lexus	GX460	Left Upper	Front
2013	Toyota	4Runner	Left Upper	Front
2013	Toyota	FJ Cruiser	Left Upper	Front
2012	Lexus	GX460	Left Upper	Front
2012	Toyota	4Runner	Left Upper	Front
2012	Toyota	FJ Cruiser	Left Upper	Front
2011	Lexus	GX460	Left Upper	Front
2011	Toyota	4Runner	Left Upper	Front
2011	Toyota	FJ Cruiser	Left Upper	Front
2010	Lexus	GX460	Left Upper	Front
2010	Toyota	4Runner	Left Upper	Front
2010	Toyota	FJ Cruiser	Left Upper	Front
2009	Lexus	GX470	Left Upper	Front
2009	Toyota	4Runner	Left Upper	Front
2009	Toyota	FJ Cruiser	Left Upper	Front
2008	Lexus	GX470	Left Upper	Front
2008	Toyota	4Runner	Left Upper	Front
2008	Toyota	FJ Cruiser	Left Upper	Front
2007	Lexus	GX470	Left Upper	Front
2007	Toyota	4Runner	Left Upper	Front
2007	Toyota	FJ Cruiser	Left Upper	Front
2006	Lexus	GX470	Left Upper	Front
2006	Toyota	4Runner	Left Upper	Front
2005	Lexus	GX470	Left Upper	Front
2005	Toyota	4Runner	Left Upper	Front
2004	Lexus	GX470	Left Upper	Front
2004	Toyota	4Runner	Left Upper	Front
2003	Lexus	GX470	Left Upper	Front
2003	Toyota	4Runner	Left Upper	Front

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

260618948630600408CB86327CMS86114CMS861199GS86114RK620064TC3324

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
