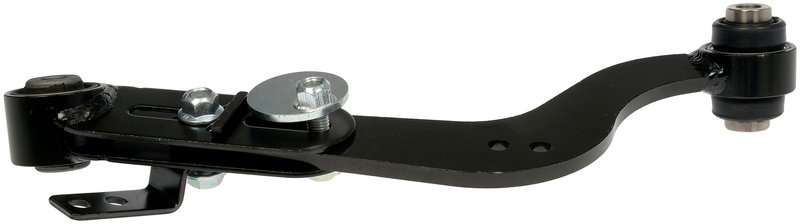

Dorman 528-291 Alignment Camber Lateral Link - Rear Left Upper

Dorman 528-291 Alignment Camber Lateral Link

Dorman 528-291 is an alignment camber lateral link built as a standard replacement for the original equipment part on select Lexus and Toyota vehicles. It is precision-engineered and tested for reliable suspension alignment correction on the rear left upper position.

Key Features

• Steel construction for suspension durability
• Black bushings included
• Rubber and steel bushing material design
• Female end connections on both ends
• Two mounting studs with 10 mm diameter
• Two mounting holes with 12.3 mm diameter
• Toe adjustable design
• Camber adjustment range: -3.00 degrees to +3.00 degrees
• Grease fitting not included
• Mounting hardware included

Detailed Description

This Dorman alignment camber lateral link, part number 528-291, is made for rear left upper suspension applications where camber and caster correction are needed. It is a direct-fit replacement style component for 2018-2021 Lexus NX300, 2015-2021 Lexus NX300h, 2015-2017 Lexus NX200t, and 2006-2018 Toyota RAV4 models. The steel body, integrated bushings, and OE-style mounting layout support accurate suspension geometry restoration after wear, impact, or alignment service. This part cross-references MOOG Chassis Products (e.g., RK100354, RK100356) for the same application.

What This Part Helps Address

• Rear alignment pull caused by worn lateral link bushings
• Camber out of specification after suspension service
• Caster/camber adjustment needs on the rear left upper suspension
• Uneven tire wear related to rear suspension geometry
• Clunking or looseness from deteriorated link bushings

Installation Notes and Tips

Install this link in the rear left upper position and verify alignment settings after replacement. Because the part is toe adjustable and provides a -3.00 degree to +3.00 degree camber adjustment range, a professional alignment is recommended after installation. Confirm vehicle application by year, make, model, and position before service.

Quality Assurance

Dorman states this alignment camber lateral link is precision-engineered and rigorously tested to provide a reliable OE-style replacement. Part number 528-291 is built to standard replacement specifications for select Lexus NX300, Lexus NX300h, Lexus NX200t, and Toyota RAV4 applications.
