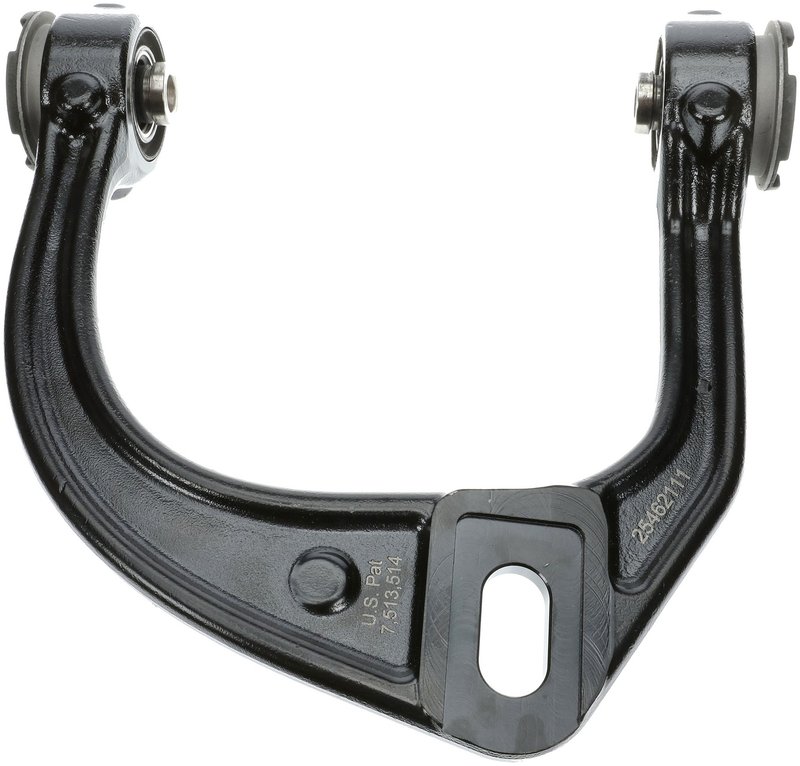

Dorman 528-310 Alignment Caster / Camber Control Arm - Right Upper

OE Quality 60-Day Returns

Dorman 528-310 Alignment Caster / Camber Control Arm - Right Upper

Brand	Dorman 528-310
Position	Right Upper
Material	Steel
Bushing Color	Black
Construction	Casting/forged
Color	Black
Maximum Length	275.94
Grease Fitting Included	Yes
Suspension Grade Type	Standard
Bushings Included	Yes
Ball Joint Mounting Type	Bolt in
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
Minimum Length	275.94
Grade Type	Regular
Adjustable	No
Bushing Material	Rubber
Bushing Material	Steel
Package Contents	1 control arm; 1 ball joint; 1 castle nut; 1 cotter pin
Fits	Toyota · 24 vehicles

Alignment correction. Adjusts caster and camber after suspension changes or collision repairs.

Steel construction. Casting/forged design with black finish for a service replacement part.

Complete service components. Includes ball joint, bushings, grease fitting, castle nut, and cotter pin.

Cross-references Delphi TC5452, Mevotech Supreme CMS86109 and MOOG Chassis Products RK640609 for the same application. See all 4.

$124.82Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Alignment Caster / Camber Control Arm options

Adjustable Alignment Control Arm

This Dorman caster camber control arm is built for alignment correction after suspension changes or collision repairs. It is a direct-fit style replacement for select Toyota applications and is identified by part number 528-310.

Key Features

Steel construction with casting/forged design for a durable suspension component.
Includes a ball joint, bushings, grease fitting, castle nut, and cotter pin.
Ball joint uses a bolt-in mounting type with a threaded stud.
Rubber and steel bushing materials with a black finish.
Designed for alignment correction on vehicles with modified suspensions or aftermarket wheels.

Detailed Description

Part number 528-310 is a replacement caster camber control arm engineered to restore alignment settings where factory geometry has changed. It is used on Toyota Tacoma and Toyota 4Runner applications with right upper front suspension placement, and it provides camber adjustment from -2.00 to +2.00 degrees and caster adjustment from 0.00 to +4.00 degrees. This makes it a practical choice when suspension work, wheel changes, or body repair has affected alignment. This part cross-references Delphi TC5452 and MOOG Chassis Products RK640609 for the same application.

What It Helps Address

Incorrect camber after suspension or body repair.
Caster settings that need to be brought back into range.
Alignment issues caused by modified suspension geometry.
Fitment concerns after aftermarket wheel changes.

Installation Notes and Tips

Verify the vehicle position and alignment specifications before installation. Because this control arm is part of the steering and suspension geometry, a professional wheel alignment should be performed after replacement. Confirm the existing mounting style and hardware requirements against the vehicle before beginning service.

Quality Assurance

Dorman supplies replacement suspension components for service applications, and this control arm is built with steel construction and a forged/cast design for consistent fit and function. Part number 528-310 is intended for alignment correction in the listed Toyota Tacoma and Toyota 4Runner applications.

This part fits 24 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Drive Type	Position	Notes
2004	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2004	Toyota	Tacoma	Pre Runner	RWD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2003	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2003	Toyota	Tacoma	Pre Runner	RWD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2002	Toyota	4Runner	—	—	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2002	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2002	Toyota	Tacoma	Pre Runner	RWD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2001	Toyota	4Runner	—	—	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2001	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2001	Toyota	Tacoma	Pre Runner	RWD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2000	Toyota	4Runner	—	—	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2000	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
2000	Toyota	Tacoma	Pre Runner	RWD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1999	Toyota	4Runner	—	—	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1999	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1999	Toyota	Tacoma	Pre Runner	RWD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1998	Toyota	4Runner	—	—	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1998	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1998	Toyota	Tacoma	Pre Runner	RWD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1997	Toyota	4Runner	—	—	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1997	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1996	Toyota	4Runner	—	—	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1996	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
1995	Toyota	Tacoma	—	4WD	Right Upper	Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster 0.00 to +4.00 Degrees
No rows match your filter.

Directly replaces or cross-references 4 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Delphi — TC5452Mevotech Supreme — CMS86109MOOG Chassis Products — RK6406094861035040
