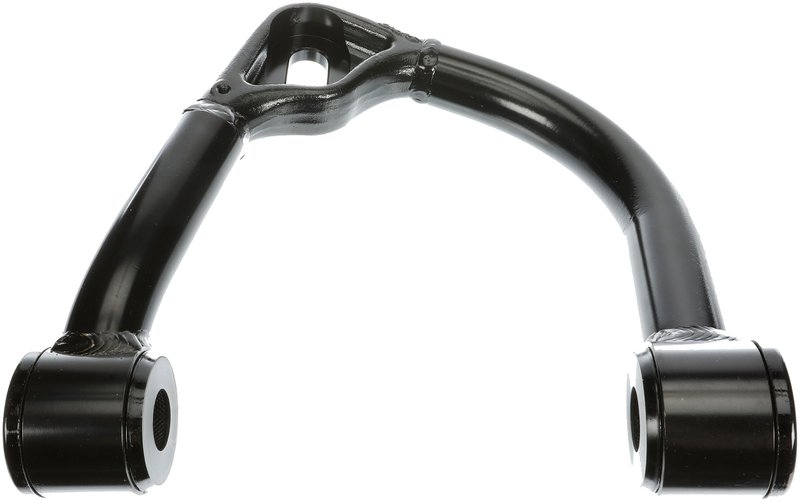

Dorman 528-313 Alignment Caster / Camber Control Arm - Left Upper
| Brand | Dorman 528-313 |
|---|---|
| Position | Left Upper |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Construction | Tubular |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Maximum Length | 277.13 |
| Grease Fitting Included | Oui |
| Grease Fitting Included | Sí |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt in |
| Ball Joint Mounting Type | Tornillo |
| Ball Joint Stud Type | Roscado |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Oui |
| Ball Joint Included | Sí |
| Ball Joint Included | Yes |
| Minimum Length | 277.13 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Adjustable | Oui |
| Adjustable | Sí |
| Fits | Toyota · 14 vehicles |
Adjustable design. Helps achieve proper wheel alignment after suspension changes or collision repairs.
Tubular steel construction. Combines strength with a lighter, more efficient control arm design.
Bolt-in ball joint. Includes bushings, grease fitting, and standard replacement hardware.
Cross-references Delphi TC5965, Mevotech Supreme CMS861201 and MOOG Chassis Products RK640611 for the same application. See all 4.
Dorman 528-313 Adjustable Control Arm
Dorman 528-313 is an adjustable caster camber control arm for front left upper suspension applications on select Toyota trucks and SUVs. It provides a direct alignment correction option for Toyota Tundra and Toyota Sequoia vehicles when factory settings are no longer enough after repairs or suspension changes.
- Adjustable caster and camber control arm for alignment correction
- Fits 2001-2007 Toyota Sequoia, left upper
- Fits 2000-2006 Toyota Tundra, left upper
- Steel tubular construction with black finish
- Includes bushings, ball joint, grease fitting, washers, inner sleeves, castle nut, and cotter pin
- Standard replacement suspension grade
- Ball joint mounts bolt-in with threaded stud type
Alignment and Suspension Details
This Dorman alignment control arm is built from steel in a tubular design and uses black bushings with rubber and steel bushing materials. The arm is adjustable to help restore alignment settings after collision repairs or when the vehicle has modified suspension components or aftermarket wheels. For Toyota Tundra and Toyota Sequoia front upper left applications, it supports camber adjustment from -2.00 to +2.00 degrees and caster adjustment from -4.00 to +4.00 degrees.
This part cross-references MOOG Chassis Products RK640611 and Mevotech Supreme CMS861201 for the same application. Part number 528-313 is also referenced for related Toyota alignment service needs.
What It Helps Correct
- Improper camber after front-end repair work
- Caster settings outside factory range
- Alignment issues caused by lifted or modified suspension setups
- Steering pull related to upper control arm geometry
- Wear patterns tied to incorrect front suspension angles
Installation Notes
Install on the front left upper position only for the listed Toyota applications. Alignment should be checked and set after installation so camber and caster can be adjusted to specification. Verify ball joint mounting style, threaded stud engagement, and bushing placement during service. Use the included grease fitting during routine maintenance if the application calls for lubrication.
Quality Assurance
Dorman supplies this as a standard replacement suspension component for the specified Toyota Sequoia and Toyota Tundra fitments. The part is built to support alignment service on vehicles that need correction after repair or suspension modification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Toyota | Sequoia | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2006 | Toyota | Sequoia | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2006 | Toyota | Tundra | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2005 | Toyota | Sequoia | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2005 | Toyota | Tundra | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2004 | Toyota | Sequoia | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2004 | Toyota | Tundra | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2003 | Toyota | Sequoia | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2003 | Toyota | Tundra | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2002 | Toyota | Sequoia | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2002 | Toyota | Tundra | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2001 | Toyota | Sequoia | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2001 | Toyota | Tundra | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
| 2000 | Toyota | Tundra | Left Upper | Front; Adjusts Camber -2.00 to +2.00 Degrees; Adjusts Caster -4.00 to +4.00 Degrees |
