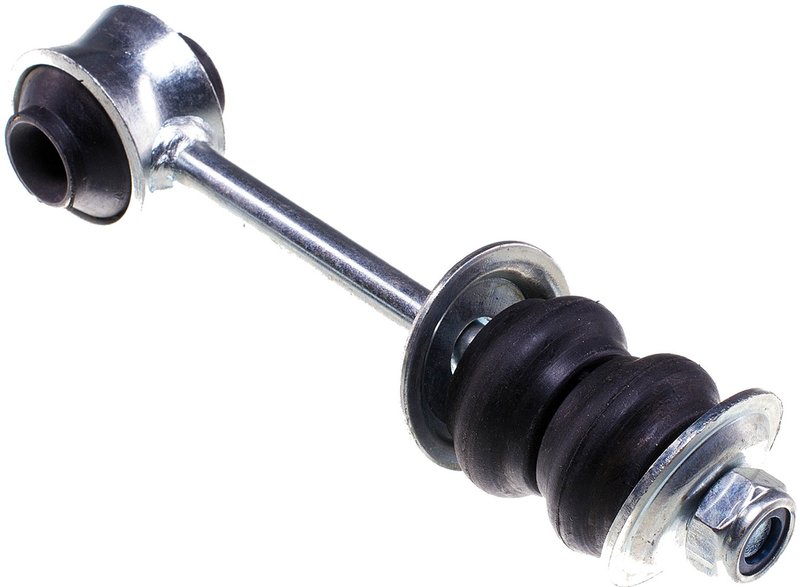

Dorman 532-012 Suspension Stabilizer Bar Link Kit - Front
Dorman 532-012 Front Stabilizer Bar Link Kit
Dorman 532-012 is a front suspension stabilizer bar link kit built for specific Volvo applications. It is precision-engineered and tested as a direct replacement for the original equipment link on the 1990-1993 Volvo 240, front.
Key Features
- Direct replacement stabilizer bar link kit for front suspension service
- Fits 1990-1993 Volvo 240, front
- Steel link with coated finish for corrosion resistance
- Rubber bushings with polymer bearing material
- Male threaded end with bushing end configuration
- Mounting hardware included
- OE-style replacement for applications that use Dorman 532-012
Detailed Description
This suspension stabilizer bar link kit is built to restore the connection between the sway bar and suspension on the Volvo 240. Dorman 532-012 uses a steel link, rubber bushings, and a coated finish to match the demands of front-end suspension service. The design follows the original equipment layout for the 1990-1993 Volvo 240, front, making it a practical replacement when the original link is worn or damaged. This part also cross-references Delphi TC1359 for the same application.
Common Issues It Can Address
- Front-end clunking or rattling over bumps
- Excessive sway bar movement from worn bushings
- Loose or unstable handling feel in the front suspension
- Noise caused by deteriorated stabilizer bar link components
- Uneven suspension response from a worn OE-style link
Installation Notes and Tips
Verify the vehicle is a 1990-1993 Volvo 240 with front-position fitment before installation. Inspect the sway bar mounting points, bushings, and surrounding hardware for wear or corrosion before replacing the link. Confirm thread size and end style match the original suspension layout, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
Dorman engineers and tests this stabilizer bar link kit for reliable replacement performance on the specified vehicle application. Part number 532-012 is built to meet the needs of front suspension service on the Volvo 240 platform.
| Brand | Dorman |
|---|---|
| Part Number | 532-012 |
| Bushing Outside Diameter | 28.46 |
| Bushing Color | Black |
| Length | 145.2 |
| End 1 Type | Male threaded |
| End 2 Type | Bushing |
| Pre-Greased | No |
| Bushings Included | Yes |
| Dust Boot Included | No |
| Grease Fittings Included | No |
| Sleeve Length | 28.52 |
| Sleeve Length | 30.71 |
| Bolt Thread Size | 10.4 |
| Washers Included | No |
| Grade Type | Regular |
| Bolts Included | No |
| Greaseable | No |
| Bearing Material | Polymer |
| Bushing Material | Rubber |
| Bolt Thread Pitch | 1.5 |
| Locking Nuts Included | No |
| Bushing Inside Diameter | 10.05 |
| Adjustable | No |
| End 1 Attachment Size | M10 x 1.5 mm |
| Finish | Coated |
| Link Material | Steel |
| Mounting Hardware Included | Yes |
| Package Contents | 1 link; 1 nut; 2 bushings; 2 washers |
| Sleeve Included | No |
| Spacer Included | No |
| Threaded End | No |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | Volvo | 240 | Front | |
| 1992 | Volvo | 240 | Front | |
| 1991 | Volvo | 240 | Front | |
| 1990 | Volvo | 240 | Front |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
