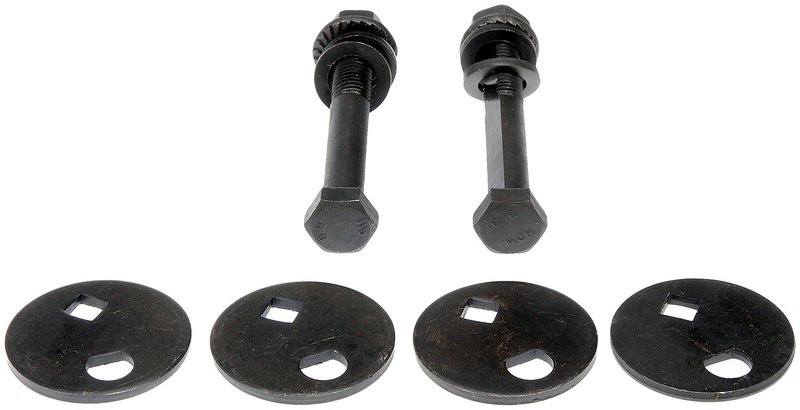

Dorman 533-103 Alignment Cam Bolt Kit - Front Upper

Dorman 533-103 Alignment Cam Bolt Kit

Dorman 533-103 is an alignment cam bolt kit built as a standard replacement for the original equipment hardware on select Ford and Lincoln trucks and SUVs. It provides manual cam adjustment for front upper suspension alignment, helping restore caster and camber settings after service or wear.

Key Features

• Manual adjustment type for front upper alignment correction
• Standard replacement bolt grade for OE-style service
• Black steel washers with included nuts and washers
• 14 mm bolt thread diameter with 2.0 thread pitch
• Adjustment range of +/- 2.5 degrees
• Precision-engineered and tested for specific vehicle applications
• Cross-references MOOG Chassis Products K8740 and K100343 for the same application

Detailed Description

This alignment cam bolt kit is designed for front upper suspension use on 1997-2003 Ford F-150, 2004 Ford F-150 Heritage, 1997-2002 Ford Expedition, 2002 Lincoln Blackwood, 1998-2002 Lincoln Navigator, and 1997-1999 Ford F-250. Dorman 533-103 is intended for vehicles without original design caster/camber adjustment cams and is used to fine-tune alignment after suspension repairs, component replacement, or uneven tire wear. The kit’s cam and bolt design supports precise manual adjustment so the alignment technician can set caster and camber within the specified range.

What This Part Is Used For

• Restoring front upper caster and camber adjustment on select Ford and Lincoln applications
• Replacing worn, seized, or missing alignment cam hardware
• Correcting steering pull caused by improper front-end alignment
• Addressing uneven or accelerated tire wear linked to suspension geometry
• Supporting alignment service after front suspension repairs

Installation Notes and Tips

Install on the front upper suspension position only for the listed applications. Verify that the vehicle is equipped without original design caster/camber adjustment cams before ordering. Alignment should be performed after installation to set the cam position correctly. Use the vehicle’s service specifications and torque procedures during installation. Dorman 533-103 is a direct replacement-style part for the listed fitments, including Ford F-150, Ford Expedition, and Lincoln Navigator applications.

Quality Assurance

Dorman states that this alignment cam bolt kit is precision-engineered and rigorously tested to provide reliable replacement performance for the original equipment on specific vehicles. The part number is Dorman 533-103.
