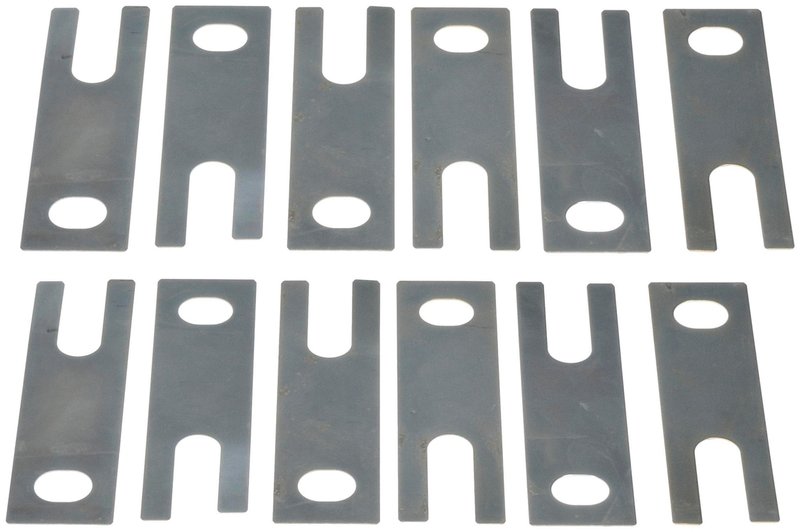

Dorman 533-114 Alignment Shim - Rear
OE Quality 60-Day Returns
Dorman

Dorman 533-114 Alignment Shim - Rear

Brand Dorman 533-114
Position Rear
Material Acero
Material Steel
Length 95
Color Plateado
Color Silver
Thickness 0.85
Shape Rectangular
Mounting Hole Quantity 1
Mounting Hole Quantity 1 ensamble de manguera del calentador
Shim Inside Diameter 27
Shim Outside Diameter 35
Degree Of Increments 1/32 deg
Contenidos del paquete 12 laminillas
Package Contents 12 shims
Fits Chevrolet · 20 vehicles

Precision-engineered. Rigorously tested for reliable replacement performance.

Steel construction. Provides durable support in a rectangular shim design.

Alignment shim. Helps restore proper spacing and adjustment.

$50.91Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $50.91
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Alignment Shim options

Dorman 533-114 Alignment Shim for Corvette

Dorman 533-114 is a steel alignment shim engineered as a direct replacement for the original equipment on specific vehicles. It is built for rear toe adjustment on Chevrolet Corvette applications from 1963-1982, helping restore precise suspension alignment after service or wear.

Key Features

  • Steel construction for suspension hardware durability
  • Rectangular shim profile with a 95 mm length
  • 0.85 thickness for fine alignment correction
  • 1/32 degree increment for precise toe adjustment
  • 27 mm inside diameter and 35 mm outside diameter
  • Rear-position fitment for Chevrolet Corvette rear suspension service
  • Compatible With 1963-1982 Chevrolet Corvette, rear

Detailed Description

This Dorman alignment shim, part number 533-114, is precision-engineered to match the original equipment function on select Chevrolet Corvette models. It is used in rear suspension alignment service to adjust toe in 1/32-inch increments, giving technicians a controlled way to correct geometry after component replacement or alignment work. For Corvette owners and shops searching for a rear toe shim for 1963-1982 Chevrolet Corvette, Dorman 533-114 provides the correct OE-style replacement format.

The steel construction and rectangular shape support consistent fitment in the intended suspension location. If you are sourcing a Chevrolet Corvette rear alignment shim or looking up Dorman 533-114 for a 1963-1982 Corvette rear toe adjustment, this part matches the specified application and dimensions listed by the manufacturer.

What It Helps Solve

  • Rear toe misalignment after suspension service
  • Uneven tire wear caused by incorrect rear geometry
  • Steering or tracking issues related to rear alignment settings
  • Need for a precise shim during Corvette suspension adjustment
  • Replacement of a worn or missing OE-style alignment shim

Installation Notes and Tips

Install this shim only in the rear suspension application listed for 1963-1982 Chevrolet Corvette. Verify alignment settings before and after installation, and confirm shim thickness and orientation against the vehicle’s service specifications. Dorman 533-114 is a fitment-specific part, so matching the year, model, and rear position is essential before service.

Quality Assurance

Dorman states that this alignment shim is precision-engineered and rigorously tested to provide a reliable replacement for the original equipment on the specified vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

This part fits 20 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1982ChevroletCorvetteRearAdjusts Toe 1/32 In.
1981ChevroletCorvetteRearAdjusts Toe 1/32 In.
1980ChevroletCorvetteRearAdjusts Toe 1/32 In.
1979ChevroletCorvetteRearAdjusts Toe 1/32 In.
1978ChevroletCorvetteRearAdjusts Toe 1/32 In.
1977ChevroletCorvetteRearAdjusts Toe 1/32 In.
1976ChevroletCorvetteRearAdjusts Toe 1/32 In.
1975ChevroletCorvetteRearAdjusts Toe 1/32 In.
1974ChevroletCorvetteRearAdjusts Toe 1/32 In.
1973ChevroletCorvetteRearAdjusts Toe 1/32 In.
1972ChevroletCorvetteRearAdjusts Toe 1/32 In.
1971ChevroletCorvetteRearAdjusts Toe 1/32 In.
1970ChevroletCorvetteRearAdjusts Toe 1/32 In.
1969ChevroletCorvetteRearAdjusts Toe 1/32 In.
1968ChevroletCorvetteRearAdjusts Toe 1/32 In.
1967ChevroletCorvetteRearAdjusts Toe 1/32 In.
1966ChevroletCorvetteRearAdjusts Toe 1/32 In.
1965ChevroletCorvetteRearAdjusts Toe 1/32 In.
1964ChevroletCorvetteRearAdjusts Toe 1/32 In.
1963ChevroletCorvetteRearAdjusts Toe 1/32 In.
