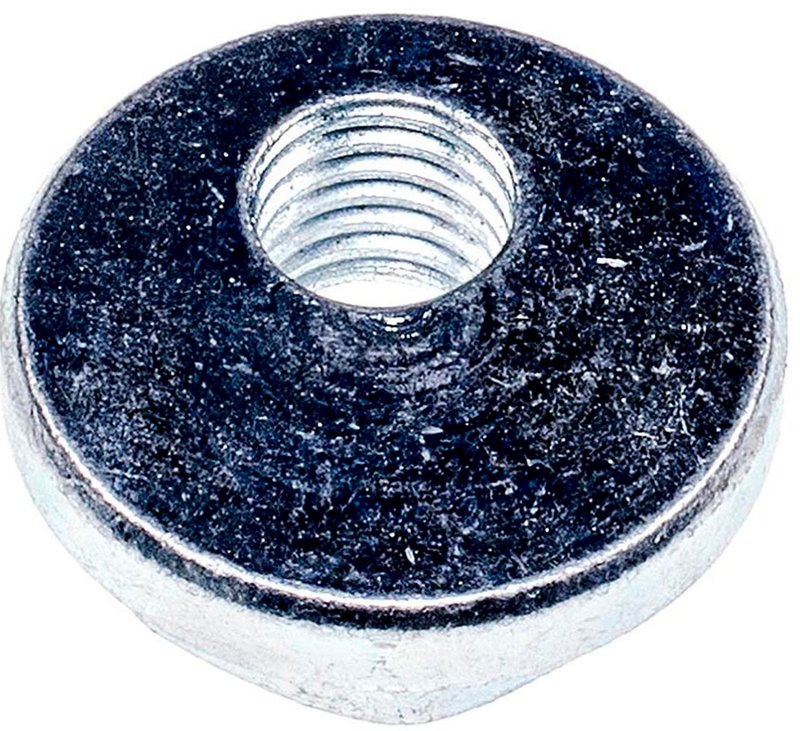

Dorman 533-120 Alignment Camber / Toe Kit - Rear Lower
Dorman 533-120 Rear Lower Alignment Camber and Toe Kit
Dorman 533-120 is a specific-fit alignment camber and toe kit for rear lower suspension adjustment on select GM and Suzuki vehicles. It is precision-engineered and tested as a standard replacement for the original equipment part, helping restore alignment settings on applications such as the Chevrolet Equinox, GMC Terrain, and Pontiac Torrent.
Key Features
- Specific-fit rear lower alignment camber and toe kit
- Adjusts camber and toe from -1.00 degree to +1.00 degree on listed applications
- Steel washer construction for durability
- Integral washer outside diameter: 37.5 mm
- Integral washer inside diameter: 14 mm
- Standard replacement grade
- Cross-references MOOG Chassis Products K100015 and Mevotech Supreme MS50045 for the same application
Detailed Description
This Dorman alignment camber and toe kit is built for rear lower suspension service where precise wheel alignment adjustment is needed. It is a direct replacement style part for specific vehicles, including 2005-2017 Chevrolet Equinox, 2010-2017 GMC Terrain, 2008-2015 Chevrolet Captiva Sport, 2006-2009 Pontiac Torrent, 2002-2010 Saturn Vue, 2002-2009 Suzuki XL-7, and 2009-2012 Suzuki Equator. The Dorman 533-120 is designed to help bring rear alignment back within specification after suspension wear, component replacement, or collision-related changes.
What This Part Helps Address
- Rear wheel camber out of specification
- Rear toe misalignment after suspension service
- Uneven tire wear related to rear alignment settings
- Steering pull or tracking concerns tied to rear suspension geometry
- Alignment correction needs on Chevrolet Equinox, GMC Terrain, and related platforms
Installation Notes and Tips
Install on the rear lower suspension position only for the listed applications. Because this part is specific fit, verify vehicle year, make, model, and rear lower position before ordering. A professional wheel alignment is recommended after installation so camber and toe can be set to the required specification. This part number is 533-120.
Quality Assurance
Dorman manufactures this part as a standard replacement component and subjects it to engineering and testing for reliable OE-style service on the listed vehicles. Part number 533-120 is built to match the original application requirements for rear lower alignment adjustment.
| Brand | Dorman |
|---|---|
| Part Number | 533-120 |
| Integral Washer Outside Diameter | 37.5 |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Washer Material | Acero |
| Washer Material | Steel |
| Integral Washer Inside Diameter | 14 |
| Bolt Included | No |
| Bolt Included | Non |
| Contenidos del paquete | 1 perno de alineación del ángulo camber |
| Package Contents | 1 alignment - camber bolt |
This part fits 54 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2017 | GMC | Terrain | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2016 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2016 | GMC | Terrain | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2015 | Chevrolet | Captiva Sport | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2015 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2015 | GMC | Terrain | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2014 | Chevrolet | Captiva Sport | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2014 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2014 | GMC | Terrain | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2013 | Chevrolet | Captiva Sport | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2013 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2013 | GMC | Terrain | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2012 | Chevrolet | Captiva Sport | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2012 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2012 | GMC | Terrain | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2012 | Suzuki | Equator | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2011 | Chevrolet | Captiva Sport | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2011 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2011 | GMC | Terrain | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2011 | Suzuki | Equator | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2010 | Chevrolet | Captiva Sport | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2010 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2010 | GMC | Terrain | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2010 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2010 | Suzuki | Equator | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2009 | Chevrolet | Captiva Sport | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2009 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2009 | Pontiac | Torrent | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2009 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2009 | Suzuki | Equator | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2009 | Suzuki | XL-7 | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2008 | Chevrolet | Captiva Sport | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2008 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2008 | Pontiac | Torrent | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2008 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2008 | Suzuki | XL-7 | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2007 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2007 | Pontiac | Torrent | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2007 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2007 | Suzuki | XL-7 | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2006 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2006 | Pontiac | Torrent | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2006 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2006 | Suzuki | XL-7 | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2005 | Chevrolet | Equinox | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2005 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2005 | Suzuki | XL-7 | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2004 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2004 | Suzuki | XL-7 | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2003 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2003 | Suzuki | XL-7 | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2002 | Saturn | Vue | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
| 2002 | Suzuki | XL-7 | Rear Lower | Adjusts Camber and Toe -1.00 Degree to +1.00 Degree |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
