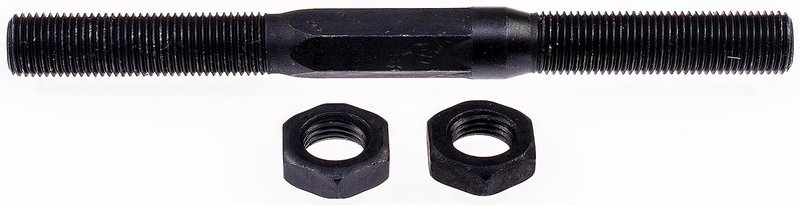

Dorman 533-128 Steering Tie Rod End Adjusting Sleeve - Front
| Brand | Dorman 533-128 |
|---|---|
| Position | Front |
| Material | Acero |
| Material | Steel |
| Thread Direction | Counterclockwise (left) |
| Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| Length | 168.56 |
| Color | Amarillo |
| Color | Yellow |
| Clamps Included | No |
| Clamps Included | Non |
| End 1 Gender | Female |
| End 1 Gender | Hembra |
| End 2 Gender | Female |
| End 2 Gender | Hembra |
| Outside Diameter | 35 |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Bolts Included | Non |
| End 1 Thread Type | Media |
| End 1 Thread Type | Medium |
| Thread Type | Fine |
| Thread Type | Fino |
| Arandela incluida | No |
| Contenidos del paquete | 1 ajustador del extremo del terminal de la dirección |
| Contenidos del paquete | 2 tuercas |
| Diámetro de la rosca | 14 mm |
| Diámetro la rosca de extremo 1 | 27mm |
| Fits | Honda and Isuzu · 26 vehicles |
Standard replacement. Precision-engineered and rigorously tested for reliable replacement performance.
Steel construction. Durable metal build for dependable steering hardware service.
Fine metric threads. Counterclockwise thread direction with included mounting hardware.
Cross-references Centric Parts 612.40801, Delphi TA5654 and Mevotech Original Grade GES3090S for the same application. See all 9.
Dorman 533-128 Steering Tie Rod End Adjusting Sleeve
Dorman 533-128 is a steel steering tie rod end adjusting sleeve made for specific front steering applications. It is precision-engineered and tested as a standard replacement for the original sleeve on select Honda and Isuzu vehicles.
Key Features
- Steel construction for steering linkage service
- Counterclockwise (left) thread direction
- Metric fine-thread design with 14 mm thread diameter and M1.5 pitch
- Female ends on both sides
- Outside diameter: 35 mm; length: 168.56 mm
- Mounting hardware included
- Standard replacement grade
Detailed Description
This steering tie rod end adjusting sleeve is used to connect and adjust steering linkage length during front-end alignment service. Dorman 533-128 is built from steel and finished in yellow, with a left-hand thread direction and fine metric threading for the specified applications. It cross-references MOOG Chassis Products ES3090S and Delphi TA5654 for the same application. Compatible vehicles include 1994-1995 Honda Passport, 1988-1995 Isuzu Pickup, 1991-1995 Isuzu Rodeo, 1989-1994 Isuzu Amigo, and 1987-1991 Isuzu Trooper, all in the front position.
What It Helps Fix
- Loose or worn steering linkage adjustment points
- Improper toe settings during front-end alignment
- Corrosion or damage on the original adjusting sleeve
- Steering play caused by worn threaded sleeve components
- Service issues on front steering tie rod assemblies for Honda Passport and Isuzu models
Installation Notes and Tips
Verify thread direction, thread diameter, and pitch before installation. This sleeve uses female ends and a counterclockwise left-hand thread, so it must match the existing tie rod end configuration. Confirm front-position fitment for 1994-1995 Honda Passport, 1988-1995 Isuzu Pickup, 1991-1995 Isuzu Rodeo, 1989-1994 Isuzu Amigo, and 1987-1991 Isuzu Trooper before performing alignment.
Quality Assurance
Dorman manufactures this part as a tested replacement component for the original steering sleeve on the listed vehicles. The design is validated for fit and function in the specified front steering applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1995 | Honda | Passport | — | Front | — |
| 1995 | Isuzu | Pickup | 4WD | Front | — |
| 1995 | Isuzu | Rodeo | — | Front | — |
| 1994 | Honda | Passport | — | Front | — |
| 1994 | Isuzu | Amigo | — | Front | — |
| 1994 | Isuzu | Pickup | 4WD | Front | — |
| 1994 | Isuzu | Rodeo | — | Front | — |
| 1993 | Isuzu | Amigo | — | Front | — |
| 1993 | Isuzu | Pickup | 4WD | Front | — |
| 1993 | Isuzu | Rodeo | — | Front | — |
| 1992 | Isuzu | Amigo | — | Front | — |
| 1992 | Isuzu | Pickup | 4WD | Front | — |
| 1992 | Isuzu | Rodeo | — | Front | — |
| 1991 | Isuzu | Amigo | — | Front | — |
| 1991 | Isuzu | Pickup | 4WD | Front | — |
| 1991 | Isuzu | Rodeo | — | Front | — |
| 1991 | Isuzu | Trooper | — | Front | — |
| 1990 | Isuzu | Amigo | — | Front | — |
| 1990 | Isuzu | Pickup | 4WD | Front | — |
| 1990 | Isuzu | Trooper | — | Front | — |
| 1989 | Isuzu | Amigo | — | Front | — |
| 1989 | Isuzu | Pickup | 4WD | Front | — |
| 1989 | Isuzu | Trooper | — | Front | — |
| 1988 | Isuzu | Pickup | 4WD | Front | — |
| 1988 | Isuzu | Trooper | — | Front | — |
| 1987 | Isuzu | Trooper | — | Front | — |
