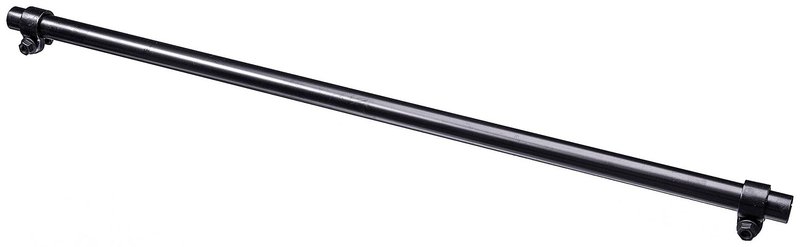

Dorman 533-134 Steering Tie Rod End Adjusting Sleeve - Front Right
Dorman 533-134 Steering Tie Rod End Adjusting Sleeve
Dorman 533-134 is a steel steering tie rod end adjusting sleeve built as a standard replacement for specific Toyota and Lexus front steering applications. It is precision-engineered and tested to match the original part’s function on the vehicles listed below.
- Steel construction with a black finish
- Counterclockwise (left) thread direction
- Female ends with fine 1.50 thread pitch
- SAE thread specification
- Mounting hardware included
- Fits front right steering linkage applications
Fitment Details
- Fits 1996-1997 Lexus LX450, front right, between Pitman Arm and Right Hand Steering Arm.
- Fits 1991-1997 Toyota Land Cruiser, front right, between Pitman Arm and Right Hand Steering Arm.
Product Description
This steering tie rod end adjusting sleeve is used in the front steering linkage to connect and adjust the tie rod assembly length during alignment service. Dorman 533-134 is a direct-fit replacement for the specified Lexus LX450 and Toyota Land Cruiser applications, with a left-hand thread, 21 mm thread diameter, 27 mm end 1 thread diameter, and 875 length. This part cross-references Delphi TA5900 for the same application.
Common Repair Uses
- Restores steering linkage adjustment when the original sleeve is worn or damaged
- Addresses looseness or play caused by thread wear in the tie rod assembly
- Helps correct alignment issues after steering component service
- Replaces a corroded or bent sleeve on front right steering hardware
- Supports proper connection between the Pitman arm and right-hand steering arm
Installation Notes and Tips
Verify left-hand thread orientation before installation and confirm the vehicle application matches the listed front right position. Because this sleeve is part of the steering adjustment system, alignment should be checked after installation to set toe correctly and confirm steering wheel centering. Compare thread diameter, pitch, and end dimensions with the removed part before assembly.
Quality Assurance
Dorman manufactures this part as a precision-engineered, tested replacement for the original steering sleeve on the listed vehicles. The design follows standard replacement requirements for the specified Toyota Land Cruiser and Lexus LX450 applications.
| Brand | Dorman |
|---|---|
| Part Number | 533-134 |
| Material | Acero |
| Material | Steel |
| Thread Direction | Counterclockwise (left) |
| Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| Length | 875 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Clamps Included | No |
| Clamps Included | Non |
| End 1 Gender | Female |
| End 1 Gender | Hembra |
| End 2 Gender | Female |
| End 2 Gender | Hembra |
| Outside Diameter | 35 |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Bolts Included | Non |
| End 1 Thread Type | Media |
| End 1 Thread Type | Medium |
| Thread Type | Fine |
| Thread Type | Fino |
| Arandela incluida | No |
| Contenidos del paquete | 1 extremo del terminal de la dirección, 2 tornillos, 2 tuercas |
| Diámetro de la rosca | 21 mm |
| Diámetro la rosca de extremo 1 | 27mm |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1997 | Lexus | LX450 | Front Right | Between Pitman Arm and Right Hand Steering Arm |
| 1997 | Toyota | Land Cruiser | Front Right | Between Pitman Arm and Right Hand Steering Arm |
| 1996 | Lexus | LX450 | Front Right | Between Pitman Arm and Right Hand Steering Arm |
| 1996 | Toyota | Land Cruiser | Front Right | Between Pitman Arm and Right Hand Steering Arm |
| 1995 | Toyota | Land Cruiser | Front Right | Between Pitman Arm and Right Hand Steering Arm |
| 1994 | Toyota | Land Cruiser | Front Right | Between Pitman Arm and Right Hand Steering Arm |
| 1993 | Toyota | Land Cruiser | Front Right | Between Pitman Arm and Right Hand Steering Arm |
| 1992 | Toyota | Land Cruiser | Front Right | Between Pitman Arm and Right Hand Steering Arm |
| 1991 | Toyota | Land Cruiser | Front Right | Between Pitman Arm and Right Hand Steering Arm |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
