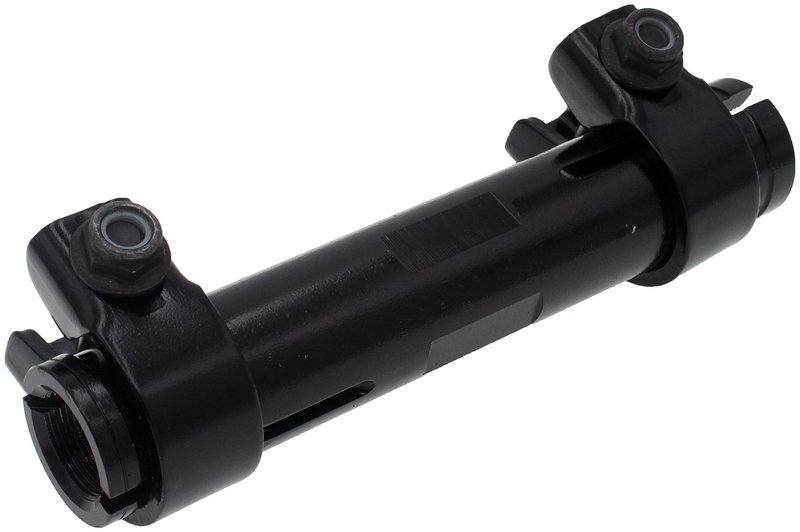

Dorman 533-137 Steering Tie Rod End Adjusting Sleeve - Left (Pitman Arm to Steering Arm)
Ram Steering Adjusting Sleeve Replacement
Dorman 533-137 is a steering tie rod end adjusting sleeve built for Ram heavy-duty trucks that use a left-side Pitman Arm to steering arm connection. It replaces the original threaded tube design with a clamp-style OE FIX solution for a more secure steering adjustment on Ram 2500, Ram 3500, and Ram 4000 applications.
- Steel construction for durable steering linkage service
- Left-hand, counterclockwise thread direction
- Metric coarse thread design with 27 mm thread diameter and 1.5 mm pitch
- Black finish
- Designed for the left side between the Pitman Arm and steering arm
- OE FIX design uses sturdy clamps instead of the factory turnbuckle-style sleeve
- Direct replacement for worn or failed factory adjusting sleeves
Detailed Product Overview
This Dorman steering tie rod end adjusting sleeve is engineered for Ram 2500, Ram 3500, and Ram 4000 trucks from 2013-2018, with fitment specific to the left side at the Pitman Arm to steering arm location. Part number 533-137 is built from steel and uses a clamp-based design to improve retention where the original threaded sleeve can loosen over time. For buyers searching for a Ram 2500 steering adjusting sleeve, Ram 3500 tie rod sleeve replacement, or a Ram 4000 left steering sleeve, this part provides a direct OE-style repair path.
This part cross-references Delphi TA6469 for the same application.
Common Problems This Part Can Address
- Loose steering adjustment at the left Pitman Arm to steering arm connection
- Unstable truck handling caused by a worn factory sleeve
- Steering linkage play from a failed threaded tube design
- Need for a more secure replacement after original sleeve wear
- Restoring proper toe adjustment on Ram heavy-duty steering systems
Installation Notes and Tips
Fits 2014-2018 Ram 2500, left (Pitman Arm to Steering Arm), improved clamp design. Fits 2013-2018 Ram 3500, left (Pitman Arm to Steering Arm), improved clamp design. Fits 2014-2018 Ram 4000, left (Pitman Arm to Steering Arm), improved clamp design. Verify thread direction, thread diameter, and steering linkage orientation before installation. Proper alignment is required after replacement to restore steering geometry and road feel. Part number 533-137 is a standard replacement component for the listed Ram applications.
Quality Assurance
Dorman designs OE FIX steering components to address known factory failure points with revised hardware and construction. Part number 533-137 follows that approach with a clamp-style sleeve intended to provide a more permanent repair than the original turnbuckle-style design.
| Brand | Dorman |
|---|---|
| Part Number | 533-137 |
| Material | Acero |
| Material | Steel |
| Thread Direction | Counterclockwise (left) |
| Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| Length | 215 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Clamps Included | No |
| Clamps Included | Non |
| End 1 Gender | Female |
| End 1 Gender | Hembra |
| End 2 Gender | Female |
| End 2 Gender | Hembra |
| Outside Diameter | 35 |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Bolts Included | Non |
| End 1 Thread Type | Media |
| End 1 Thread Type | Medium |
| Thread Type | Coarse |
| Thread Type | Grueso |
| Arandela incluida | No |
| Contenidos del paquete | 1 ajustador del terminal de la dirección |
| Contenidos del paquete | 2 pernos |
| Contenidos del paquete | 2 tuercas |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Ram | 2500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2018 | Ram | 3500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2018 | Ram | 4000 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2017 | Ram | 2500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2017 | Ram | 3500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2017 | Ram | 4000 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2016 | Ram | 2500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2016 | Ram | 3500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2016 | Ram | 4000 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2015 | Ram | 2500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2015 | Ram | 3500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2015 | Ram | 4000 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2014 | Ram | 2500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2014 | Ram | 3500 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2014 | Ram | 4000 | Left (Pitman Arm to Steering Arm) | Improved Clamp Design | |
| 2013 | Ram | 3500 | Standard Cab Pickup | Left (Pitman Arm to Steering Arm) | Improved Clamp Design |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
